Auto Level :
Used in the construction industry to establish checkpoints on the same horizontal plane. This set is complete with the actual level, a height-adjustable stand, and adjustable staff.
SPCEFICATIONS:

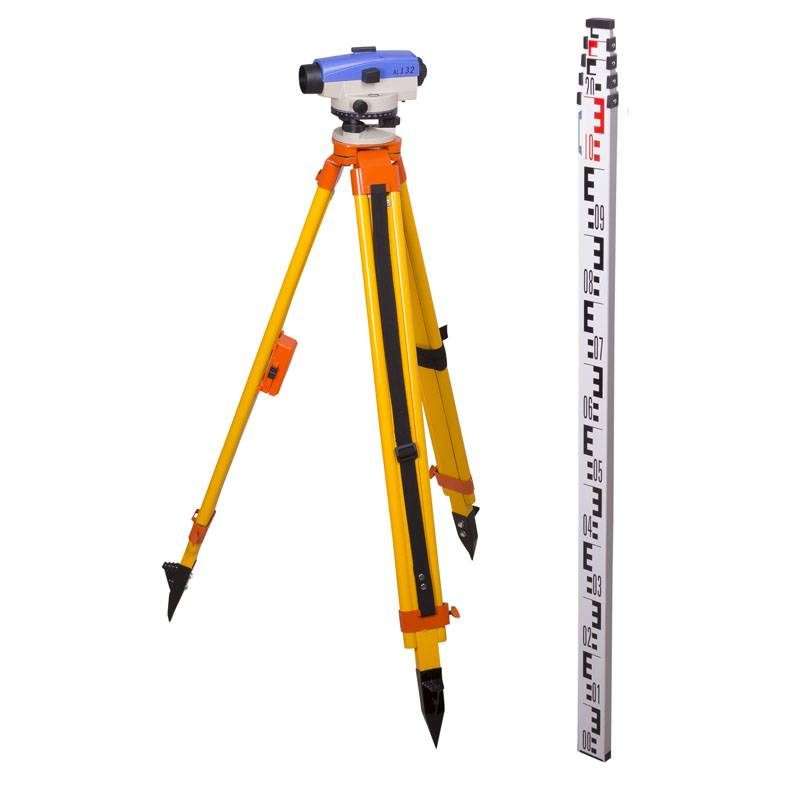

Auto Level with Tripod& Staff
| STANDARD DEVIATION PER 1 km | 1.0 mm |
| TELESCOPE IMAGE | Erect |
| MAGNIFICATION | 32x |
| SHORTEST FOCUSING DISTANCE | = 0.8 m |
| FIELD OF VIEW AT 100 m | > 2.6 m |
| MULTIPLICATION CONSTANT | 100 |
| ADDITIVE CONSTANT | 0 |
| FREE DIAMETER OF OBJECTIVE | 40 mm |
| COMPENSATER WORKING RANGE | 15 |
| SETTING ACCURACY(standard deviation) | < 0.4 |
| CIRCULAR BUBBLE | 8'/2 mm |
| HORIZONTAL CIRCLE GRADUATION | 400 gon |
| INTERVAL | 1 or 1 gon |
| ADOPTION(Base Plate) | Flat and Dome |
| CENTRAL FIXING SCREW | W 5/8 (55) |
| STORAGE TEMPERATURE | -40C to +75C |
| OPERATING TEMPERATURE | -30C to +50C |
| WATER AND DUST RESISTANCE | IP55 |
| WEIGHT WITHOUT CONTAINER | 2.0 kg (just the level head) |
| FULLY EXTENDED HEIGHT | 5 m |
| SECTION | 4/5 |
