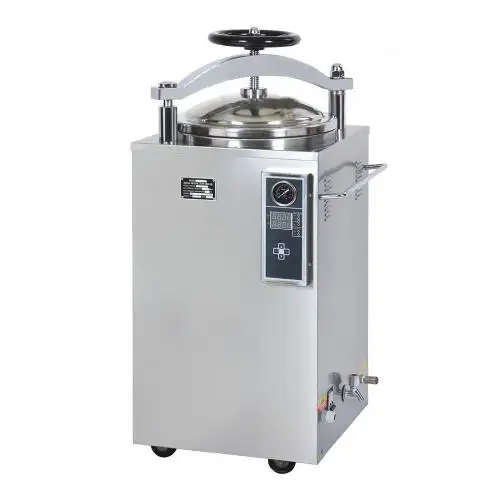

Autoclave Vertical Top Loading
Autoclave Vertical Top Loading
Autoclaves are ideal equipments for clinics, scientific research institutes and other organisations to sterilise surgical instruments, fabrics, glasses, culture media etc.
Characteristics
Fully stainless steel structure.
Auto discharge the cool air, and steam discharge automatically after sterilization.
Automatically shut off with beep reminding after sterilization.
Hand wheel type of quickopen door structure.
Over temperature & over pressure autoprotection.
Easy to operate, safe and reliable.
Door safety lock system.
MODEL | LS-35HD | LS-50HD | LS-75HD | LS-100HD |
Technical Data | ||||
Chamber volume | 35L 318×450mm | 50L 340×550mm | 75L 400×600mm | 100L 440×650mm |
Working pressure | 0.22Mpa | |||
Working temperature | 134 | |||
Max. working pressure | 0.23Mpa | |||
Heat average | ±1 | |||
Timer range | 0-99min or 0-99hour59min | |||
Temperature adjust range | 105-134 | |||
Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | |
Overall dimension(mm) | 470×450×1020 | 520×500×1150 | 550×530×1180 | 580×560×1290 |
Transport dimension(mm) | 570×570×1180 | 610×610×1290 | 650×650×1330 | 680×680×1450 |
G.W/ N.W | 70Kg/63Kg | 82Kg/74Kg | 100Kg/93Kg | 110Kg/85Kg |
