Autolink AL301 - VEHICLES - AL301

The AutoLink AL301 is the most powerful, affordable and easiest-to-use tool for DIY customers. It enables the user to read and clear diagnostic trouble codes(DTCs) from the on-board computers of 1996 and newer OBD II compliant vehicles.

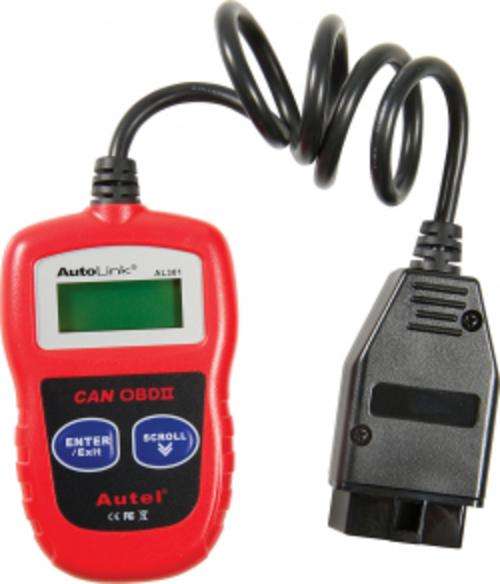

Autolink AL301

The AutoLink AL301 is the most powerful, affordable and easiest-to-use tool for DIY customers. It enables the user to read and clear diagnostic trouble codes(DTCs) from the on-board computers of 1996 and newer OBD II compliant vehicles. It also provides VIN info and performs the task of (I/M) Inspection maintenance readiness testing by displaying the I/M readiness monitor status.

Features:

Compatible with ALL 1996 and newer vehicles (OBD II & CAN)
Supports multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
Reads and displays DTCs
Erases DTCs
Reads and displays I/M monitor status
Reads and displays VIN
Resets and turns off the MIL
Easy to use with one plug-in
Free CD software with over 7000 DTC definitions

Specifications:

Display = Backlit LCD, 2 lines, 8 characters each line
Operating Temperature = 0 to 50°C (32 to 122 F°)
Storage Temperature = -20 to 70°C (-4 to 158 F°)
External Power = DC12V provided via the vehicle’s battery
Length\Width\Height = 110 mm (4.33”)\69 mm (2.72”)\18 mm (0.71”)
NW = 0.153kg (0.337b)

Accessories:

CD
User's Manual
