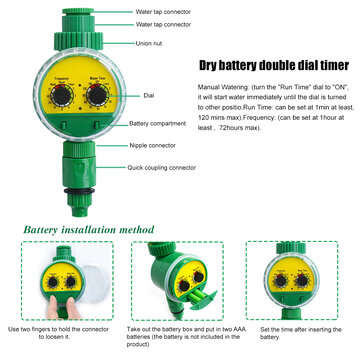

Feature: 1. The outlet can be connected with 4/7 pipes, 9/12 pipes, water distributors, PE pipes, garden pipes 2. Simple, reliable, water-proof 3. Manual watering available. 4. Can be attached to 3/4``(19mm) tap or faucet. 5. Once program set, it will repeat the cycles until new settings. 6. Frequency: (can be set at 1hour at least ,? 72hours max). 7. Run Time: can be set at 1min at least, 120 mins max). 8. Manual Watering: (turn the Run Time dial to ON, it will start water immediately until the dial is turned to other positio.
Specifications: Working water pressure: 1-5kg Quiescent current: 5??A Working temperature: 0-60a?? Working flow: 456-1432L/h Output control method: Pulse output Rated power consumption: <1W Waterproof rating: IP65 All waterproof with cover, good customer review Battery operated (LR03 2XAAA 1.5V Alkaline battery)(Not included)

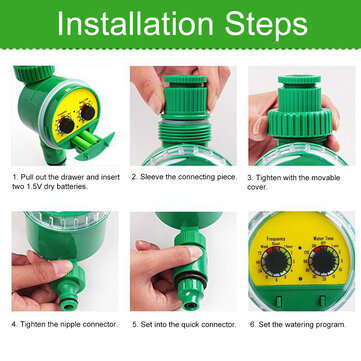

1. Irrigation program setting: (any operation will be performed within 5 seconds) Step 1: Select the watering frequency by dialing the dial on the left Step 2: Select the watering time on the right Example: Set to water for 5 minutes every hour (1) First dial the right to select the watering time: 5 minutes; (2) Select the watering frequency from the dial code on the left: 1 hour gear, when the first hour gear is dialed, the indicator light flashes twice, and the water starts to flow for 5 minutes. After 5 minutes, the water stops, and the water is re-irrigated every hour. 5 minutes. 2. Reselect the irrigation frequency: When I want to change the frequency, I first select the time and then select the frequency range. Every time I change the frequency range, I reset the internal timing. 3. Temporary irrigation: Dial the code dial on the left to a??Reseta??, dial the dial on the right to a??Ona?? to start watering, and dial to a??Offa?? to close. 4. Program protection: The time interval must be greater than the watering time, otherwise the machine will not start watering at the time, and this function will also stop when watering. For example: if the frequency is 1 hour and the watering time is 90 minutes, the unsuccessful water will not be discharged. If you start to choose 1 hour to water for 1 minute, when you are watering, the watering time is set to 90 minutes and it will immediately stop watering. The setting is unsuccessful.
Package Included: 1 x Automatic Electronic Water Tap Timer Garden Irrigation Controller
Details Pictures:
