The protector can intelligently identify leakage and overvoltage and undervoltage, it will automatic cutoff the power supplys, if the fault has been eliminated, the protector will automatically reclose and turn on the power. LCD display, voltage, current, leakage current can be displayed at the same interface, do not need to switch. It can be manually opened or closed with a click, simple and convenient.
Features:

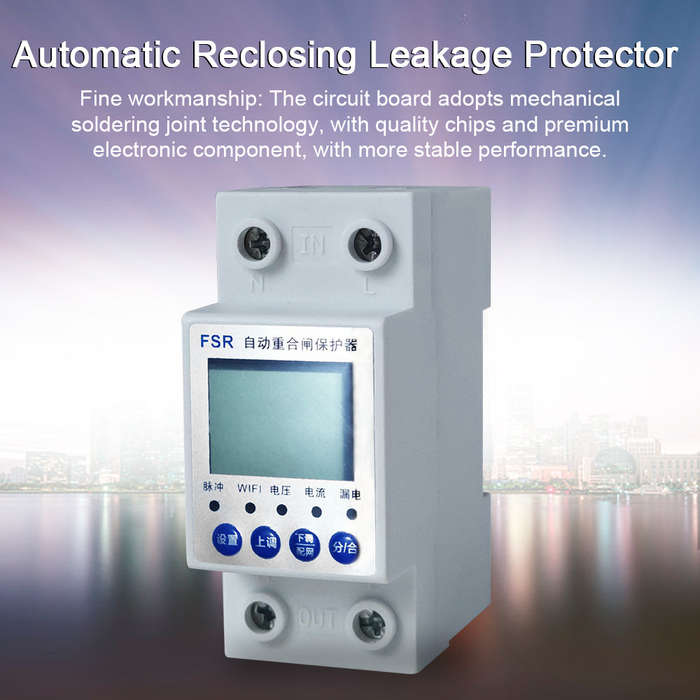

Fine workmanship: The circuit board adopts mechanical soldering joint technology, with quality chips and premium electronic component, with more stable performance.

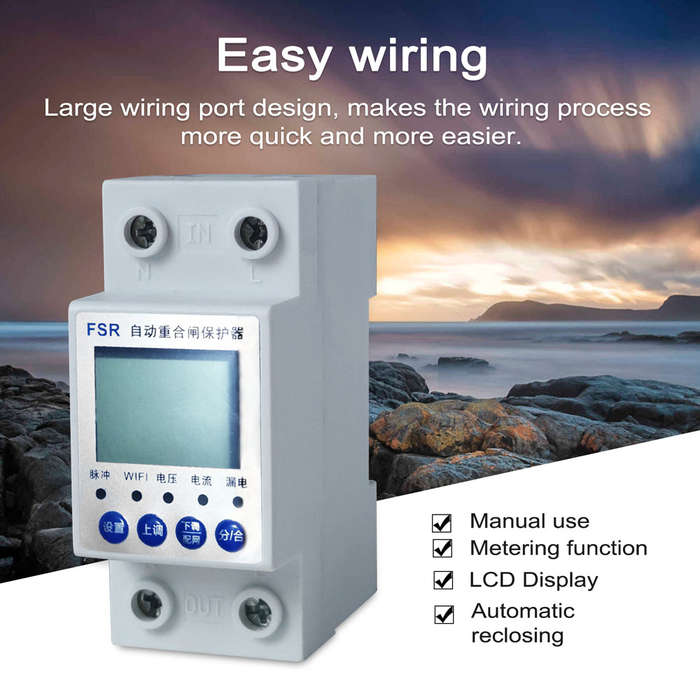

Easy wiring: Large wiring port design, makes the wiring process more quick and more easier.
Manual use: It can be manually opened or closed with a click, simple and convenient.
Metering function: measuring active function and storing data.
LCD Display function: voltage, current, leakage current can be displayed at the same interface, do not need to switch.
Automatic reclosing characteristics: The protector can intelligently identify leakage and overvoltage and under voltage, it will automatic cutoff the power supplys, if the fault has been eliminated, the protector will automatically reclose and turn on the power.
Multiple protections: overload, over voltage, under voltage, and delay are protected.
Wide applications: Recommended for use with high-power products which are prone to leakage behavior, such as electric heaters, ovens, water heaters, refrigerators, air conditioners, and etc..
Specifications:

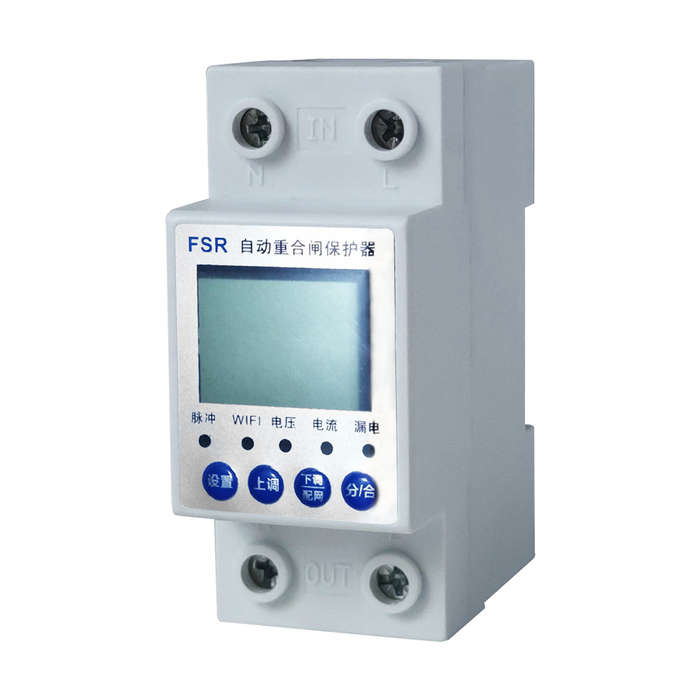

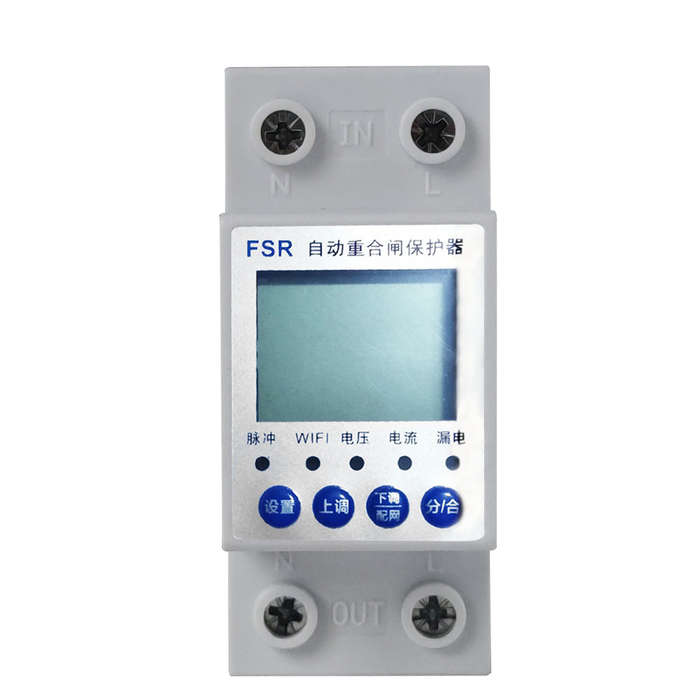

Name: Automatic Reclosing Leakage Protector
Material: plastics
Rated voltage: AC220Vￂﾠ
Operation voltage ranges: AC80V-400V (single phase)
Rated frequency: 50/60Hzￂﾠￂﾠￂﾠￂﾠￂﾠￂﾠￂﾠￂﾠ
Electric current (>A)setting ranges:1-63A
Overvoltage (>U) setting ranges: 250-300V (adjustable)
Under voltage(Electric leakage protections: 10-100mA (This feature can be turned off)
Error: 2%ￂﾠￂﾠￂﾠￂﾠ
>U andReset/Start delay: 5s-90s
Voltage measurement accuracy: 1% (Not exceeding 1% of the overall ranges)
Rated insulation voltage: 400Vￂﾠￂﾠ
Output contact: 1NOￂﾠￂﾠￂﾠￂﾠ
Altitude: ￢ﾉﾤ2000m
Operating temperature: -30ￂﾰC^70ￂﾰCￂﾠￂﾠ
Power display ranges:0-99999.9kw/h

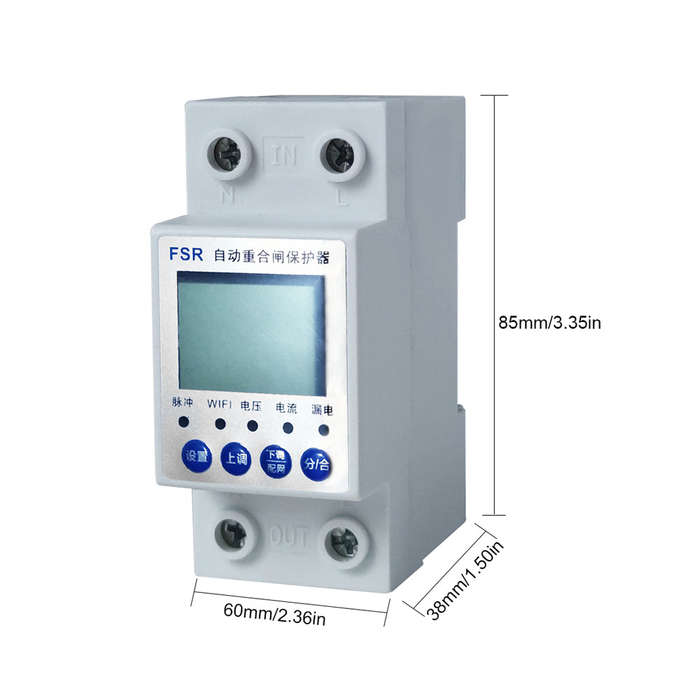

Item size: 85 * 60 * 38mm / 3.35 * 2.36 * 1.50in
Package size: 89 * 63 * 40mm / 3.50 * 2.48 * 1.57in
Package weight: 120g / 4.23ounce
Packing List:
1 * Automatic Reclosing Leakage Protector
