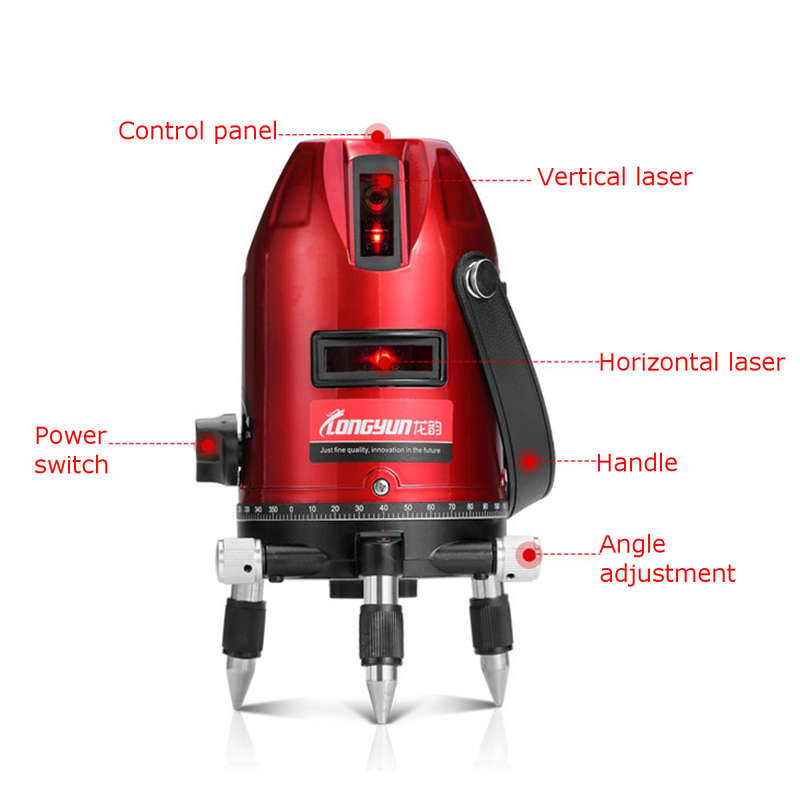

1.Model: 01

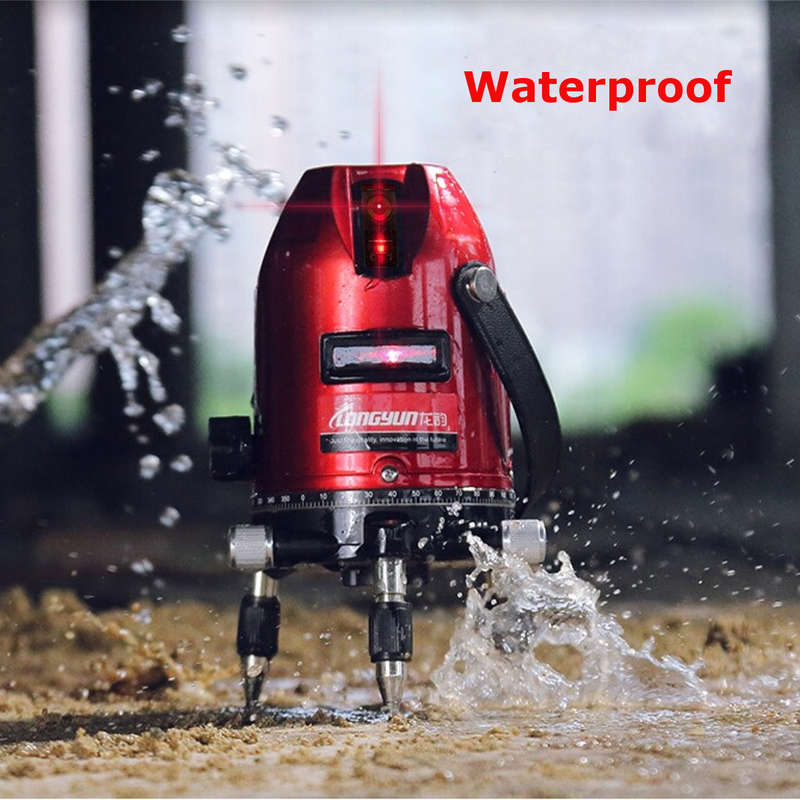

2.Waterproof professional Laser Level (Automatic leveling in the range of ±3°)
3.Automatic self leveling mechanism. Audio warning when beyond auto leveling range.
4.Adjust feet
5.360 rotating base with fine tuning knob
6.5 laser lines (4 vertical and 1 horizontal),6 points
7.Power:AC 110-240v / 3 x 1.5V AA Dry Battery( Does not include battery),
8.Laser power< 5mW (Class IIIA)
9.Wavelength: 635nm
10.Vertical and Horizontal Precision: 1mm /8m
11.Line width< 2mm / 5 meters
12.Launch angle> 120 degree
13.Cartesian precision: 1mm /3m
14.Working distance:. Indoor working radius of about 15m , outdoor 10m (without Receiver). When using an outdoor receiver operating radius about 70m.
15.Continuous working time: about 20 hours by Battery, or long time by AV Power
16.Working temperature: -10 Degree C - 45 degree C
17.Special features: can be used with outdoor detectors ( outdoor model )
How to use:
1.Set the instrument on the tripod or a stable surface, adjust the instrument. If the instrument is too tilted, out of range (3 degrees), the laser tube will automatically turn off (or if audible alarm)
2.Switch knob clockwise to open the instrument, the instrument top green indicator light, while emitting a laser beam
3.Turn the instrument, the laser beam toward goals
4.Gently adjust knob, find work orientation
5.When work is over, turn the switch knob counterclockwise, turn off the instrument
6.With light point designed outdoor environments, provide convenience for the construction
Note to User:
1, How to get a slash: Long press the "Outdoor" button for 2 seconds.
2, Four operating modes (H/VH/2VH/4VH) :
a, Open the Power, Press the "H" Button, H modes;
b, then Press the "V" Button one time, VH modes;
c, then Press the "V" Button the sencond time, 2VH modes;
d, then Press the "V" Button the third time, 4VH modes.
3, Press "outdoor" Button when using outdoor Environment. outdoor 10m (without Receiver). When using an outdoor receiver operating radius about 70m.
