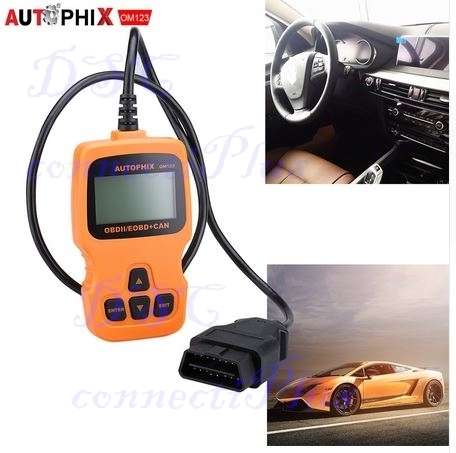

AUTOPHIX OM123 OBD2 / EOBD Auto Diagnostic Scanner Engine Fault Code Reader Automotive Tool (Orange)..!
Product Information
BRIEF INTRODUCTION
The hand-held OBD2 ScanTool makes it a easy way to save time and money on repairs
Find out what's wrong prior to repairing and verify a repair
The OM123 offers peace of mind for anyone who has ever worried about car maintenance
Easy-to-use device which fits inside a purse or glove compartment, empowers drivers to monitor their vehicle's health.
HIGHLIGHTS
Function 1: Reads & clears Error code, reads live data stream
Function 2: Displays I/M readiness status
Function 3: Detects OBD-II freeze frame information
Function 4: Retrieves vehicle information (VIN, CID, CVN)
Function 5: Built-in OBD-II DTC lookup library
Function 6: No batteries needed, powered via detachable OBDII cable
Support Multi-Languages:
English, German, French, Spanish, Finnish, Dutch, Russian and Portuguese.
Support Multi Car Models:
American Car List
Works on obd2 car from 2001 to now
Fit for Chrysler, Ford, GM, Jeep
European Car List
Works on OBD2 car from 2003 to now
Fit for Alfa Romeo, SAAB, Acura, Opel, Audi, Seat, Peugeot, Renault
Fit for Bentley, Skoda, Mercedes Benz, Land Rover
Fit for BMW, Vauxhall, Citroen, Volvo, Fiat, VW, Jaguar
Asian Car List
Japanese cars - works on OBD2 car from 2005 to now
Chinese cars - works on OBD2 car from 2009 to now
Korean cars - works on OBD2 car from 2009 to now
Fit for KIA, Isuzu, Honda, Mitsubishi, Hyundai, Dacia, Lexus, Mazda
Fit for Nissan, Subaru, Suzuki, Toyota, Daewoo, Daihatsu
PS: This product is developed based on OBDII standard, so it is only suitable for cars with 16pin
connector and 12V voltage meeting the OBDII protocol.
MAIN FUNCTIONS
Reads & clears trouble code: Generic codes, pending codes and manufacturer's specific codes
Reads live data stream
Displays I/M readiness status
Detects OBD-II Freeze Frame Information
Retrieves vehicle information (VIN, CID, CVN)
Built-in OBD-II DTC lookup library
Plug-and-play interface and highly reliable

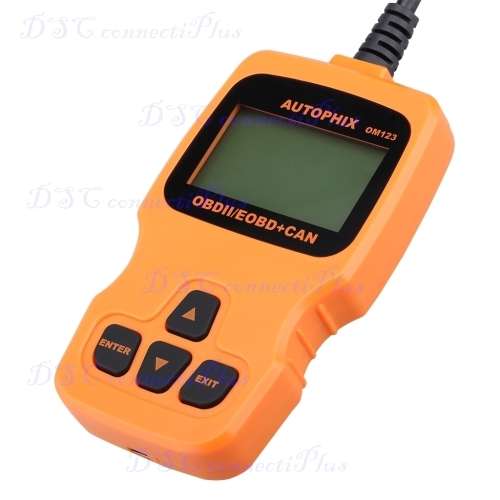

Large easy-to-read back-lit LCD screen

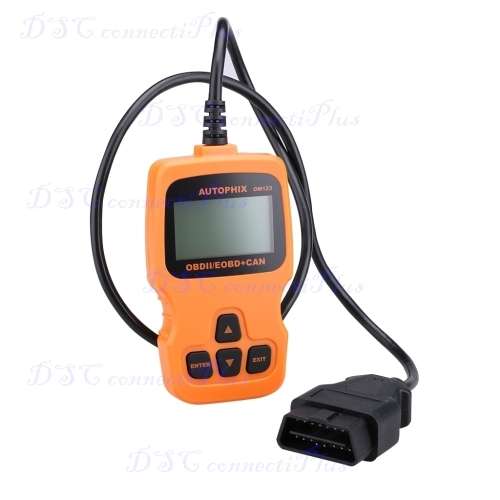

No batteries needed-powered via detachable OBDII cable
Small in size and conveniently fits in your palm
Safely communicates with the on-board computer
Support ALL OBD2 Protocols: Including CAN, KWP2000, SAE J1850 PWM, SAE J1850 VPW and IOS9141
CE, FCC, RoHS certification
GENERAL SPECS
Brand Name: AUTOPHIX OBDMATE OM123
Item Type: Code Readers & Scan Tools
Hardware Version: Newest
Software Update: No
Software Version: Newest v1.5
Special Features: OBD2 Auto Diagnostic Scanner code reader
Function: OBD2 EOBD CAN Hand-held Engine ECM Code Reader
Support Vehicles: Support all Rus/Eur/Aisa Cars After 2000, American after 1996
Display: Back-lit, 128 × 64 pixel display with contrast adjustment
Operating Temperature: 0~60'C (32~140'F)
Storage Temperature: -20~70'C (-4~158'F)
External Power: 8.0 to 18.0V power provided via vehicle battery
Dimensions: L 125mm (5.00") W 70mm (2.80") H 22mm (0.90")
Weight: NW: 0.23kg (0.51lb), GW: 0.32kg (0.74lb)
PACKAGING DETAILS
Unit Type: Piece
Package Weight: 0.350kg (0.77lb.)
Package Size: 20 x 10 x 10cm (7.87 x 3.94 x 3.94in)
Packing List: 1x OM123 OBD2 Engine Code Reader (retail packaging)
FAQ
1. Q: What is OBD2?
A: The OBD2 Scan Tool is designed to work on all OBD2 compliant vehicle. OBD2 was adopted as part of a
government mandate to lower vehicles emissions. This sophisticated program in the vehicle’s main computer
system is designed to detect failures in a range of systems, and can be accessed thought a universal OBD2
Port. For all OBD systems, if a problem is found, the computer turns on the “CHECK ENGINE” light to warn
the driver and sets a Diagnostic Trouble Code (DTC) to identify where the problem occurred. A special
diagnostic tool, such as this obd2 scan tool, is required to retrieve these codes, which consumers and
professionals use as a starting point for repairs.
