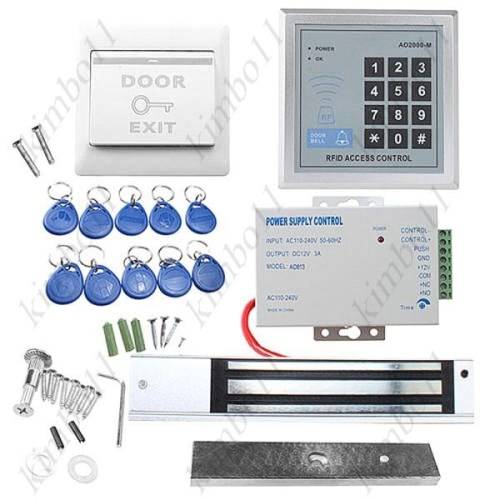

Autumn special!! Electric Door Lock Magnetic Access Control ID Card Password System

Electric Door Lock Magnetic Access Control ID Card Password System

Product Features:

• State-of-art and Powerful
• This RFID Proximity access controller using proximity system is one of the modern access control systems. The state-of-the-art CPU and integrated circuit techniques are applied to keep all the data from loss due to power failure. It is powerful and can open the door using proximity cards, passwords, or the hybrid.
• Exquisite and Convenient
• The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed.
• Various applications
• This product offers a method for controlling access safely and automatically, qualifying it as an ideal equipment for businesses, offices, factories, and communities.

Safety Type:	Access Control
Work Current:	500mA
Power Supply:	DC 12V

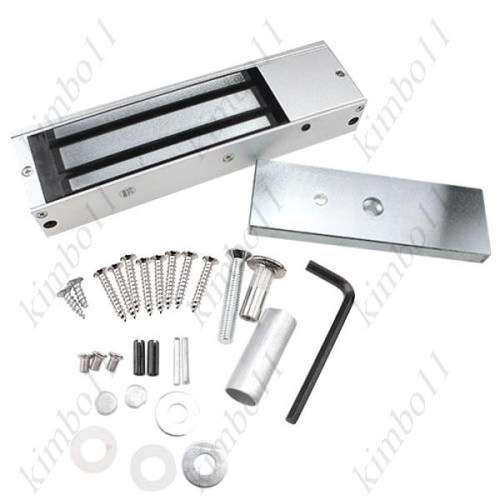

Electric Magnetic lock Specifications:
Armature plate:	180Lx60.8Wx14.8H(mm).
Holding Force:	500kg(1100lbs).
Mode:	NC (locked whilst power supply is operating), fail safe mode.
Voltage:	DC12V.
Current Draw:	0.5A.
Safety function:	Built-in voltage spike suppressor.
Opening Mode:	90 degree swinging door.
Suitable For:	Wooden Door, Glass Door, Metal Door, Fire Proof Door, etc.

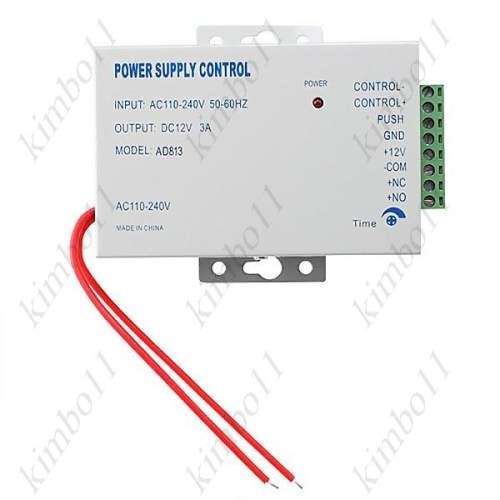

Power Supply Specifications:
AC input:	Standard AC100V-240V 50-60HZ 36W
DC output:	Stabilizator DC12V/ 3 A
Automatic protection function:	It will protect automatically and no voltage output when short circuit happening in the circumferential circuit
Note:	Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Advantages:	Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only +-1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply)
Control System keypad Specifications:
Power Supply:	DC:voltage 12V+-10% Current < 0.1A.
Ambient temperature:	0°C-60°C.
Relative humidity:	20%—80%.
Memory capacity:	500 user cards or 50 door opening passwords.
Working distance:	5-15CM.
Card Type:	EM or EM compatible cards.
Push Release Button Exit Switch Specifications:
Current Rating:	3A@36VDC Max.
Suitable for Door:	Hollow Door.
Operating temp:	10~+55°C(14-131F).
Operating Humidity:	0-95% (non- condensing).
Panel Material:	Fireproof Material.
Net Weight:	1470 g / 51.85 oz
Size:	245 x 165 x 70 mm / 9.555 x 6.435 x 2.73 inch
