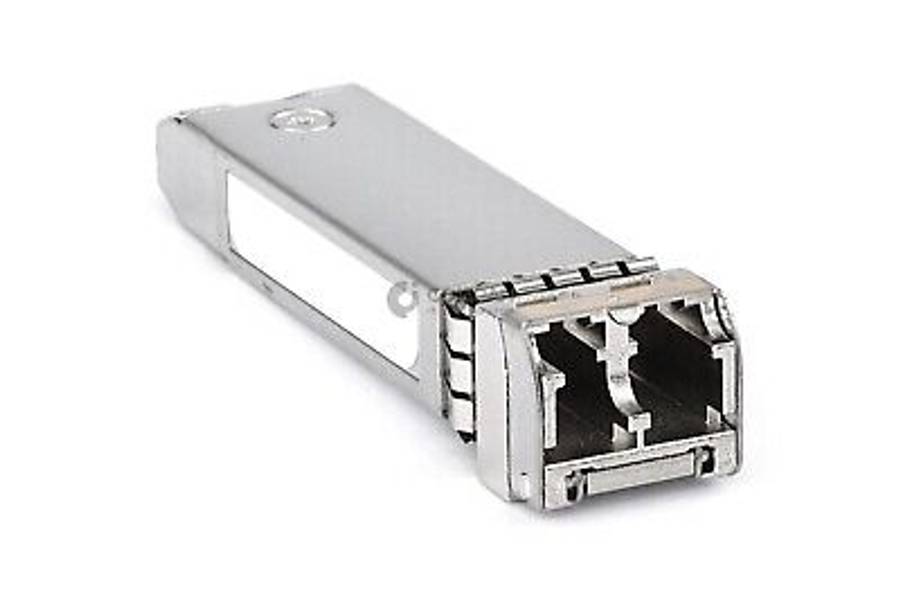

The Avaya FTLX8571D3BNL-N2 is a high-performance 10GBASE-SR/SW optical transceiver designed for short-range data communication over multimode fiber (MMF). Operating at 850nm, it supports up to 300m on OM3 and 400m on OM4 fiber, ensuring fast and reliable connectivity in enterprise and data center environments.
Engineered for efficiency, this SFP+ module provides low power consumption (1W), supports digital diagnostics monitoring (DDM/DOM), and is fully compliant with IEEE 802.3ae and SFP+ MSA standards. Its compact hot-swappable design ensures easy deployment and compatibility with Avaya networking equipment.
Key Features & Benefits
High-Speed Performance Provides 10.3125Gbps data rate for seamless high-bandwidth applications.
Short-Reach Capability Supports up to 400m over OM4 MMF, ideal for short-range network links.
Energy Efficient Low power consumption (1W) reduces operating costs in data-intensive environments.
Standards Compliant Compatible with IEEE 802.3ae, SFF-8431/8432, and MSA standards for interoperability.
Ideal Uses
Perfect for data centers requiring high-speed short-reach 10G links.
Reliable for enterprise backbone networks and high-volume data transfer.
Suitable for cloud infrastructure requiring stable 10G connectivity.
Effective in service provider environments supporting 10G Ethernet and CPRI/eCPRI applications.
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Avaya
Model: FTLX8571D3BNL-N2
Form Factor: SFP+
Type: 10GBASE-SR/SW Optical Transceiver
Max Data Rate: 10.3125Gbps
Wavelength: 850nm
Fiber Type: MMF (50/125µm)
Connector: Duplex LC
Distance: 300m (OM3), 400m (OM4)
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.3 to -1 dBm
Receiver Sensitivity: < -11.1 dBm
Power Budget: 3.8 dB
Receiver Overload: -1 dBm
Power Consumption: 1W
Extinction Ratio: >3 dB
DDM/DOM: Supported
Modulation: NRZ
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Warranty: 3 Month Carry-in Warranty
What's in the Box: 1 × Avaya FTLX8571D3BNL-N2 SFP+ Transceiver Module
