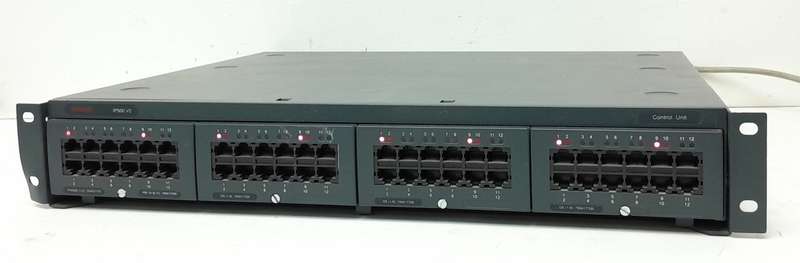

The Avaya IP500 V2 Control Unit is a highly scalable PBX phone system core ideal for small to medium-sized business telephony. Designed for flexible mounting and future expansion, this control unit supports up to 384 extensions and up to 4 trunk interface cards, offering a modular solution for unified voice communication.
With its support for multiple locales, conferencing capabilities, voicemail channels, and voice compression features, it is a robust platform for businesses requiring reliable, enterprise-grade IP telephony management.
Key Features
Modular PBX System: Offers 4 expansion slots for IP500 base cards with front-accessible ports for extensions and trunks.
Scalable Extension Support: Handles up to 384 extensions and 4 trunk cards, allowing for business growth.
Integrated Conferencing: Supports up to 128 conference participants across multiple conferences with silence suppression for large groups.
Flexible Installation Options: Can be wall-mounted, rack-mounted, or placed free-standing using optional kits.
Global Locale Support: Compatible with deployment in over 40 countries, including South Africa, UK, US, and EU regions.
Ideal Uses
Business PBX Deployment: Ideal for scalable office voice solutions with multi-site call handling.
Telecom Resellers and Integrators: Suitable for resale or integration into small to medium enterprise infrastructure.
Call Centres or Reception Management: Supports trunk interfaces and extension routing for inbound/outbound communication.
Voicemail and Conference Systems: Robust channel support for built-in voicemail and call conferencing services.
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Model: Avaya IP Office IP500 V2 Control Unit
Extension Capacity: Up to 384 extensions
Conference Capacity: Up to 128 parties (64 max per conference with silence suppression for >10 participants)
Trunk Card Support: Up to 4 trunk cards
Voice Compression: Up to 148 channels via VCM and combo cards
Voicemail Support: Up to 250 voicemail/recording channels on Primary server (Secondary server also supports 250 in Select deployments)
Locale Support: Fully supported in South Africa, UK, US, and over 40 global markets
Power Supply: Internal PSU
Mounting Options: Free-standing, rack-mountable, or wall-mountable (mounting kits not included)
Memory: 2048 KB maximum configuration file size
Slots: 4 x IP500 Base Card Slots (Slot 14 left to right)
Warranty: 3 Month Carry-in Warranty

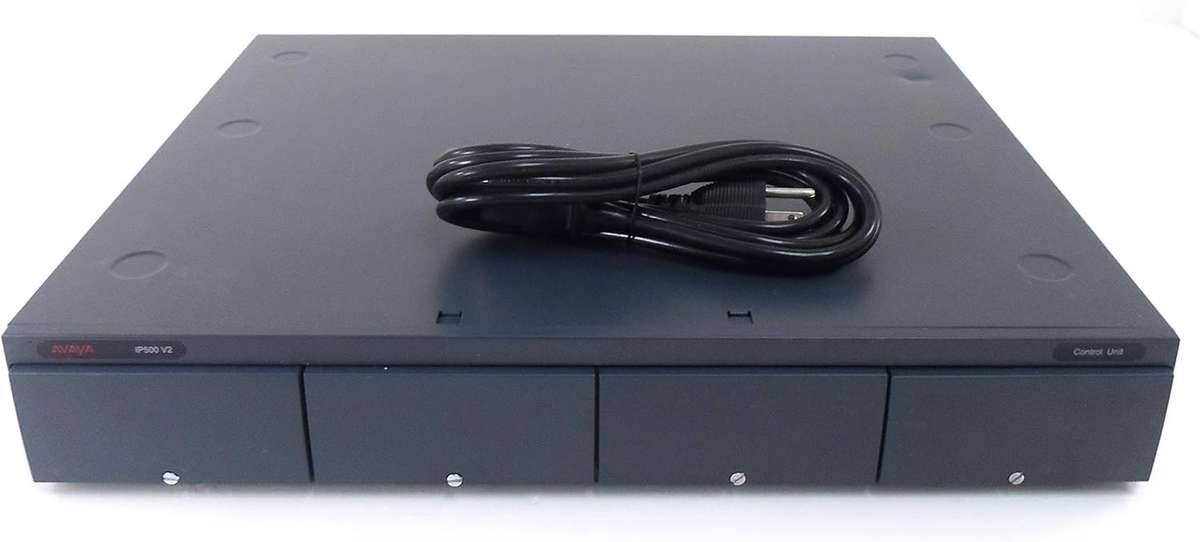

In the Box: Avaya IP500 V2 Control Unit, Power Cable
