AVer CAM520 Pro 3 PTZ Conference Camera

Professional USB 3.1 Conferencing Camera for Mid-to-Large Rooms

Elevate your video conferencing experience with the AVer CAM520 Pro3, a versatile and advanced PTZ camera designed for mid-to-large rooms. This cutting-edge solution offers a 36X total zoom lens, enhanced AVer SmartFrame, Preset Framing, and a Sony WDR Sensor, ensuring exceptional video quality and flexibility.

Master the Details

Capture every detail with precision using the CAM520 Pro3's 36X total zoom lens, 12X optical lens, and 24X lossless zoom. Enjoy a wide 80° diagonal field of view, flexible pan and tilt controls, and outstanding clarity for remote participants.

Accurately Capture Attendees

Experience the power of Smart Composition, an embedded AI function that automatically frames each participant's face or body perfectly. This click-to-play feature requires no software setup and allows for seamless transitions between headshots and half-body views.

*Works for up to 9 people

More Efficiency and Security

Enhance meeting efficiency and safety with upgraded AVer SmartFrame, which automatically focuses on participants from up to 7 meters away, even when wearing masks. Preset Framing mode efficiently follows presenters through preset areas, making manual control unnecessary.

HDMI and 3-Way Output

Enjoy diverse display options with simultaneous 1080p/60fps presentations via HDMI and USB 3.1 streaming or RTSP/RTMP H.264 broadcasting. Create seamless hybrid meeting experiences for your business.

Enterprise-Grade Imaging

Experience lifelike meetings in high-contrast backlight environments with the CAM520 Pro3's Sony sensor and advanced image-tuning algorithm. AVer Virtual Streaming technology allows for virtual meetings through a single Ethernet connection, while PoE+ streamlines setup and reduces installation costs.

Specifications:

Camera

*Please use PTZApp 2 to set up 36X zoom.

• Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions, providing ultra FHD image quality.
• Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
• SmartFrame for automatic FOV adjustment to fit all participants
• Smart Composition function offers great visibility for individual participant in the meeting room
• Innovative Preset Framing: Follow presenter based on preset areas
• WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Zoom: 36X* total zoom (12X optical zoom)
• Field of view(D/H/V): 80.5°/72.8°/44.1°
• Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)
• Lens F#: 1.6 (wide) ~ 2.8 (tele)
• Mirror, flip, AE, white balance: auto/manual override via PTZApp 2
• Minimum focus distance: 1m
• Standard tripod screw holes and Kensington slot
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

Motorized Pan & Tilt Movement

• Pan: ±170°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (via remote control)
• Fast and quiet pan & tilt movement

Video Format

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocol: RTSP, RTMP

Control

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
• PTZApp 2

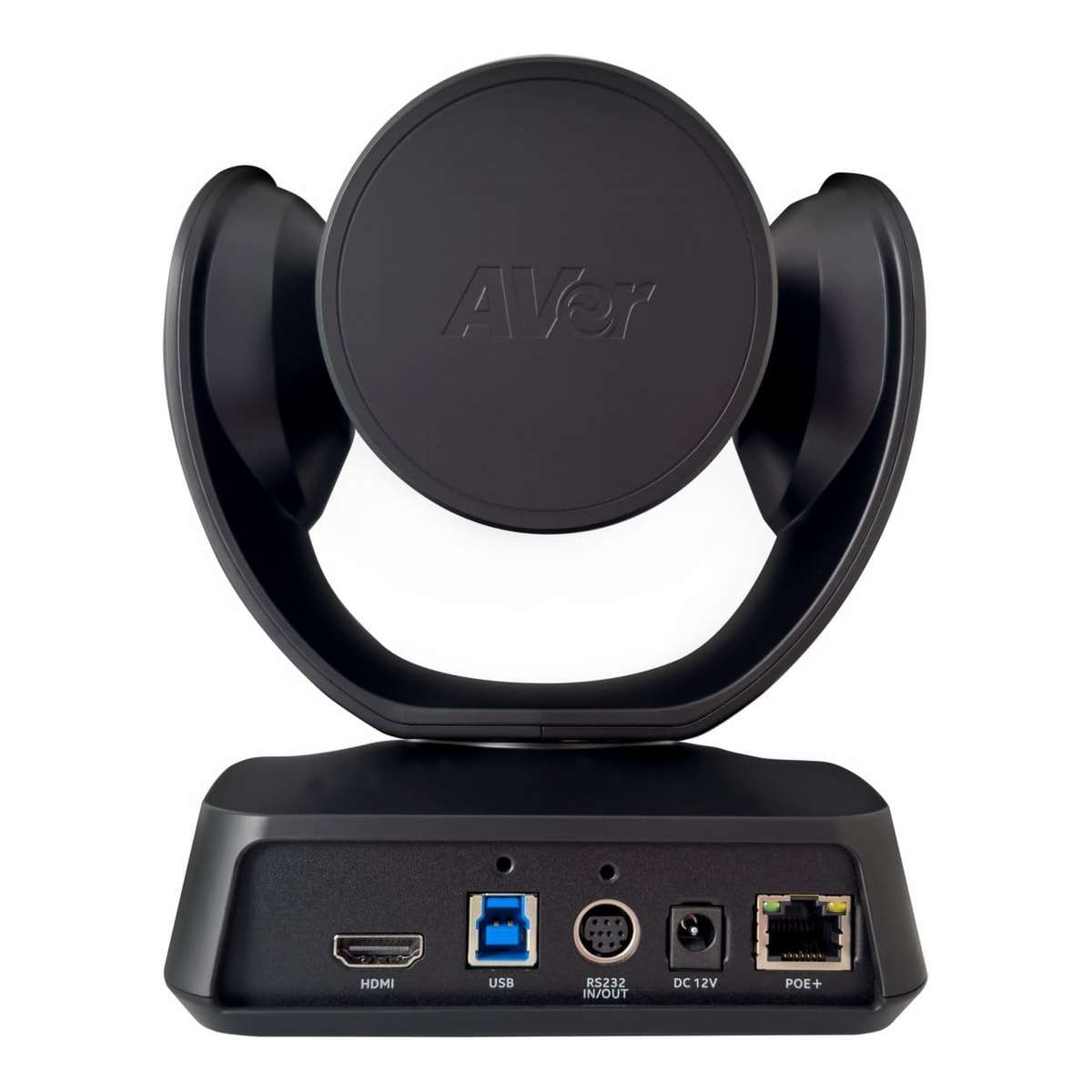

Connectivity

• 12V/2A power adaptor
• Mini DIN9 for RS232 in & out connection (VISCA, control panel and camera daisy chain)
• USB 3.1 type-B
• IP (RJ45)
• HDMI 1.4

USB

* UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.

• 3.1 Gen 1 Type-B, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

Mount

• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

System Requirements

• Windows® 7/10/11
• Mac OS X 10.14 or later
• Google Chromebox 3 version 94.0.4606.114 or later

PC Hardware Requirement

• 3.2 GHz Intel® Core™ i5-4460 processor
• 8 GB RAM or more
• USB 3.1 port , backward compatible with USB2.0 port

Environmental Data

Operation temperature: 0 ~ 40°C

Operation humidity: 20% ~ 80%

Storage temperature: -20 ~ 60°C

Storage humidity: 20% ~ 80%

Dimensions

Package dimensions: 256 x 256 x 274 mm

Package weight: 3.335 kg

Camera: 182 x 142.7 x 153 mm/1.47 kg

Remote control: 200 x 50 x 21 mm/0.09 kg
