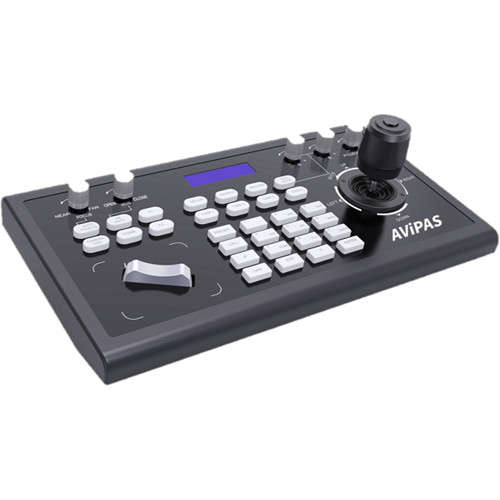

AViPAS AV-3104IP 4D Joystick PTZ Controller

The AViPAS AV-3104IP 4D Joystick PTZ Controller offers joystick and button control for your PTZ cameras, and controls the speed of your pan, tilt, and zoom.

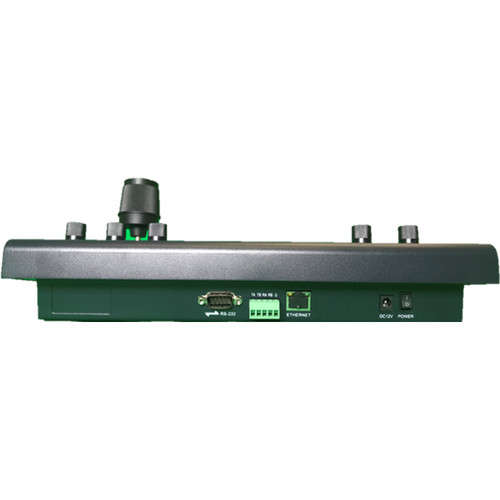

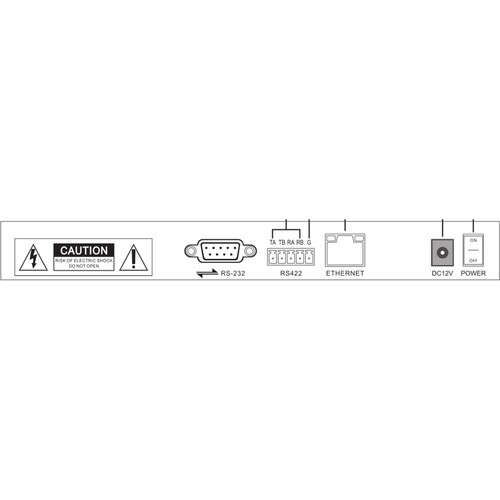

The AViPAS AV-3104IP 4D Joystick PTZ Controller offers joystick and button control for your PTZ cameras with support for VISCA, VISCA IP, Pelco-P, Pelco-D, and ONVIF protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.

The Controller also offers presets including gain, iris, focus, red and blue gain, and speed control settings to control the finer settings on the PTZ camera. The AV-3104IP 4D features two IP control modes using VISCA IP and ONIF and two serial control modes using RS-422 and RS-232. The unit comes with a 12 VDC power supply or it can be powered using Power-over-Ethernet (PoE).

Features

• 4D joystick and button control, LCD display
• Control speed of pan/tilt and zoom in/out
• IP, RS-232, RS-422, and RS-485 communication
• VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols
• Power-over-Ethernet (PoE) support

Key Features

• 4D Pan / Tilt / Zoom / Lock PTZ Control
• IP & Serial RS-232/422/485 Communication
• 2 x IP & 2 x Serial Control Modes
• VISCA/VISCA IP/Pelco-P & D/ONVIF Support
• Power-over-Ethernet (PoE) Support
• 12 VDC Power Supply Included

In the Box

• AViPAS AV-3104IP 4D Joystick PTZ Controller
• 12 VDC Power Adapter
• Limited 2-Year Warranty
• User Manual
