AVR ATMEGA16 Minimum System Board ATmega32 Development Board for ISP ATTiny 51 Board

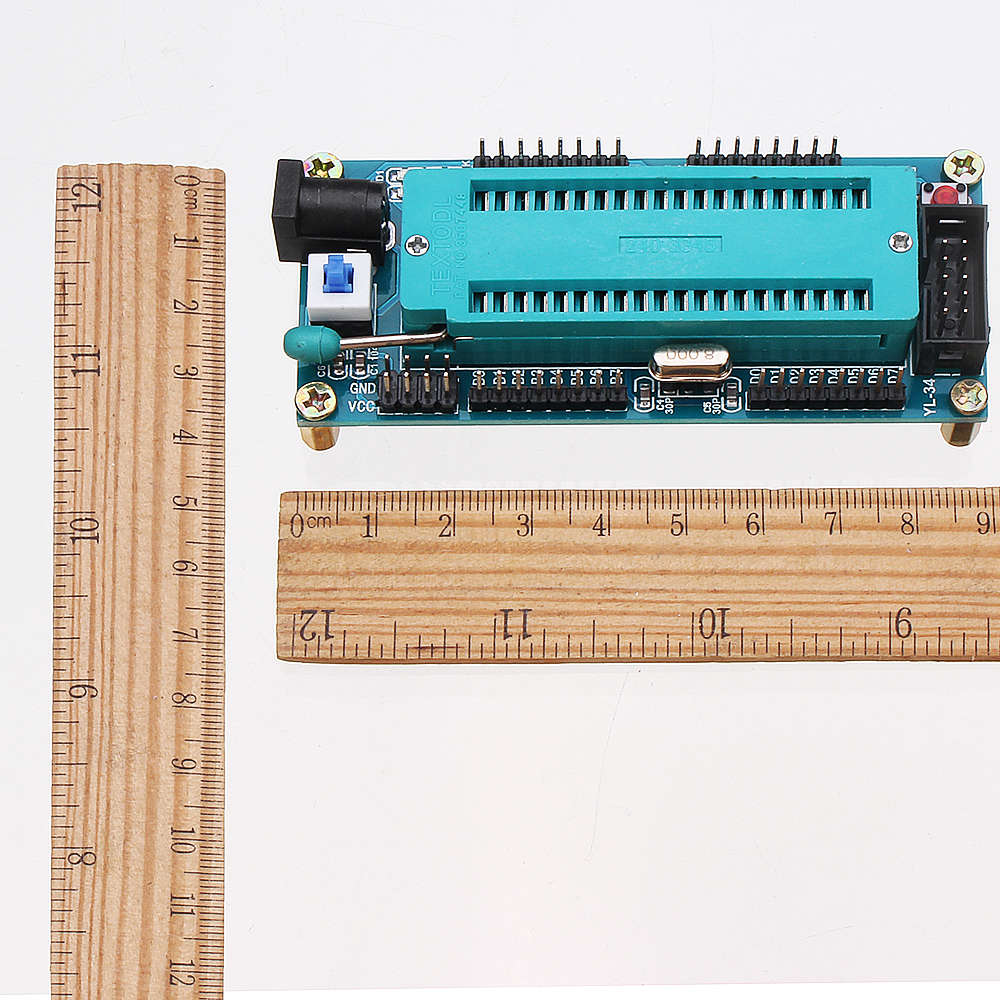

Specifications: 1. 32 I/O pin all the leads. 2. Classic ATmega16 minimum system, eliminating the hassle of soldering. 3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal. 4. Support chips: ATmega16/ATmega32 and chip which pin-compatible. 5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply). 6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm). 7. Expand outside 4 channel VCC, GND. 8. Reset: Power-on reset and reset button. 9. Power LED (D1) and the program run indicator (D2). 10. Standard ISP download interface. 11. Size: 88mmx38mm/3.47'x1.49'(inch) (approx) Features: 1. This programmer is based on Thomas Fischl's USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegant. The USB interface is achieved by using an atmega processor and the rest is done in firmware. 2. With 500mA over-current protection self-recovery fuse, and complete protection of expensive computer motherboard designed for notebook computers, special two 3.6V regulator, a perfect match to level, get rid of the instability of hardware hidden! Target board power mode jumper settings. 3. The well-configured firmware, the speed of the unique adaptive technology, stability and obtain the best balance between speed! Supports firmware upgrade unlimited.
Schematic: mega16 Note:
This minimum system development board without AVR chip, you need purchase for chip in additional!!!! List of Supported Chips: 51 Series: AT89S51, AT89S52,, AT89S53, AT89S8252 AVR Series: ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V) , ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B), etc.
3.3V / 5V USBASP USBISP AVR Programmer Downloader ATMEGA8 ATMEGA128 With Download Cable
Description:
1. The onboard ATMega8 chip (L)
2. The onboard over - current protection
3. The target board support 5 V and 3.3 V power supply
Package included:

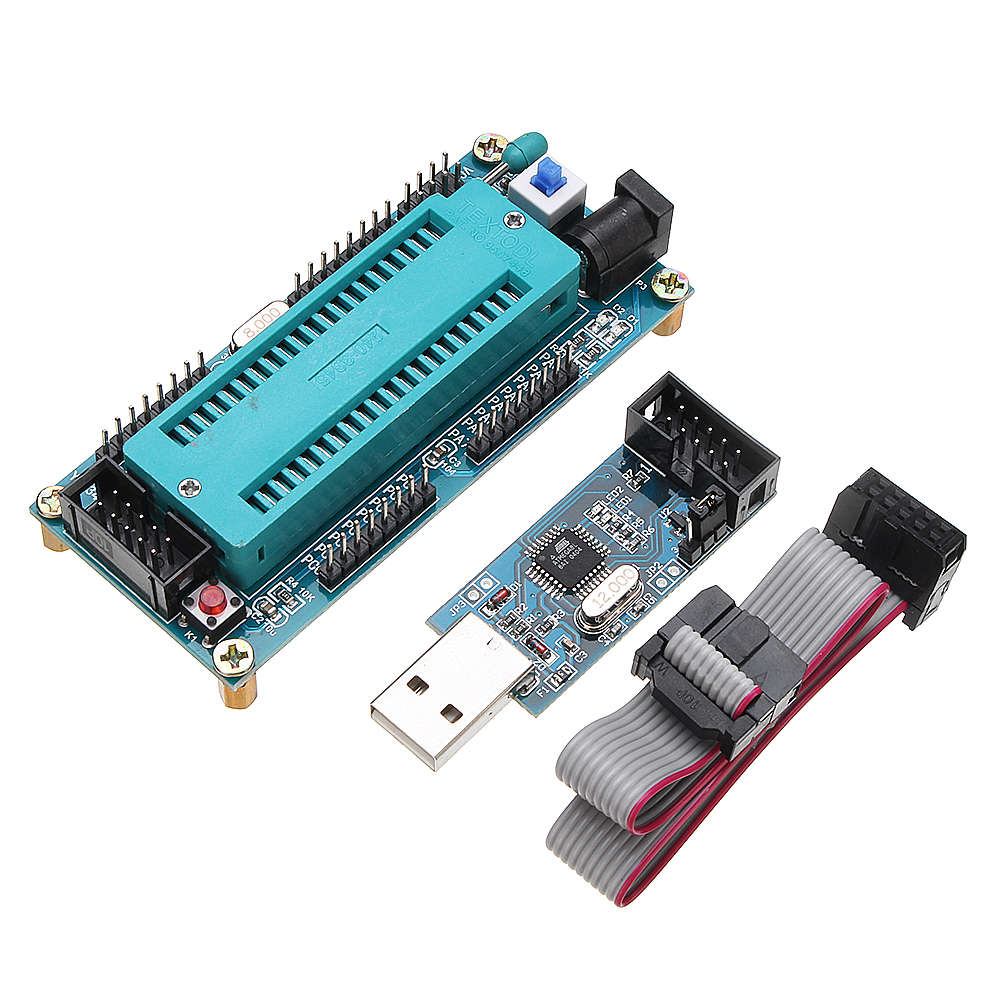

1 x AVR ATMEGA16 Minimum System Board ATmega32
1 x USBASP USBISP AVR downloader with download cable
|
