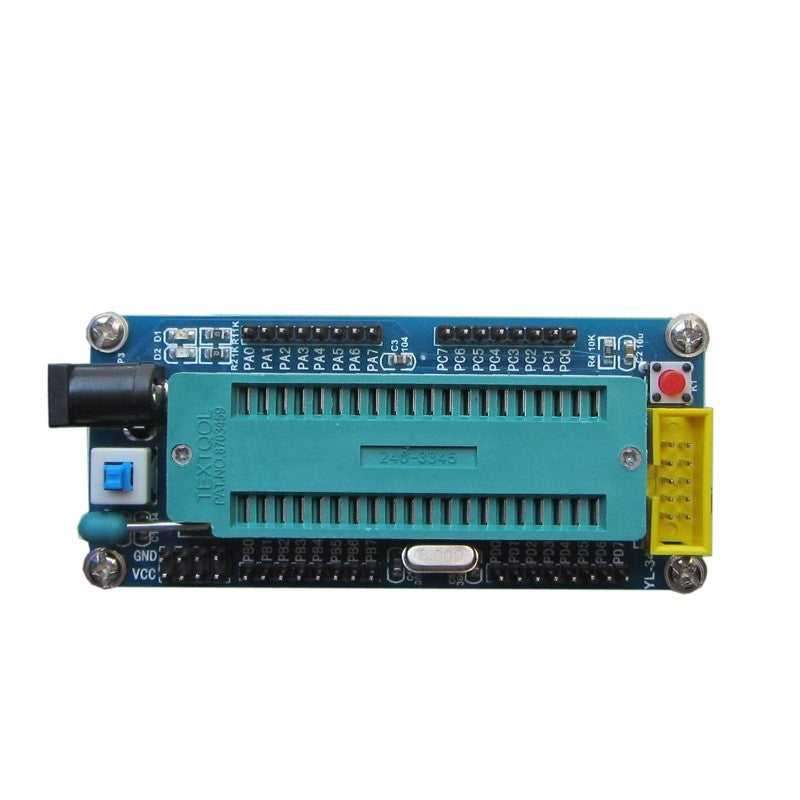

AVR ATmega16 Minimum System Development module

The AVR ATmega16 Minimum System Development Module is perfect when you have to program a lot of chips. It eliminates the need to struggle with getting the chip in or out of a standard socket. It is also great to use permanently, because of the lack of external components eating away at battery life. It includes an 8Mhz crystal in a socket which you can pull out and replace with a 16Mhz crystal if you wish to run it at 16Mhz.

AVR ATmega16 Minimum System Development Module Specs:

• 32 total I/O pins available.
• The classic minimum system eliminates the hassle of soldering.
• Easily interchange crystal values by pulling out and plugging in a new one. (supplied with 8Mhz Crystal).
• Support chips ATmega16/ATmega32.
• DC power socket available(not regulated)
• 4 sets of power input or output pins are available.
• Onboard reset button.
• Power LED (D1) and a programmable LED (D2).
• A standard ISP download interface

Pinout:

DataSheet
