Avr Se350 Automatic Voltage Regulator Generator Voltage Regulator

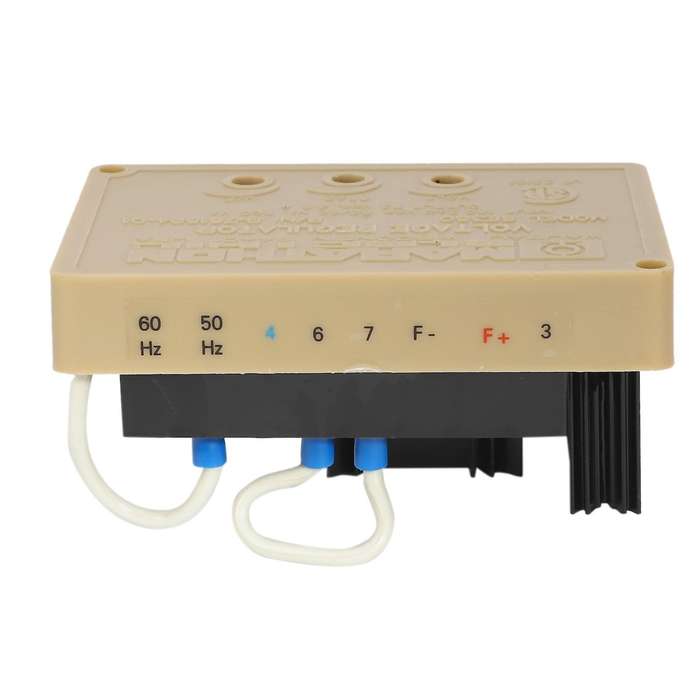

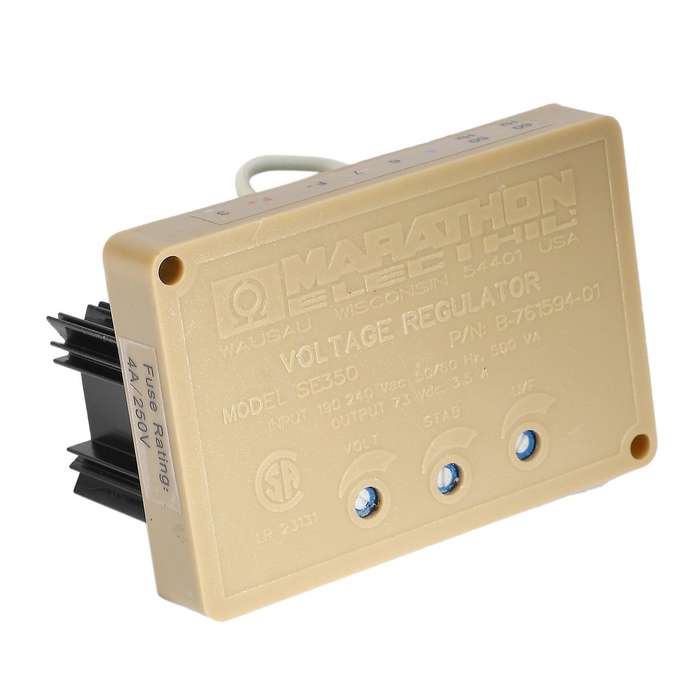

Model Number: SE350Condition: NEWPerformance: ExcellentSE350 Voltage regulator is an encapsulated electronic voltage regulator which controls the output of a brushless AC generator by regulating the current into the exciter field.Frequency compensation: Built-in engine rpm drop,the output voltage drop of the frequency circuit protection.Stability adjustV/HZ roll-off frequency selectionPreliminary set-upExciter power circuitSensing/power input circuitTechnical parameters: The establishment of voltage: when greater than the residual magnetism 4V25Hz,it will automatically build pressure. Input power: AC190 ~ 240V 50/60Hz. Output: 75V DC voltage. Current 3.5A (consecutive). Adjusted rate: better than 1%Sensing & Power Input : 190-240 VacBurden : 500VAOutput Power-Continuous : 73 Vda at 3.5 Adc(255w)Output Power-Forcing(240 Vac Input Power) : 105 Vdc at 5 Adc(525w)Regulation : 1.00%Remote Voltage Adjustment Range : +/-10% with 2000 ohm rheostat +/-5% with 1000 ohm rheostat Frequency Compensation : Adjustable Roll off ferquency : 54-61 Hz for 60 Hz45-51 Hz for 50 HzOperation : Weight6.5 ozPower Dissipation : 8 watts maximumcolour:Photo ColorMaterial:plasticsize:100*65*49mmPackage Contents:1*Generator regulatorOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
