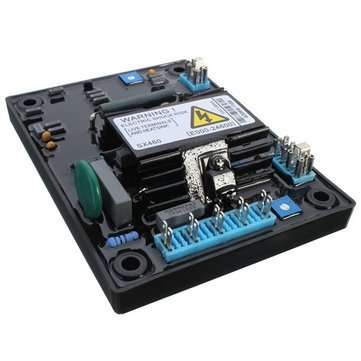

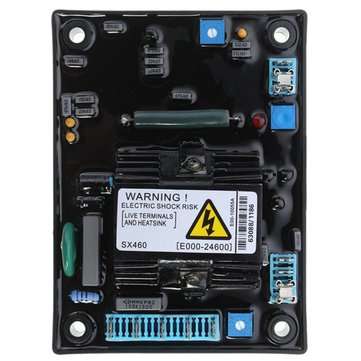

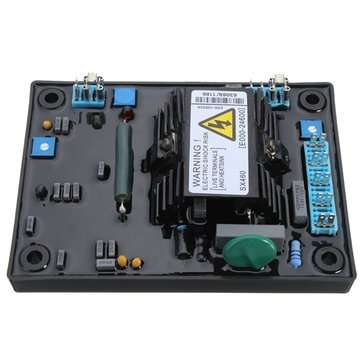

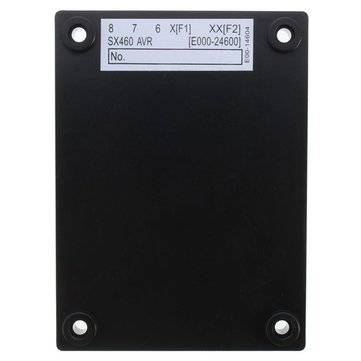

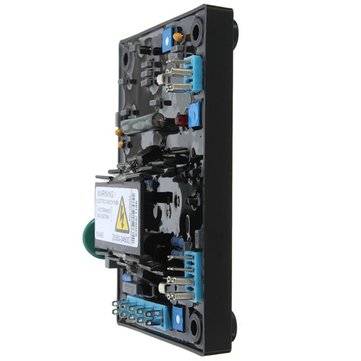

AVR SX460 Automatic Voltage Volt Regulator Replacement For Stamford Generator

AVR SX460 Automatic Voltage Volt Regulator Replacement For Stamford Generator

Here is the !!!
? Feature:
? SX460 is a half-wave phase-controlled thyristor type automatic voltage (AVR) and froms part of the excitation system for a bruch-less generator. In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals. Postive voltage build up from residual leves is ensured by the use of efficient semiconductors in the power circuitry of the AVR. ? Specification:

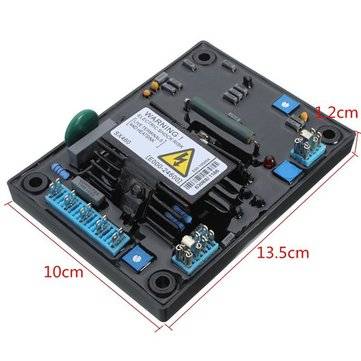

? INPUT? Voltage: 220V AC ?Jumper selectable? Frequency: 50-60Hz nominal Phase: 1 ? OUTPUT Voltage: max 90V DC at 207V AC Input? Current: continuous 4 A DC Resistance: 15 ohms minimum ? Size:13.5 x 10 x 1.2cm (only Panel) Regulation: ±1.0% Typical system response: AVR response: 20ms Filed current to 90%: ?80ms Machine volts to 97%: 300ms ? Package included:

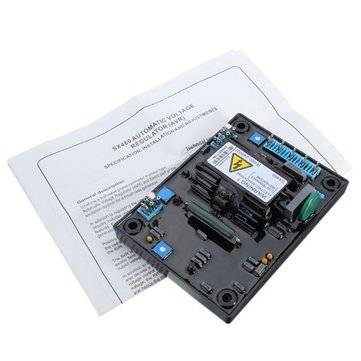

? 1 x Automatic Voltage Regulator AVR SX460 for Generator ?(With English manual)
?
