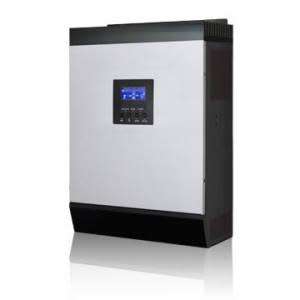

AXPERT MKS PLUS 3000VA / 2400W Inverter / 48V DC - Was only used about a month for testing. Complete in box.

 INPUT

• Rated Power: 3000VA/2400W


• Voltage: 230 VAC


• Selectable Voltage Range: 170-280 VAC (For Personal Computers) to 90-280 VAC (For Home Appliances)


• Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 230VAC ± 5%


• Surge Power: 6000VA


• Efficiency (Peak): 93%


• Transfer Time: 10 ms (For Personal Computers) & ) 20 ms (For Home Appliances)


• Waveform: Pure sine wave

BATTERY

• Battery Voltage: 48 VDC


• Floating Charge Voltage: 54 VDC


• Overcharge Protection: 62 VDC

SOLAR CHARGER & AC CHARGER

• Maximum PV Array Power: 3000 W


• MPPT Range @ Operating Voltage: 60 VDC ~ 115 VDC


• Maximum PV Array Open Circuit Voltage: 145 VDC


• Maximum Solar Charge Current: 60A


• Maximum AC Charge Current: 15A


• Maximum Efficiency: 98%


• Standby Power Consumption: 2W

PHYSICAL

• Dimension, D X W X H (mm): 140 x 295 x 479


• Net Weight (kgs): 11.5
