Please note: An additional hardwire kit is required for parking mode
Features
Built-in WiFi
Connect to the 'AZDOME App' on iOS or Android devices.
Supports video playback, download, and management.
Allows sharing travel landscapes and moments with friends and family.

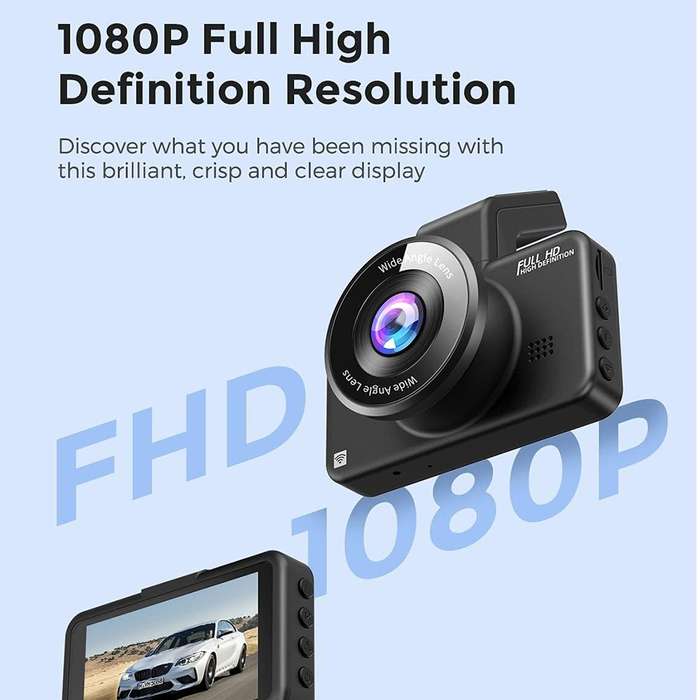

FHD 1080P Dash Cam
Front dash cam (M17) records FHD 1920x1080P/30 fps video.
Captures license plates and road signs.
150° Wide Angle
The wide-angle lens provides an extensive field of view.
Minimizes blind spots and increases the chances of capturing important details.
ADAS Collision Avoidance
Advanced Driver Assistance Systems improve driving safety.
Provides real-time assistance and warnings.
Includes 2 ADAS alerts: Forward collision and lane departure.
G Sensor Loop Recording
Locks emergency video in the event of a collision.
Automatically overwrites old unlocked video when the memory card is full.
G-sensor and loop recording function prevent important files from being overwritten.
Super Night Vision
F1.8 large aperture and 6-glass wide-angle lens.
Uses professional-level Full HD GC2053 CMOS image sensor with Mstar 8336 chip.
Captures fine details even at night.
24 Hours Parking Monitor
Automatically records important events when impact is detected.
24H parking mode for peace of mind.
Additional hardwire kit required for parking mode
Specifications
Screen Size: 3.0 Inch IPS LCD Screen
Lens: 150° wide-angle lens
Lens Aperture: F=2.0
Video Code: H.264, MOV
Video Resolution: 1080P 1920x1080/720P 1280x720
Video Effective Pixel: 2 Mega Pixels
Photo Format: JPG
Photo Resolution: 2M/5M/8M/12M
Photo Effective Pixel: 12 Mega Pixels
Language: English, French, Deutsch, Spanish, Italian, Japanese, Russian, Dutch, Polish, Chinese
Memory Card: Micro SD Card Class 10 or Higher, Max Support 64 GB (Micro SD Card NOT Included — Required for camera operation)
G-sensor: Built-in 3-axis Impact Accelerometer Gravitational Sensor to lock & protect current video.
Frequency: 60 Hz, 50 Hz
Loop Recording: Support
Parking Mode: Support
Fatigue Driving Reminder: Support
Time Stamp (Year/Month/Day/Hour/Minute): Support
Record Audio: Support
Mini-USB Port: Charging
Power Interface: 5V 1.5A
Battery: Built-in Li-ion Battery 200mAh
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Working Humidity: 10% ~ 90%
Additional Features
One-press emergency locked evidence.
Adjustable lens for a broader field of view.
Parking monitor with anti-theft features.
Time-lapse video option.
AZDOME APP Usage
Live stream video within 10 feet of the camera.
Access recorded videos, download them, and watch them.
Track location on Google Maps while watching videos.
Share videos on various social media platforms.
Conveniently adjust settings through the AZDOME App.
What's in the box
1x M17 1080P Front Dash Cam
1x 3.5m Power Supply Cable with Car Charger
1x Installation Tools Kit
1x Electrostatic Sticker
1x AZDOME M17 User Manual
