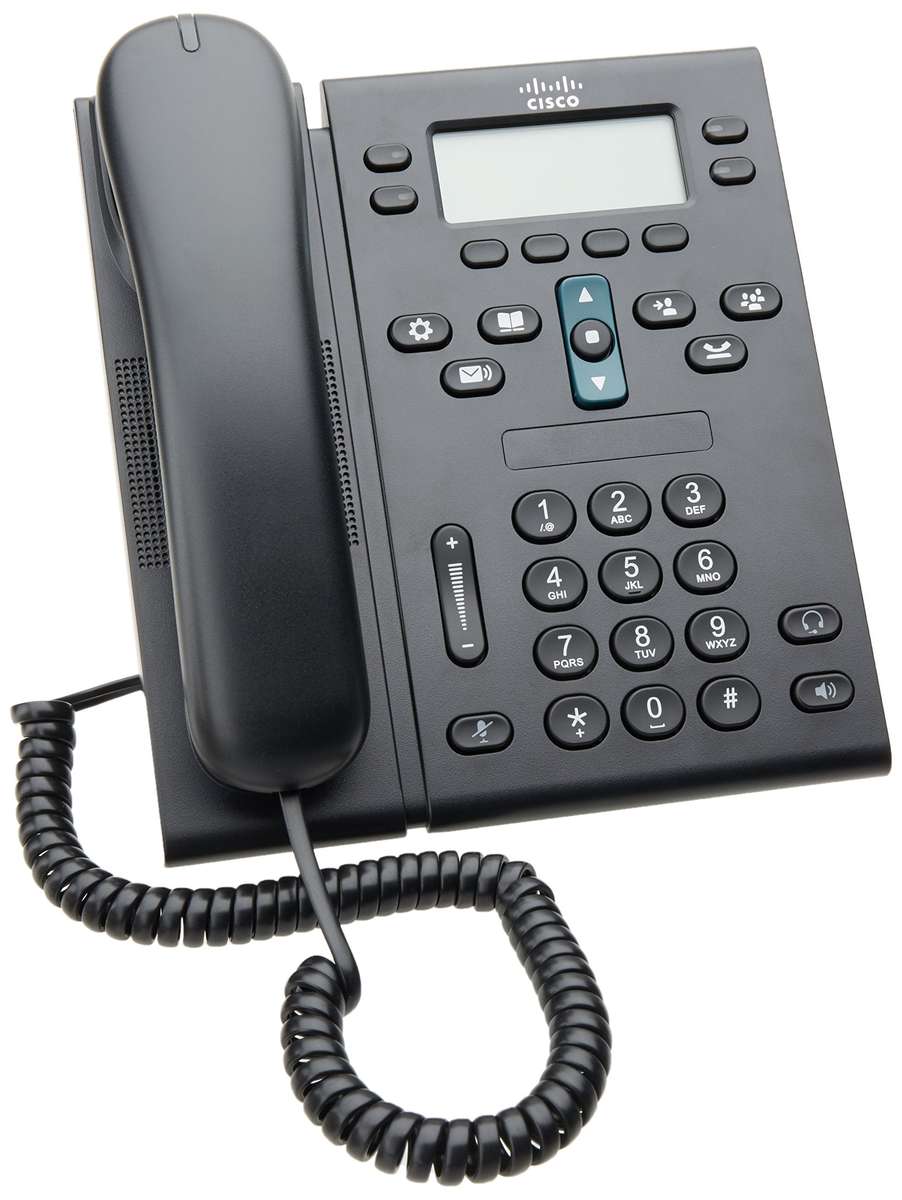

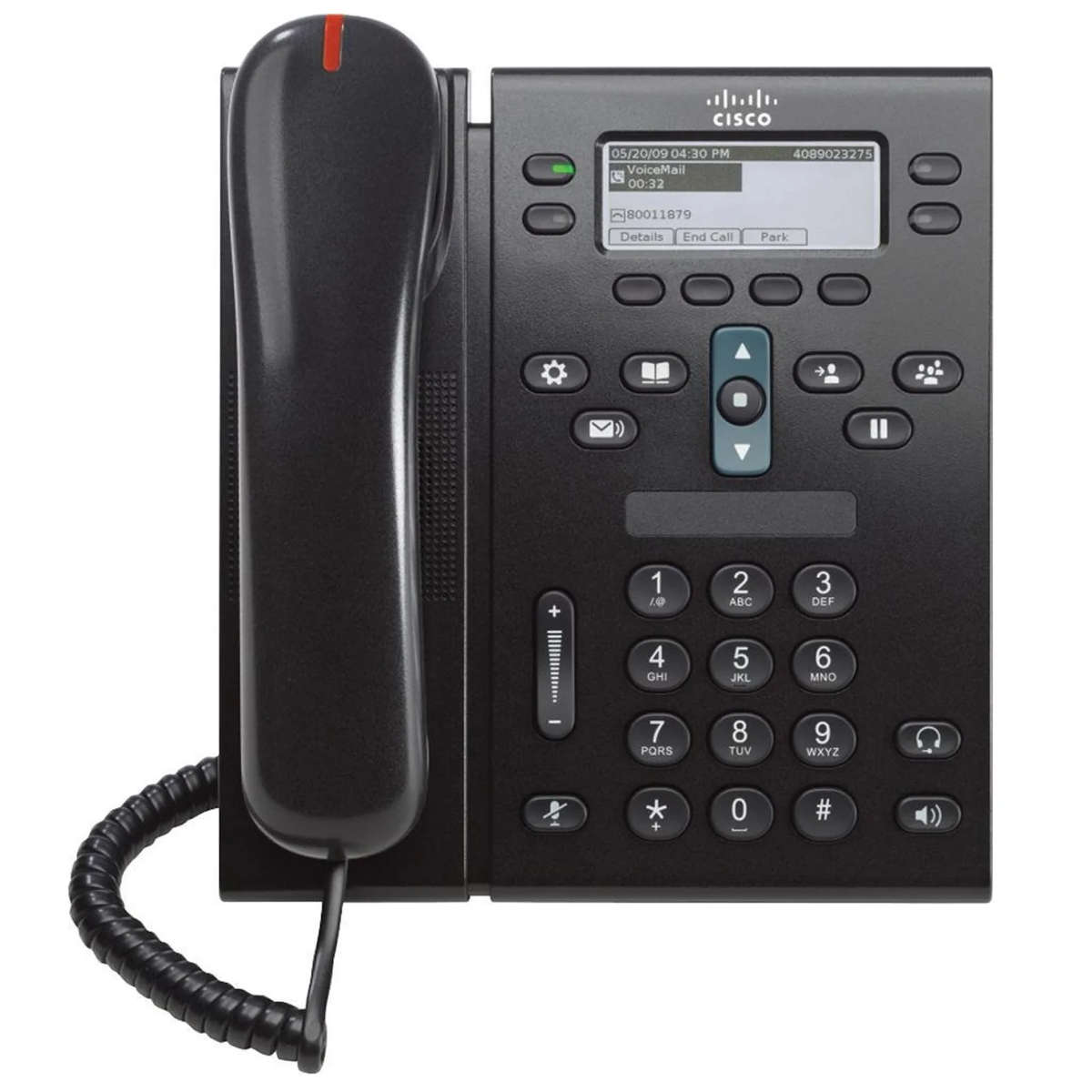

B GRADE - CISCO UNIFIED IP PHONE 6945 (CP-6945-C-K9)

Gigabit Ethernet switch

The phone has a 10/100/1000BASE-T Ethernet connection through two RJ-45 ports, one for the LAN connection and the other for connecting a downstream Ethernet device such as a PC.

Wideband audio

The phone supports wideband audio (G.722 codec and adherence to TIA 920)

Note: Wideband audio is supported in the handset and headset only, not in the speakerphone.

PoE Class 1

It supports IEEE 802.3af PoE (Class 1); power consumption does not exceed 3.84 watts.

Lighted Hold key

The key lights, when pressed, to put a call on hold, and stays lit until the held call resumes. The key flashes if one call is held while another is engaged. The key is dark when no calls are on hold.

Lighted Menu key

The key lights, when pressed, to access voicemail messages, call logs, network settings, user preferences, corporate directories, and XML services; it stays lit while menu items are active.

Lighted message waiting indicator (MWI)

The key lights when there is new voicemail, and the light is visible on both the phone chassis and the handset; it stays lit until you process your new voicemail.

Deep-Sleep option

You can save power by cycling power - by time of day and day of week.

Co-branding

The Co-Branding button allows you to include your logo on the Cisco Unified IP Phones 6900 Series phones. Cisco has approved third-party vendors to produce the buttons.

Multiple-language support

The following languages are supported:

Speakerphone

The full-duplex speakerphone allows for flexibility in placing and receiving calls.

Headset support

An RJ-9 interface to the optional headset offers you additional options for placing and receiving calls.

Graphical display

A white backlit, monochrome, 396 x 162 pixel-based display with an antiglare screen provides scrollable access to calling features and text-based XML applications.

Four soft-key buttons and a scroll toggle bar

Your calling options are dynamically presented; the scroll toggle bar allows easy movement through the displayed information.

Network features

Network features include Cisco Discovery Protocol and IEEE 802.1 p/q tagging and switching.

Volume control

A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer.

Dual-position foot stand

The display is easy to view and the buttons and keys are easy to use; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone.

Multiple ring tones

The phone off...
