Caution:
- MP305B: Built-in Li-ion battery for mobile operation (USB Type-C input).
Specification:
Brand: ISDT
Model: MP305B
Power Input: Type-C Rear Input (Max 140W)
5V3A,9V3A,12V3A,
15V3A,20V5A,28V5A
Built-in Battery: Built-in Li-ion Battery 14.4V,4900mAh,70.56Wh
Input Port (Rear): Type-C Port
Input Undervoltage / Overvoltage Protection: Yes
Input Overcurrent Protection: Yes
Input Overload Protection: Yes
Input Short Circuit Protection: Yes
Input Reverse Polarity Protection: No
Output
MR30 Output: 0-30V,0-5A,150W
Output Accuracy: Voltage: <±0.5%; Current: <±0.5%
Load Regulation: Voltage: <0.01%; Current: <0.1%
Noise:Voltage: <2mVrms; Current: <3mArms
Response Time: <90us
Display Digits: 4 Digits
Setting Resolution: Voltage: 10mV; Current: 1mA
Temperature Coefficient: Voltage: <300ppm; Current: <300ppm
USB Type-C Output: 5V3A,9V3A,12V3A,15V3A,20V5A,
28V5A,PPS 5-21V5A (Max 140W)
Output Accuracy: Voltage: < 0.5%;Current: < 0.5%
Noise: Voltage: <2mVrms;Current: <3mArms
Supported Protocols: PD3.0, PD3.1, PD3.2
Output Port (Front): Type-C, MR30 (with Banana Plug Adapter Cable)
Output Overvoltage Protection: Yes
Output Overcurrent Protection: Yes
Output Overload Protection: Yes
Output Short Circuit Protection: Yes
Output Reverse Polarity Protection: Yes
Temperature Protection: Yes
Other Parameters
Supported Battery Charging Types: LiHv/LiPo/Lilon(1-6s)/LiFe(1-8s)/Pb(1-12s)/NiMH/Cd(1-20s)
PDO Data: 10 Programmable Groups
Preset Parameters: 10 Groups
Programmable Waveform: 100 Programmable Points

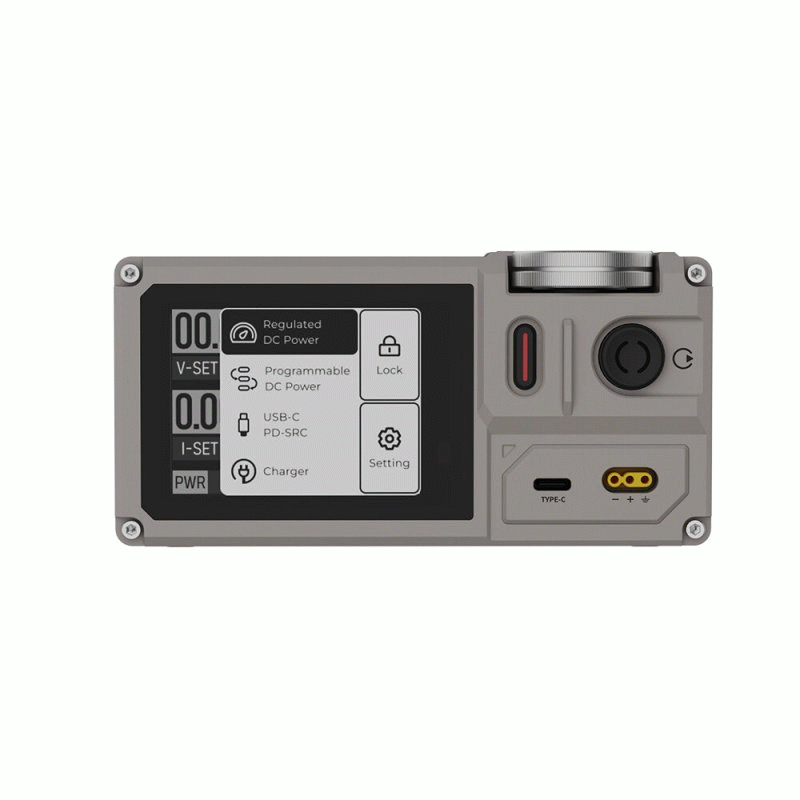

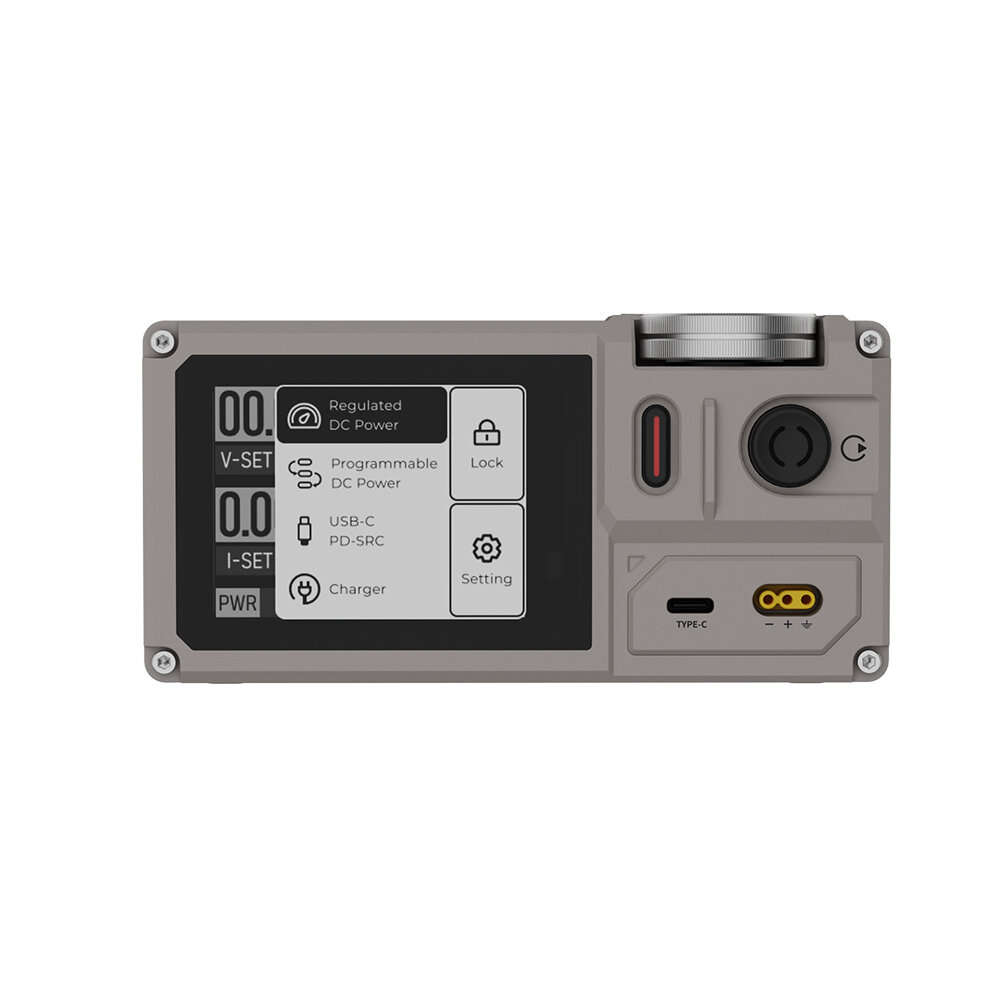

Display: 2.8-inch Full-color Capacitive Touch Screen
Physical Operation Keys: Power Key, Output Key, Scroll Knob/Knob Confirm Key
Buzzer: Various Prompt Tones and Alarm Tones

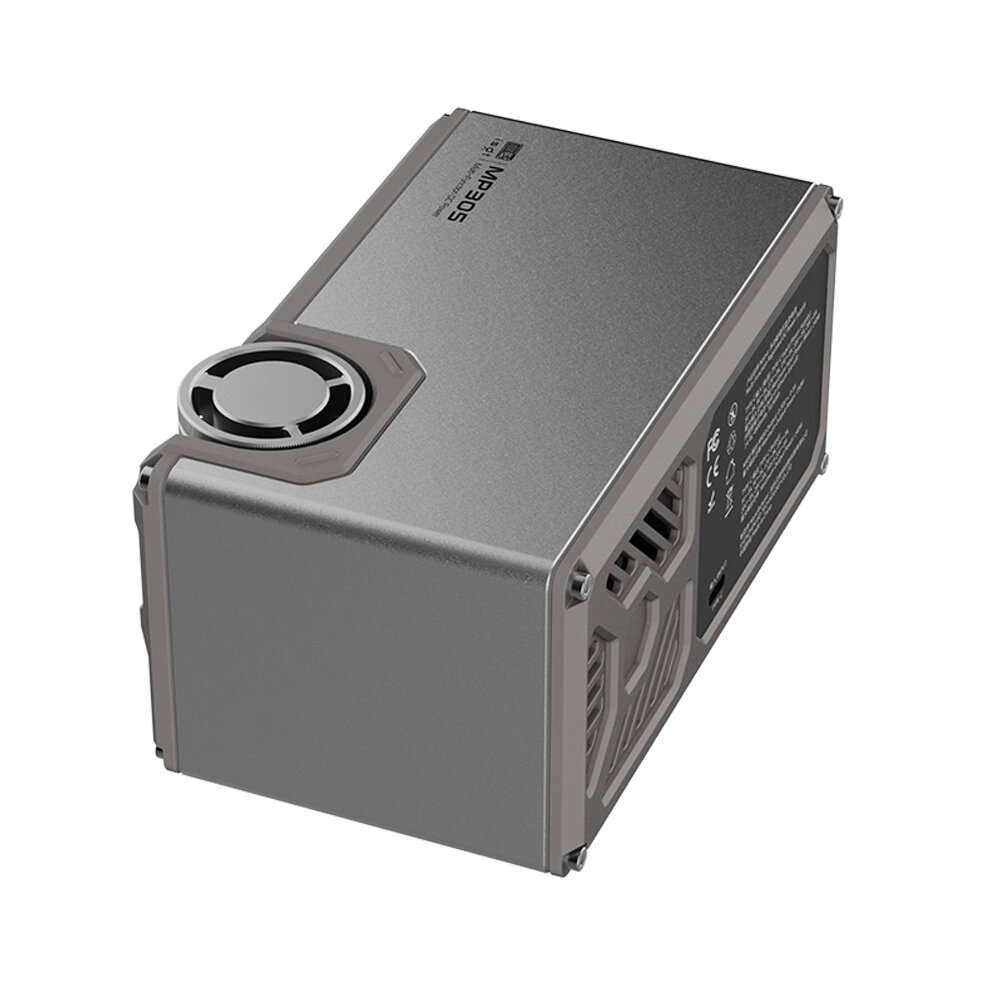

Temperature-controlled Heat Dissipation: Intelligent Active Air Cooling
Bracket Screw Hole: 1/4-inch Thread (M6, 1.27 Pitch)
Remote Control: APP (Wireless), PC (Wired/Wireless)
Support for Multiple Accessories: Mouse, Remote Control
OTA Update: APP (Wireless), PC (Wired/Wireless)
Wireless Connection: Bluetooth
Operating Temperature: 0~40
Operating Humidity: 80%RH
Storage Temperature: -10~80
Storage Humidity: 85%RH
Product Dimensions: 138 * 86.5 * 70mm
Product Weight: 828g(±10%)
Features:
Linear Regulated DC Power Supply: Offers stable power outputs ideal for lab testing needs.

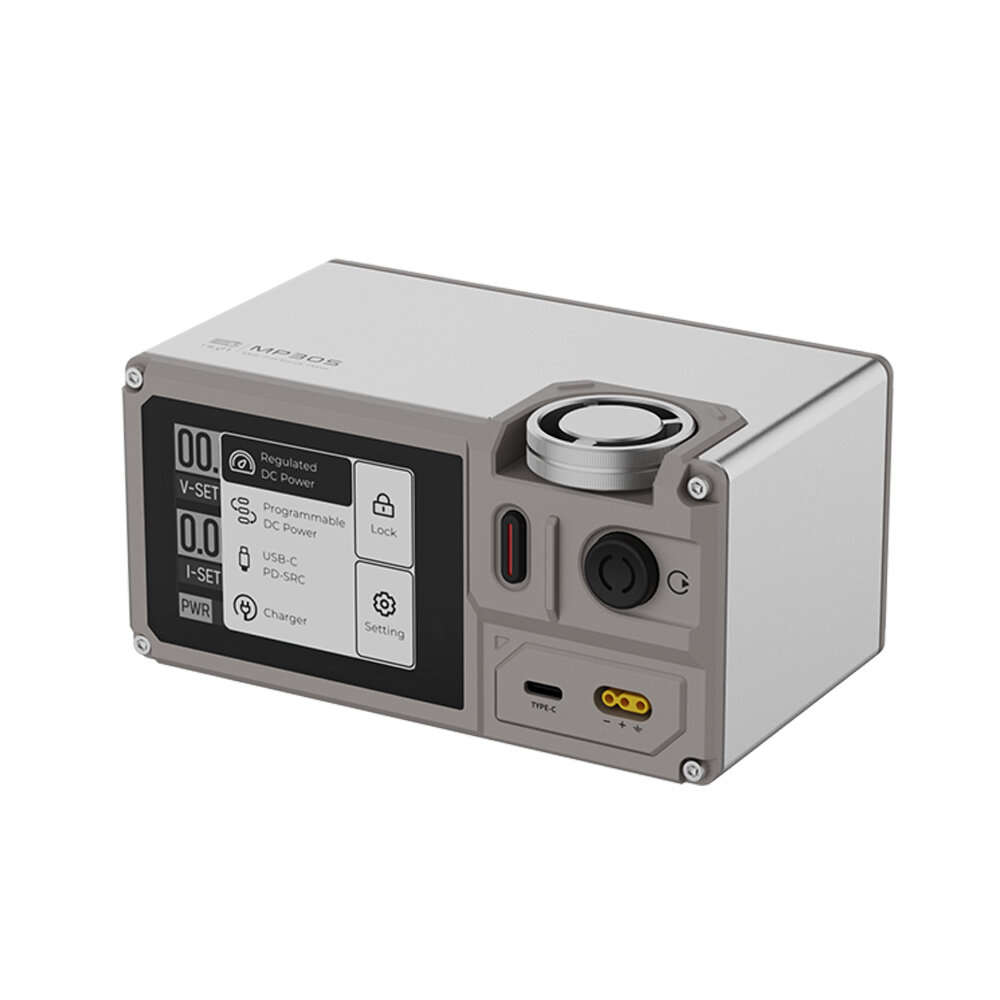

Compact Ultra-Portable Design: Lightweight and portable at 138x86.5x70mm with built-in Li-ion battery for mobile operation, suitable for both lab and fieldwork.
Advanced Battery Compatibility: Universal charger supports LiHv, LiPo, LiIon, Pb, NiMH/Cd chemistries with zero ripple and advanced voltage/current settings.
Multi-Platform Remote Control: Operates via Bluetooth and wired connections compatible with Android, iOS, Windows, OS, Linux, and HarmonyOS.
Innovative Interaction & OTA Updates: Features a full-color 2.8-inch touch display, physical interaction keys, and OTA wireless updates via apps or PC software.
Package included:
1 x MP305B Multi-functional Linear DC Regulated Power Supply
1 x Adapter
