B-LUX-V30B 0-200000lux Light Intensity Sensor Illuminance I2C Digital Light Intensity Sensor Module

Overview:
The B-LUX-V30B ambient light sensor provides I2C digital output and is ideal for use in agriculture, instrumentation, industrial sensors and more. The device operates at less than 0.8mA, low-power ambient light sensor; has a 32-bit illumination value register and a 112-byte EEPROM data storage unit, and measures 0-200,000 lumens of light intensity values. The spectral response of the on-chip photodiode is optimized for the human eye`s response to ambient light, integrating infrared and UV shielding. The adaptive gain circuit automatically selects the correct lumen range optimization test (count value/lumens). The sensor is designed to operate from a 2.7V to 6V supply voltage range and consumes 0.7 mA at full load. Features: Wide detection range: 0 lumens to 200,000 lumens Low light precision: 0.054Lux Inner diameter 22mm, Outer diameter 26mm, Large diameter 28.5mm, High: 18mm hemisphere VCC = 2.7V to 6V Working current : ICC = 0.7mA Operating temperature range: -40a to +85a Device address: 1001 0100 (0x94) write data address, 10010101 (0x95) read data address Wiring:
1. VCC power supply 2.7V-6V. 2. SCL I2C clock bus. 3. SDA I2C data bus. 4. GND Ground. 5 EN EN sensor chip select enable, H high active, L off sensing

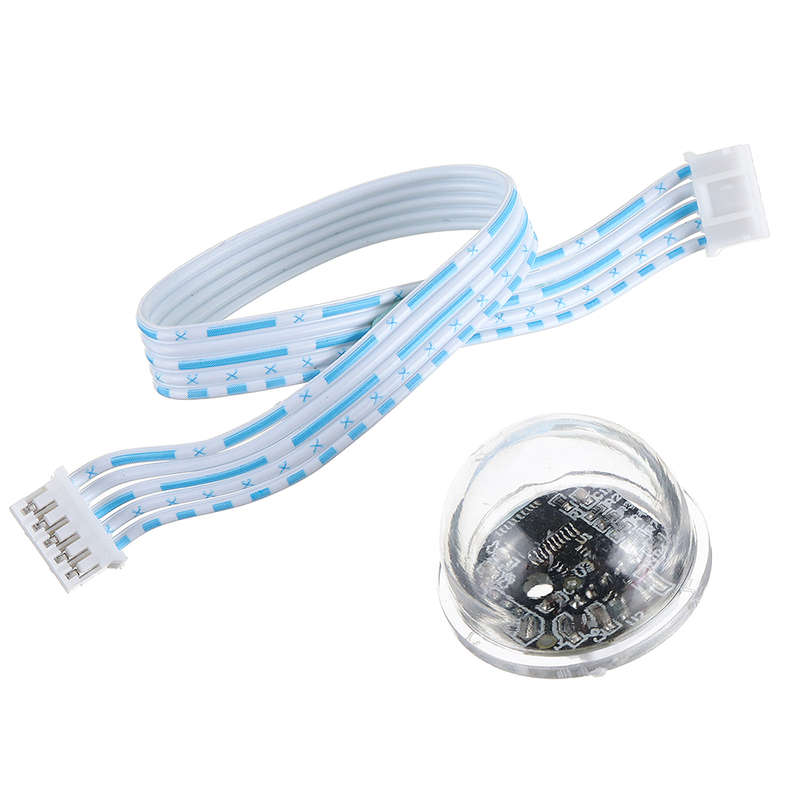

PH2.0 interface, default line length 20cm
Package Included:
1 x B-LUX-V30B 0-200000lux Light Intensity Sensor
