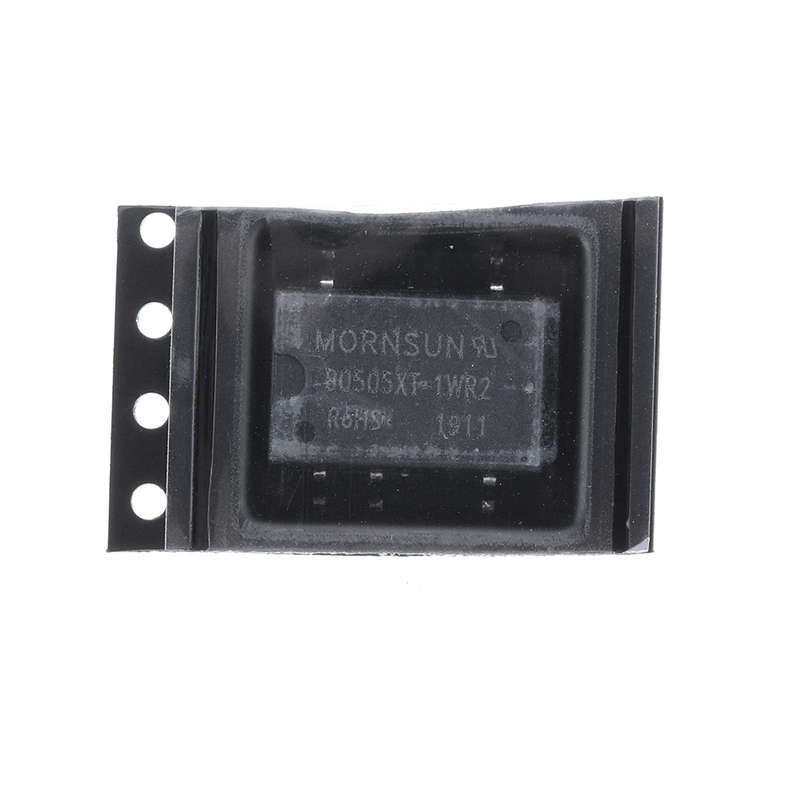

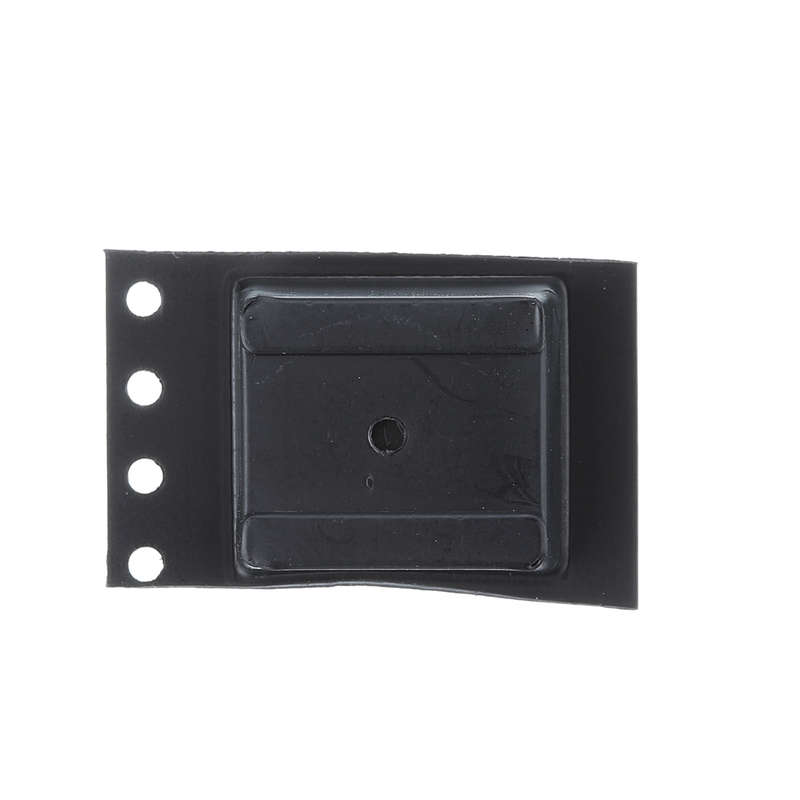

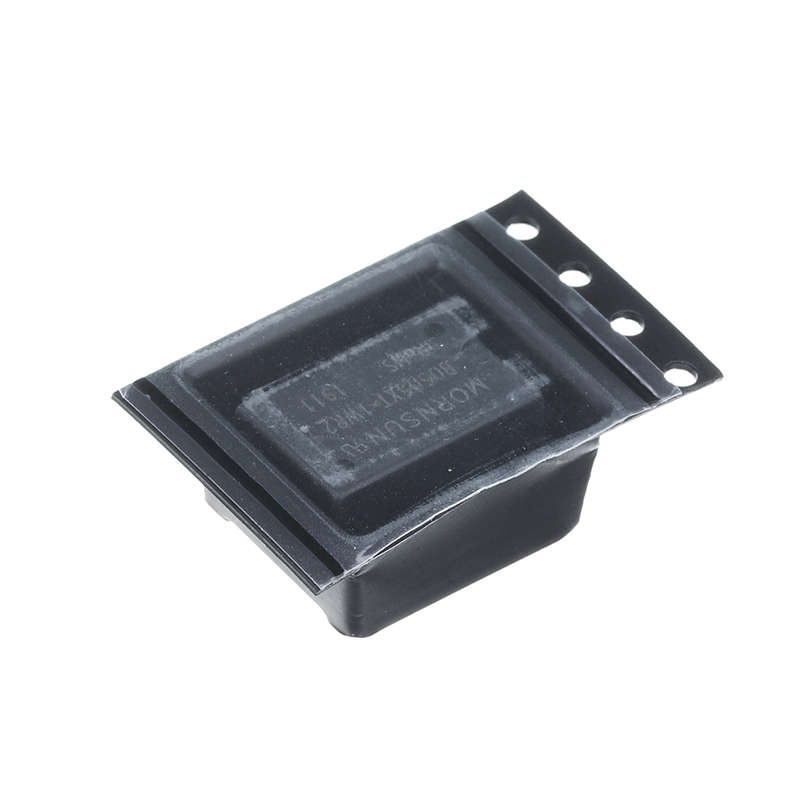

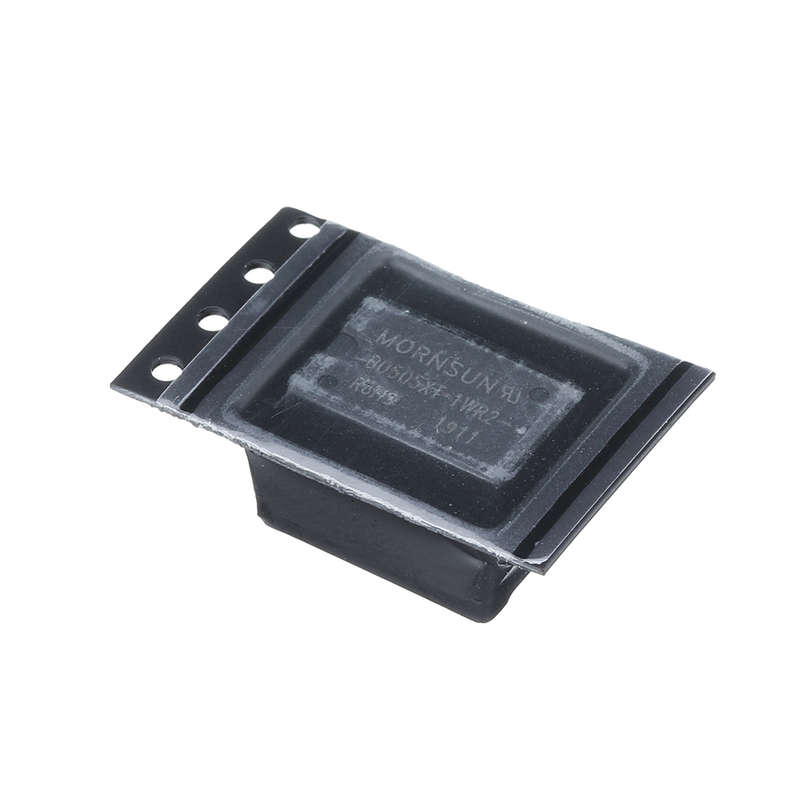

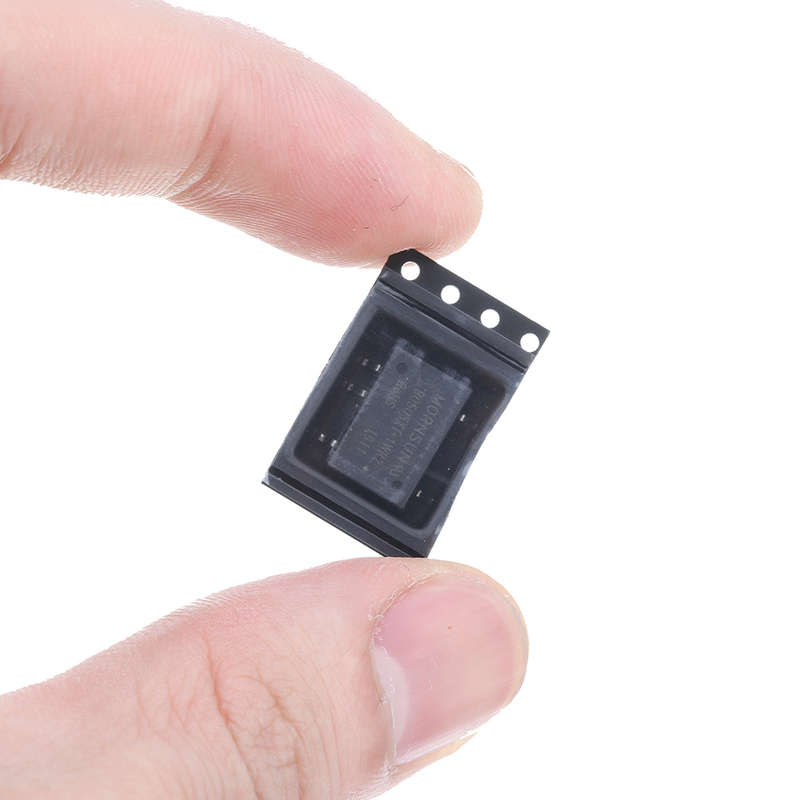

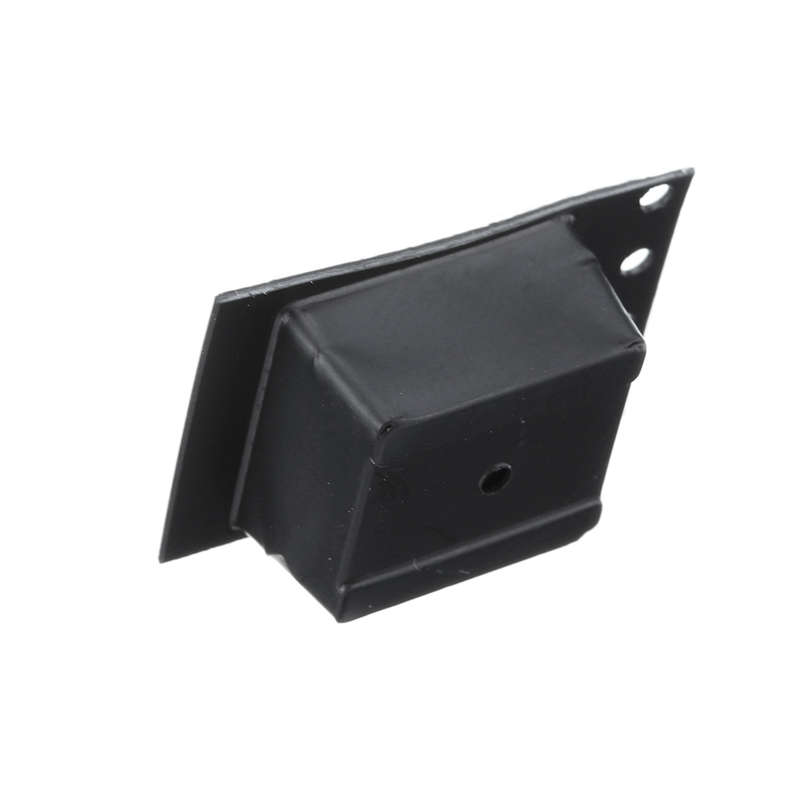

B0505XT-1WR2 DC-DC 5V to 5V Isolation Power Supply Chip Module Input 4.5-5.5V Output 5V

B0505XT-1WR2 DC-DC 5V to 5V Isolation Power Supply Chip Module Input 4.5-5.5V Output 5V

20 available / new
R399.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643373284
Overview: The B_XT-1WR2 family is designed for applications in board power systems that require a set of voltages that are isolated from the input supply. This product is suitable for: 1. The input power supply voltage is relatively stable (voltage variation range ±10% Vin); 2. Requirements isolation between input and output (isolation voltage a 1500VDC); 3. The output voltage stability and output ripple noise requirements are not high; 4. Typical applications: pure digital circuit occasions, general low frequency analog circuit occasions, relay drive circuit occasions, etc. Features: - Sustainable short circuit protection - Operating temperature range: -40C ~ +105C - Small SMD package - Isolation voltage 1500VDC - Internal patch design - No additional components required - International standard pin mode - Passed IEC62368, UL60950, EN60590 certification Specifications: Input voltage: 4.5-5.5V DC Output voltage: ±5V DC Output current: ±200/20mA (max/min) Full load efficiency: 76/80 Maximum capacitive load:220uF Package Included: 1 x B0505XT-1WR2 DC-DC 5V to 5V Isolation Power Supply Module
