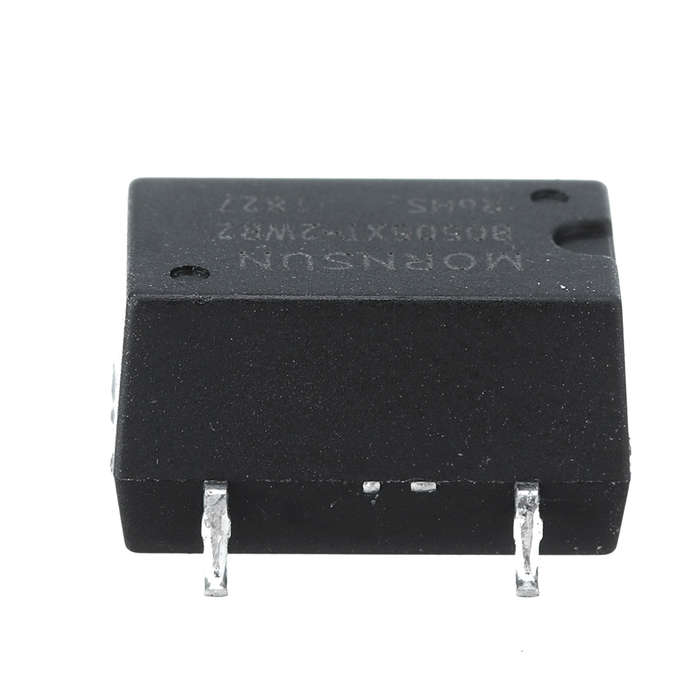

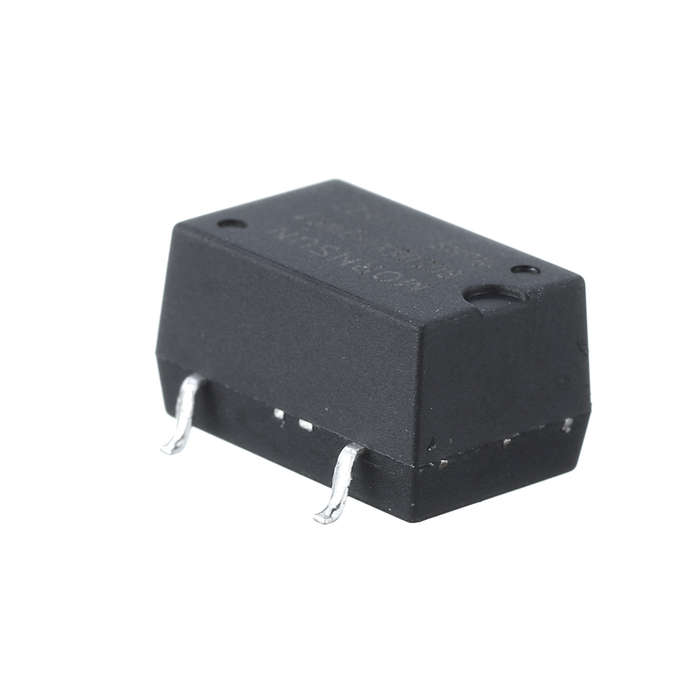

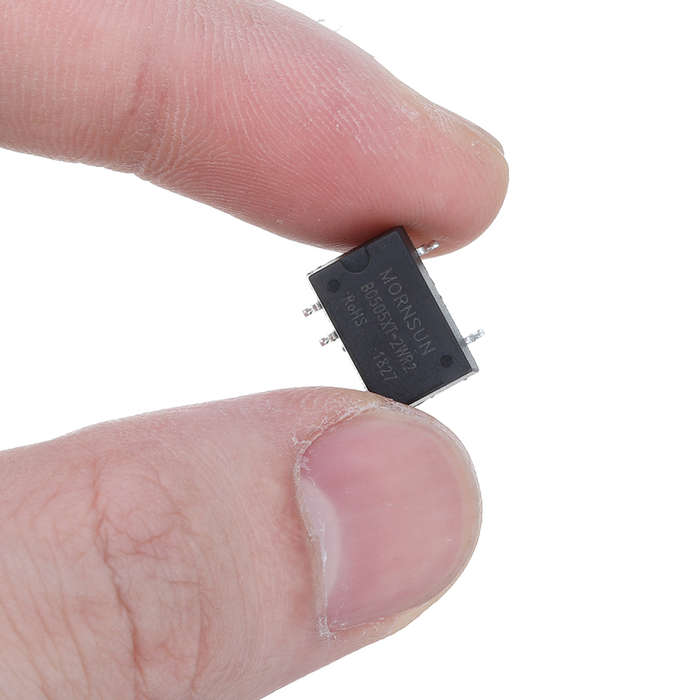

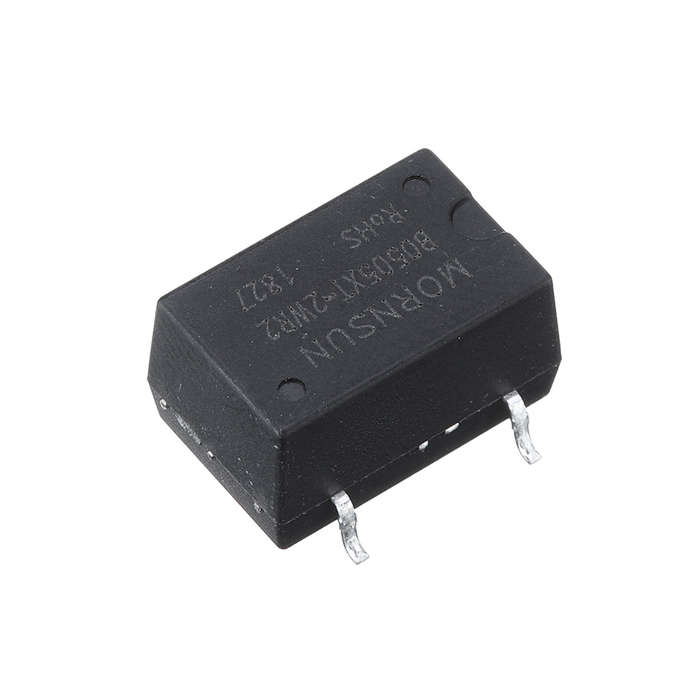

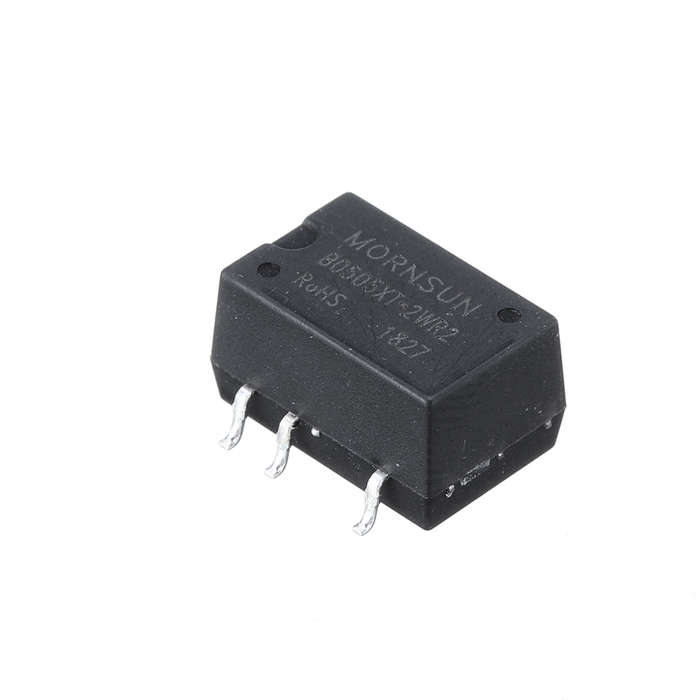

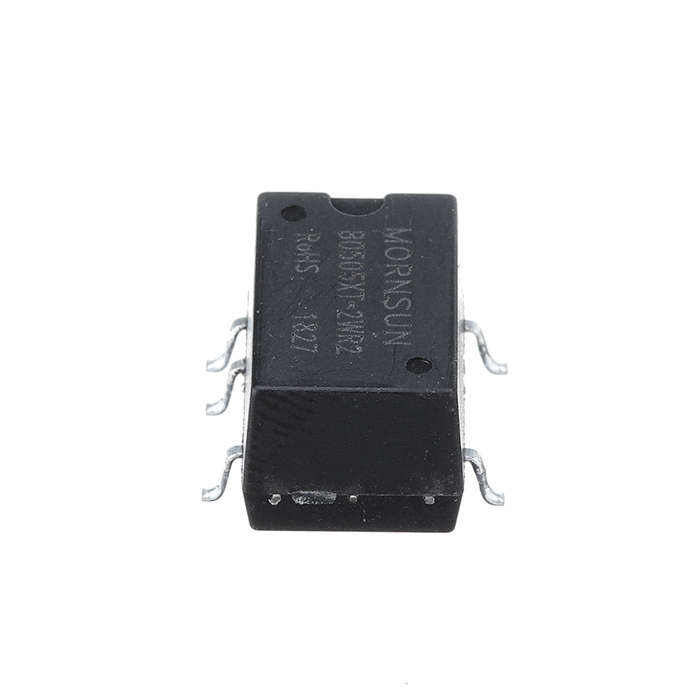

B0505XT-2WR2 5V to 5V Isolation Power Supply Chip Module Input 4.5-5.5V Output 5V

New

20 available

R399.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4057

92.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654092397

Overview: The B_XT-2WR2 family is designed for applications in board power systems that require a set of voltages that are isolated from the input supply. This product is suitable for: 1. The input power supply voltage is relatively stable (voltage variation range &pm;10% Vin); 2. Requirements isolation between input and output (isolation voltage a 1500VDC); 3. The output voltage stability and output ripple noise are not high. Features: - Operating temperature range: -40ﾣC to +105ﾣC - Up to 84% efficiency - Small SMD package - Isolation voltage 1500VDC - Internal patch design - No additional components required - International standard pin mode - Certified by EN60950 Specifications: Input voltage: 4.5-5.5V DC Output voltage: &pm;5V DC Output current: &pm;400/40mA (max/min) Full load efficiency: 75/79 Maximum capacitive load:220uF Package Included: 1 x B0505XT-2WR2 DC-DC 5V to 5V Isolation Power Supply Module
