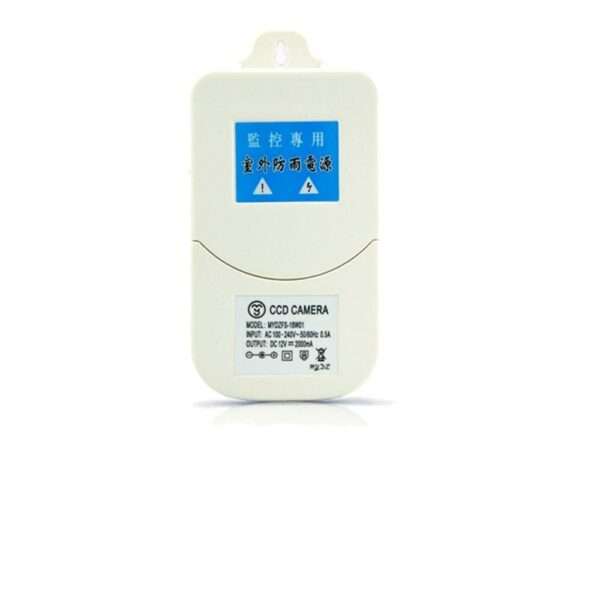

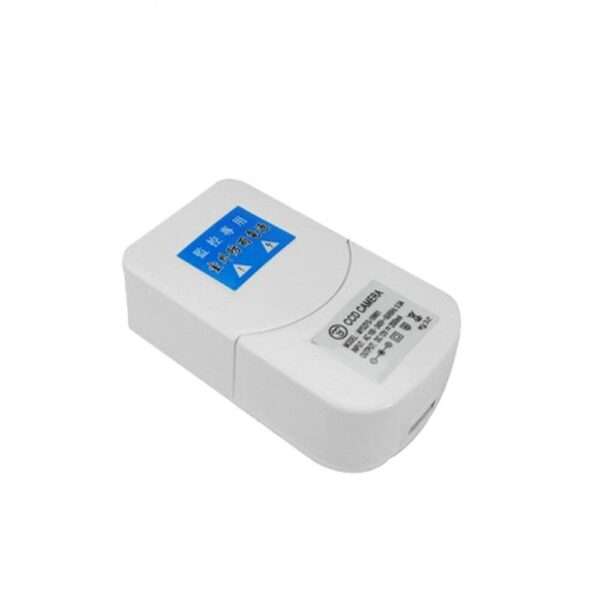

B125X CCTV Camera Power Adapter
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Input voltage: AC100-240V 50/60Hz
Output Output Connector: 5.5?2.1mm DC/90mm,optional
Output voltage: 3-24V up and down 5%
Output Electric current: 1A-2A
Ripple wave: (mVp-p):<1%
Linear modulate: ?0.5%max
Temperature coefficient: ?0.02%/degree
Start time: ?3s(240VAC output)
Guard time: ?20ms(240VAC input)
Output standard: 12V2A
Protection Override protection: 115% to 200%kvA, Automatic recovery
Short-circuit protection 1 channel: Automatic recovery
Insulation Insulation strength: 1500VAC/10mA.1MIN
Insulation temperature: ?30M?,DC 500V
Environment Working temperature: 0-40 degree,10%-90%RH
Store temperature: -20-60 degree,10%-90%RH
Package Weight: 122g

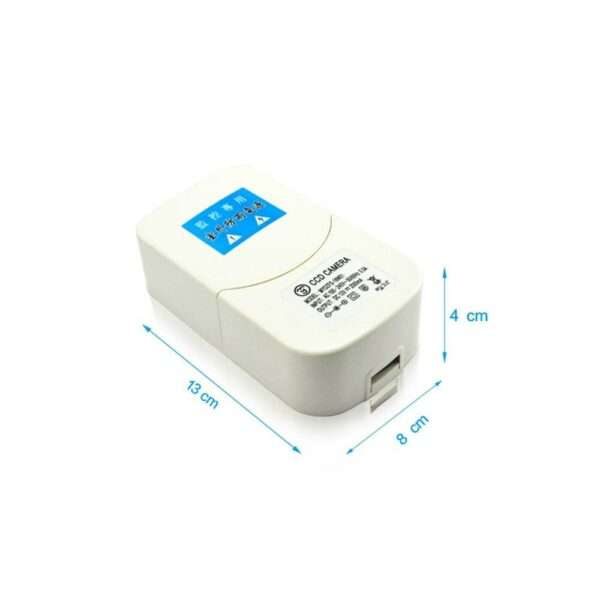

Package Dimension: 15,5cm x 8,5 x 4,5 (L x W x H)
Package Includes:
1 x Power Adapter
