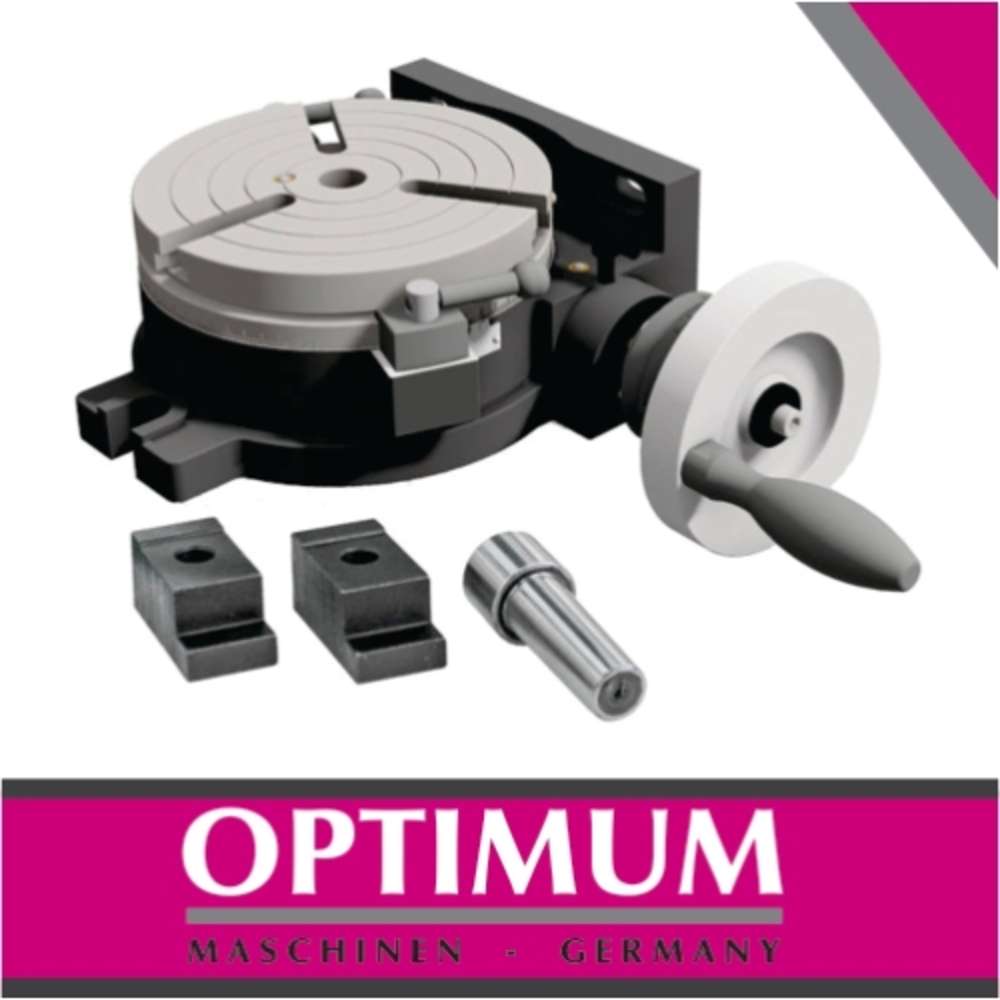

B3356150 RT 150 VERTICAL DIVIDING HEAD
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
RT 150
Circular dividing table
Technical Specifications
Chucks 150 mm
Construction height 79 mm
Width 156 mm
Length 204 mm
Centre height 102 mm
Slot width 11 mm
Indirect indexing plate yes
Weight 12 kg
Description
Horizontal-vertical circular dividing tables
Quality circular dividing tables made of high-quality Meehanite cast
Precision bearing
Stability even under heavy load
Large spindle hole lo clamp longer workpieces
Quick-action dividing via locking discs for higher manufacturing speed for mass parts
Hardened and ground screw
Working table with 360 scaling
1 turn of the handwheel 4 rotation
Scaling on the handwheel 2I
Possible division via scaled handwheel with vernier
Up to 150 pcs. different divisions with indirect dividing plates are available
Optional: CNC add-on kit's MK RT1 and MK RT2 to control the horizontal vertical circular dividing tables
