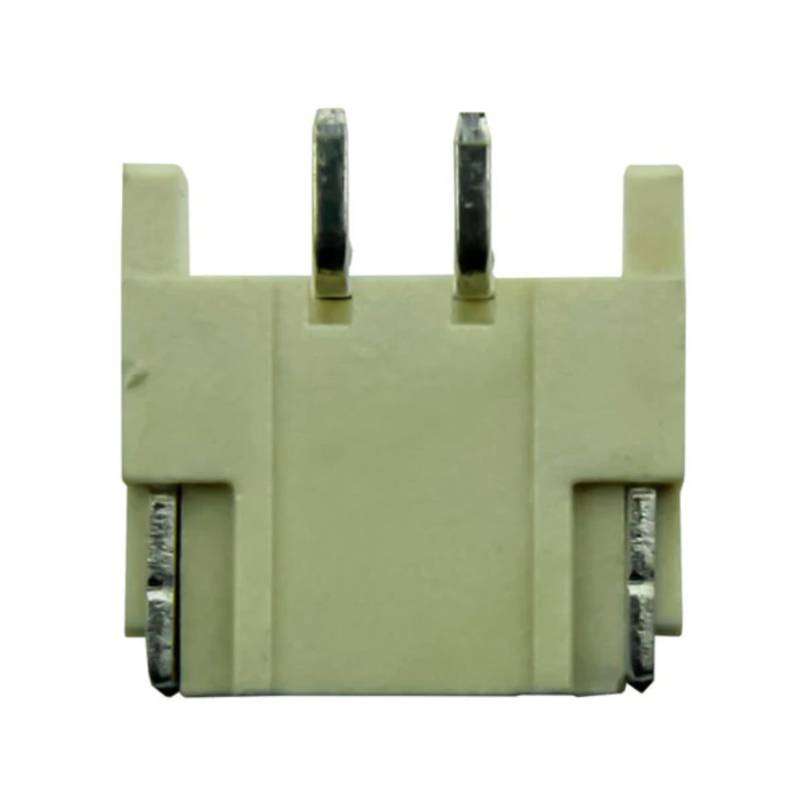

This backlight connector is designed to connect to a backlight and due to its 2 pins with a 2mm pitch it is very easy and simple to make the connection. The body of the connector is made of nylon that makes it very durable and enables the connector to handle extreme environments.
| Max voltage | 100V AC/DC |
| Max current | 2A |
| Mounting angle | Right angle |
| Mounting type | Surface mount |
| Pin type | Male |
| Number of pins | 2 |
| Insolation resistance | 1000MOhm |
| Contact material | Brass |
| Operating temperature | -40 - 150 degrees |
