BACKUP BATTERY & INVERTER SYSTEM For Home Emergency Power Loadshedding Kit

An easy to install backup battery & inverter system for emergency power supply during load-shedding & electricity outages in the home. The kit can be easily installed and contains everything required to ensure your house will still have lights on, even during extended power outages. The system contains a 200Ah 12V deep-cycle gel battery, a 2000W pure sine wave inverter 12V DC to 220V AC and built-in UPS/battery-charger as well as all cabling and accessories required for a complete backup system.

• Complete backup battery power system, 12V DC Battery charges using mains 220V AC power from the inverter which takes 12V DC battery power and when the power is out, the inverter provides 220V AC power output
• 2000W Pure Sine Wave Power Inverter can power: Lights, TV, Computer, Router, Alarm system, cameras & Small Appliances
• 200Ah Deep Cycle Gel 12V Battery is perfect for use as backup power it is designed to be drained down deeply (50% depth of discharge recommended) and recharged many 100's of times with a long service life.

BACKUP BATTERY & INVERTER BACKUP SYSTEM SPECIFICATIONS

• BATTERY SPECIFICATIONS
• Nominal Voltage: 12VCapacity: 200Ah (Usable energy - 100Ah at 50% recommended depth of discharge)
• Battery Type: Lead Acid GelMaintenance: Maintenance Free, Unspillable
• Applications: Deep Cycle application Backup Power Systems, Solar Off-grid or Grid Tied Systems, UPS, Security, Alarms & Telecoms
• Cyclic Use: Deep Cycle up to 70% DoD (Depth of discharge), recommended 50% DoD for an extended lifespan and charging cycles

POWER INVERTER SPECIFICATIONS

• Rated Power: 2000W
• Peak Power: 4000W
• Input Voltage: 12V DC
• Output Voltage: 220V AC
• Waveform: Pure Sine Wave
• Battery-Charger: Yes, built-in UPS/Battery Charger
• Output Type: Universal AC Plug (EU, UK & US)Battery Charging
• Input: SA Type Power CordLCD Display: Battery DC input voltage, AC Output Voltage displays
• Cooling: Built-in Fans with Temperature detection
• Protections: Overvoltage, Undervoltage, Short Circuit, Reverse Polarity, High-Temperature Shutdown

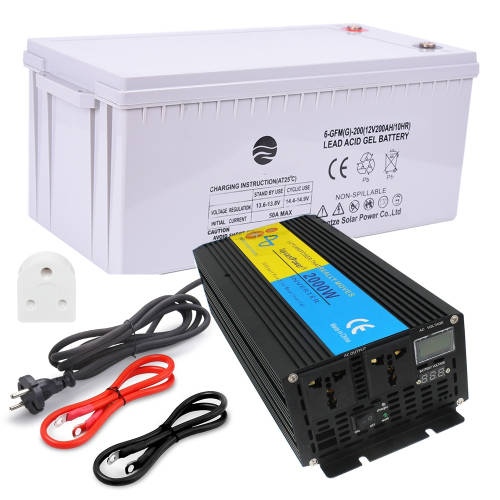

PACKAGE CONTENTS

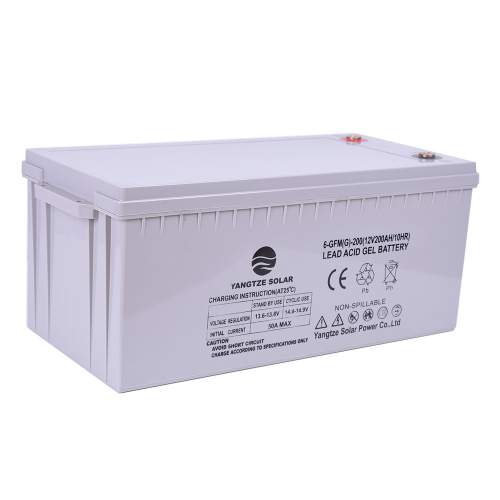

1 x 200Ah Deep Cycle Gel 12V Battery

1 x 2000W 2Kw Pure Sine Wave Power Inverter with Battery Charger

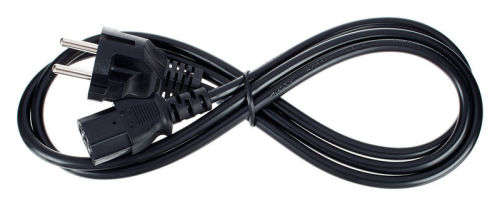

1 x SA Plug to Inverter AC Power Cord

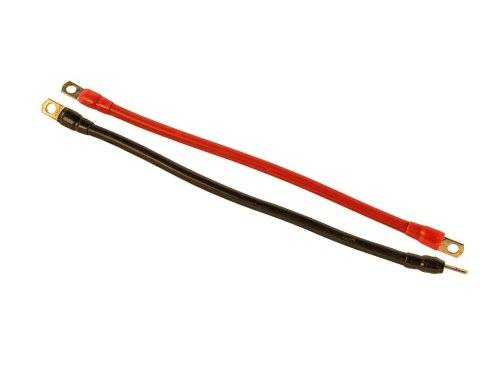

1 x Set 25mm Battery Cables (Black + Red)

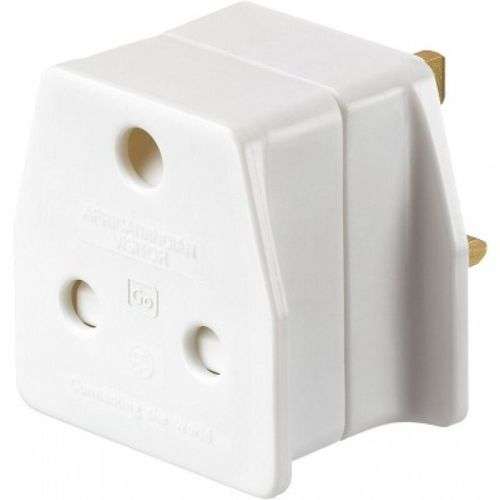

1 x Adapter for 3-Pin SA to Universal Plug

1 x Manual, Wiring Diagram & Installation Instructions
