SELECTED OPTION:
KV: 8000KV
Description:

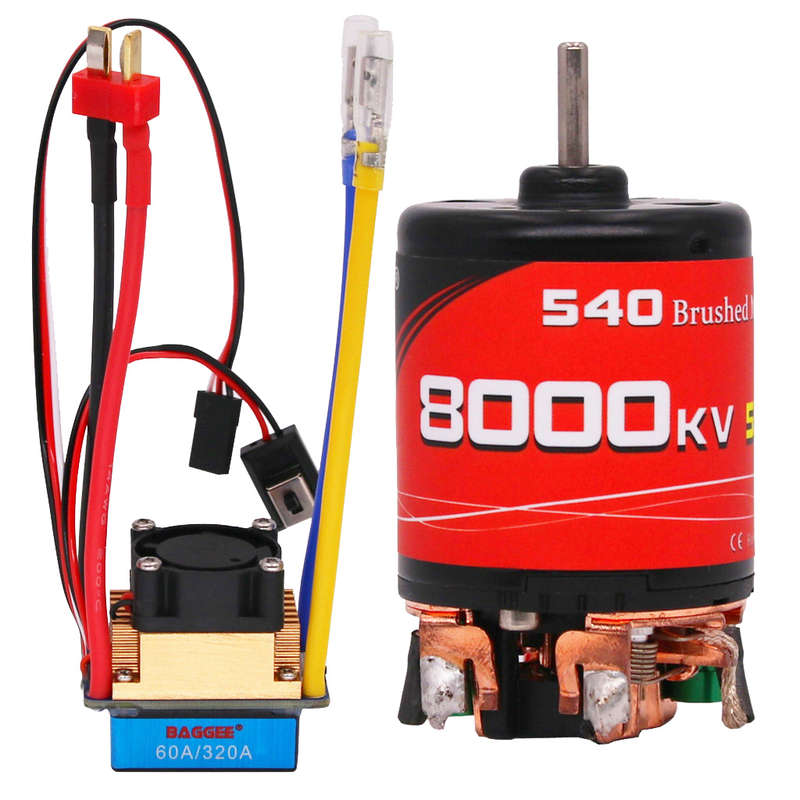

Name: 1/10 Waterproof remote control climbing car 540 brush motor 55T/8000KV (changeable carbon brush motor motor) + 320A/60A waterproof brush two-way brush ESC (with motor fan + with brake)
Model: Suit
Material: PVC+metal
Color: icon color
Specification: 1 set (brush motor*1+brush ESC+1)
Packaging: carton packaging
Product weight: 240G
Package weight: 270G
Product size: Motor 36*36*50mm/42*22*36mm
Packing size: 180*60*20mm
Suitable models: 1/8, 1/10 remote control car climbing car general type (such as SCX10 II D90 90046 90047 TRX4 TRX6 CC01 and other 1/10 models); suitable for some models of remote control boats;
Packing accessories content:
1, 55T/8000kv waterproof brush motor *1
2. 60A/320A waterproof brushed ESC*1?
Features and parameters:

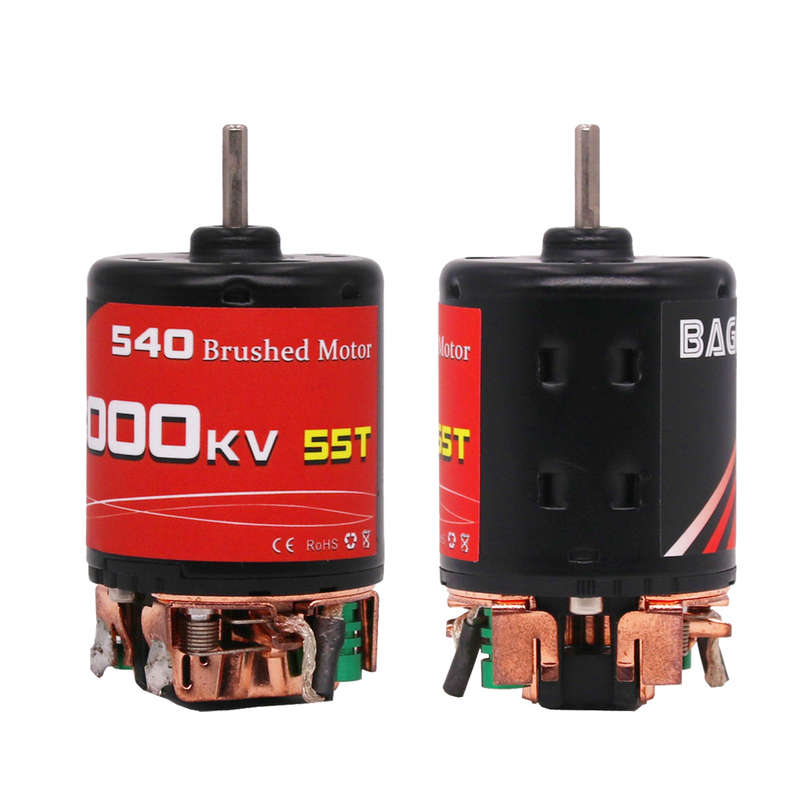

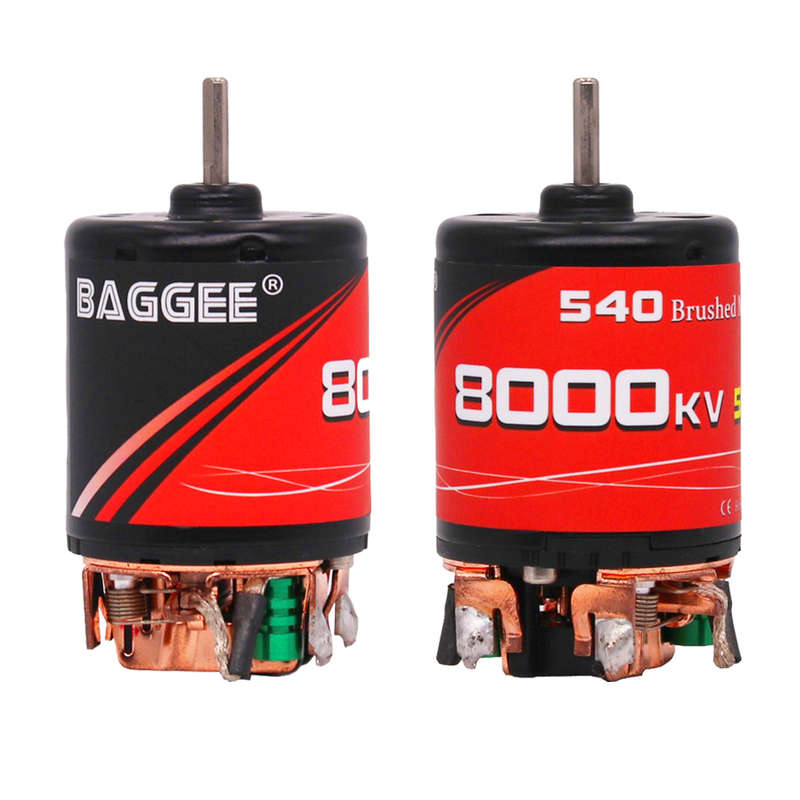

1. 55T/8000KV Waterproof Brush Motor
Adaptation range: 1/10 RC climbing car/remote control boat
Brand: BAGGEE
Model: 8000KV/55T
Waterproof performance: waterproof
material: metal

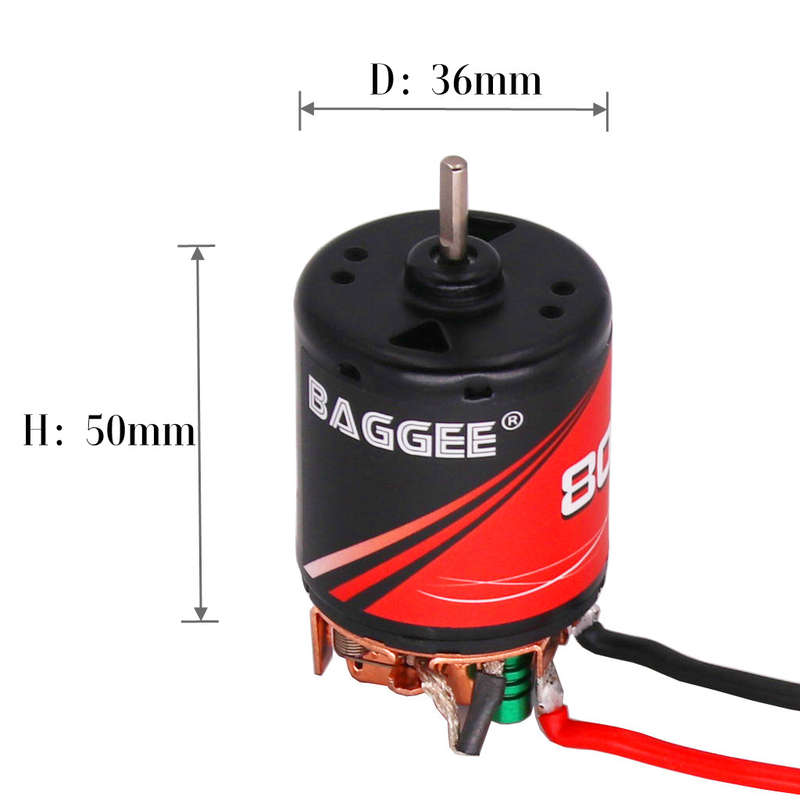

External diameter: 36MM
Total length: 50MM (excluding motor shaft)
Motor shaft length: 12MM
Motor shaft diameter: 3.17MM
No-load current: 1.4A
7.2V voltage no-load speed: 8000KV
It is recommended to adapt to ESC: 40A/60A/80A (most common brushed ESCs)
The highest support voltage of the motor: 12V
Recommended battery voltage: 7.2V-7.4V (2-3S lipo or 5-9 NIMH)
Mounting screw fixing holes: 22*8 (4 M3 screw holes)

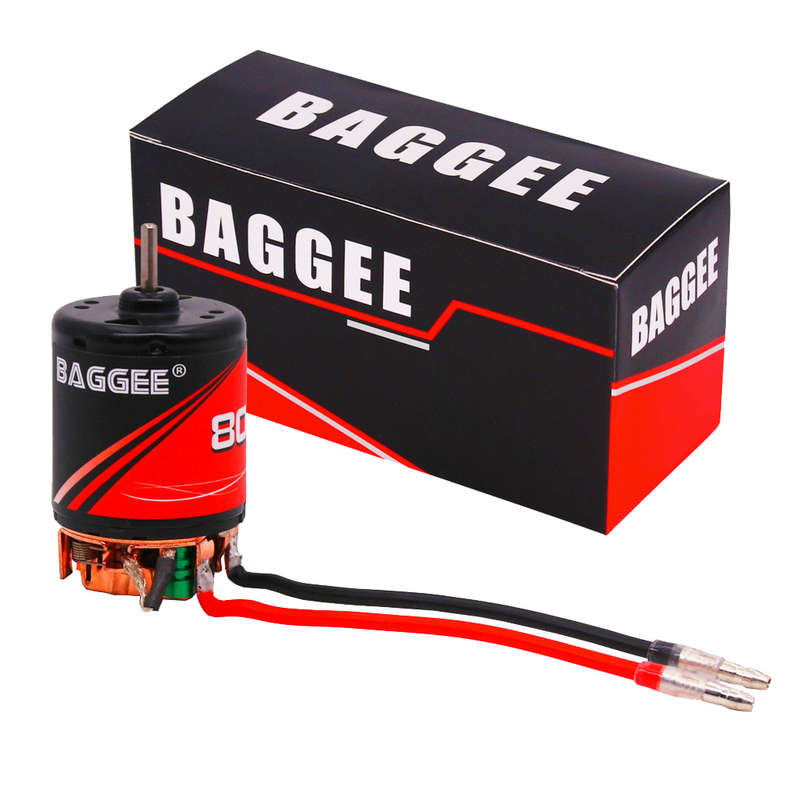

Packaging: carton packaging
Product weight: 185G
Package weight: 195G
Product size: 36*36*50mm
Packing size: 80*60*55mm
Suitable models: 1/8, 1/10 remote control car climbing car general type (such as SCX10 II D90 90046 90047 TRX4 TRX6 CC01 and other 1/10 models); suitable for some models of remote control boats
1. The new 540 brush motor, high-quality craftsmanship, high-performance positioning. Imported NMB bearings are used for smoothness, can work for a long time, and reduce wear. The motor is a skewed slot rotor, which has a higher energy efficiency ratio and better linearity compared to a straight slot;
2, 8000KV, 55T high torque design, suitable for most, 1/8, 1/10 climbing car models, with a wide range of adaptability characteristics (such as SCX10 II D90 90046 90047 TRX4 TRX6 CC01 and other 1/10 models General)
3. Two-way bearing, strong magnetic characteristics, low heat, good heat dissipation, high power, and can also change the carbon brush motor (external carbon brush, can work for a long time)
4. Recommendations: 8000KV/55T specifications are recommended for climbing vehicles and large bikes, and 16800KV/27T specifications are recommended for flat sports cars and drifting vehicles.
?

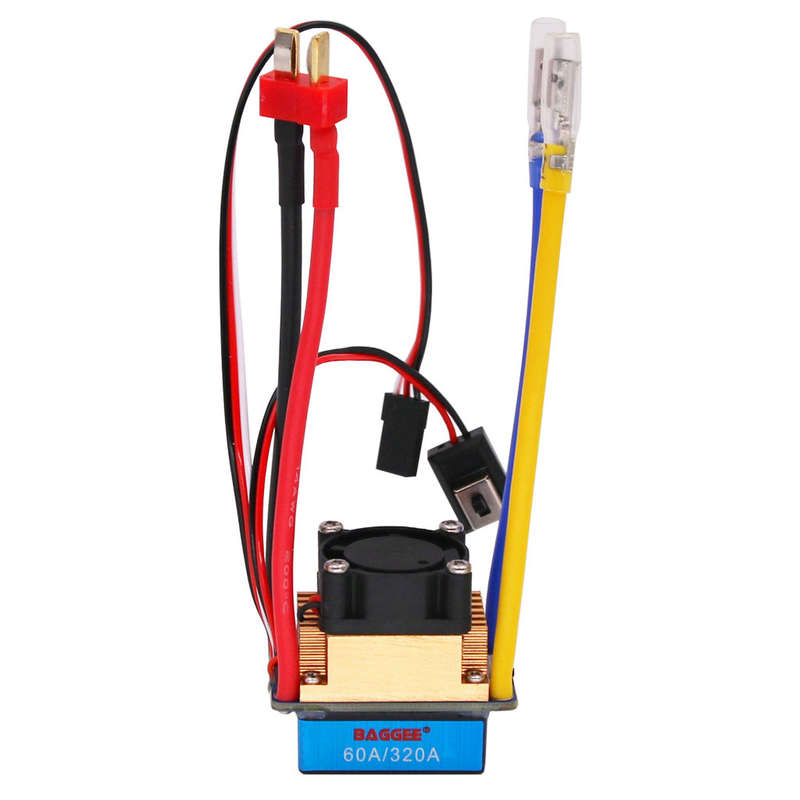

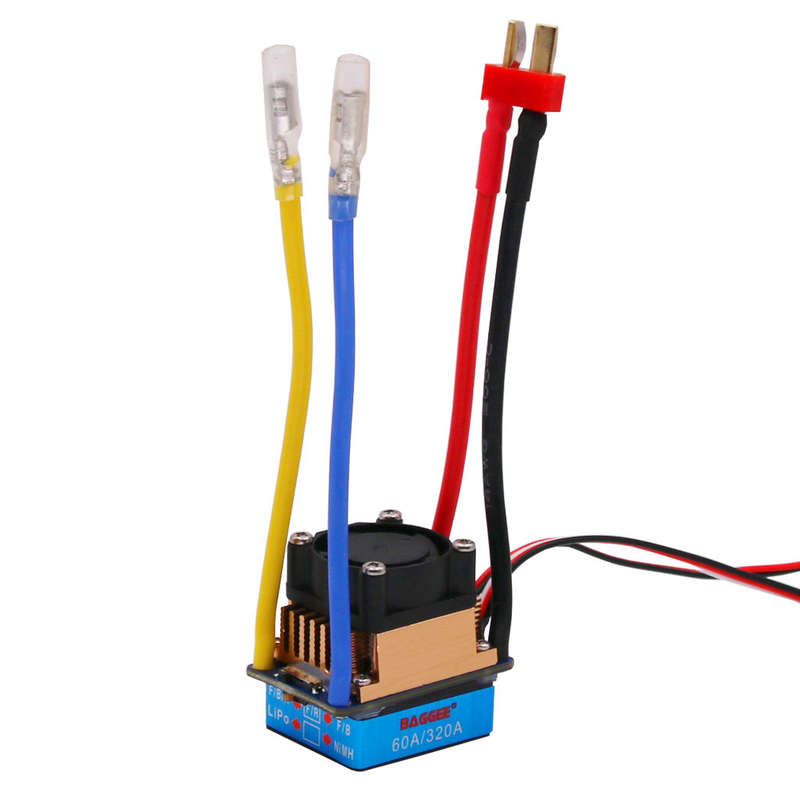

60Awaterproof brushed ESC

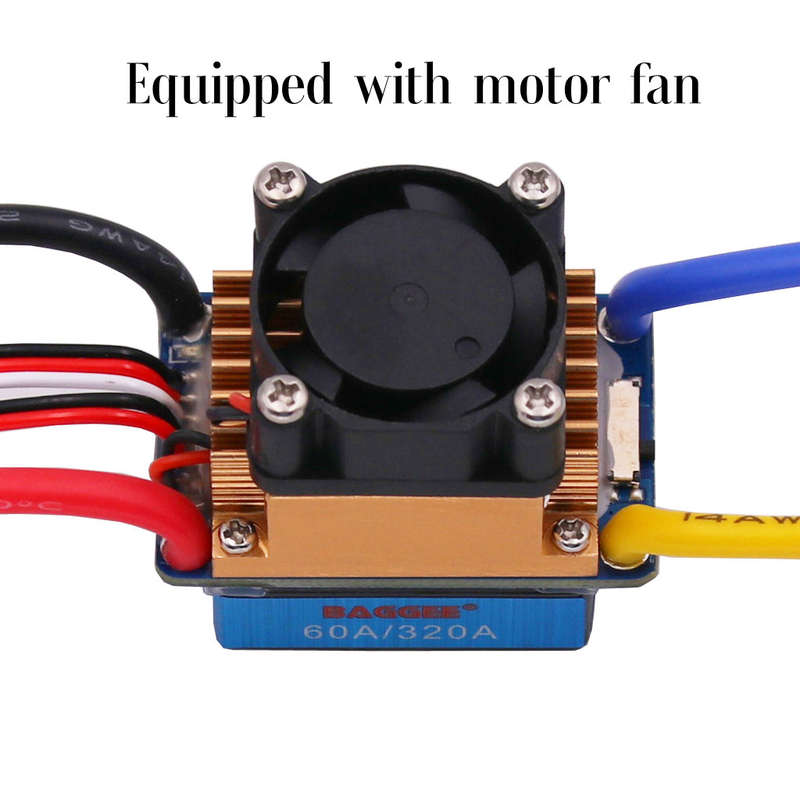

Model: 60A (with motor fan + with brake)
Brand: BAGGEE
Material: PVC/Metal
Colour: Black
Plug: T plug
Voltage range: 7.4V-11.1V

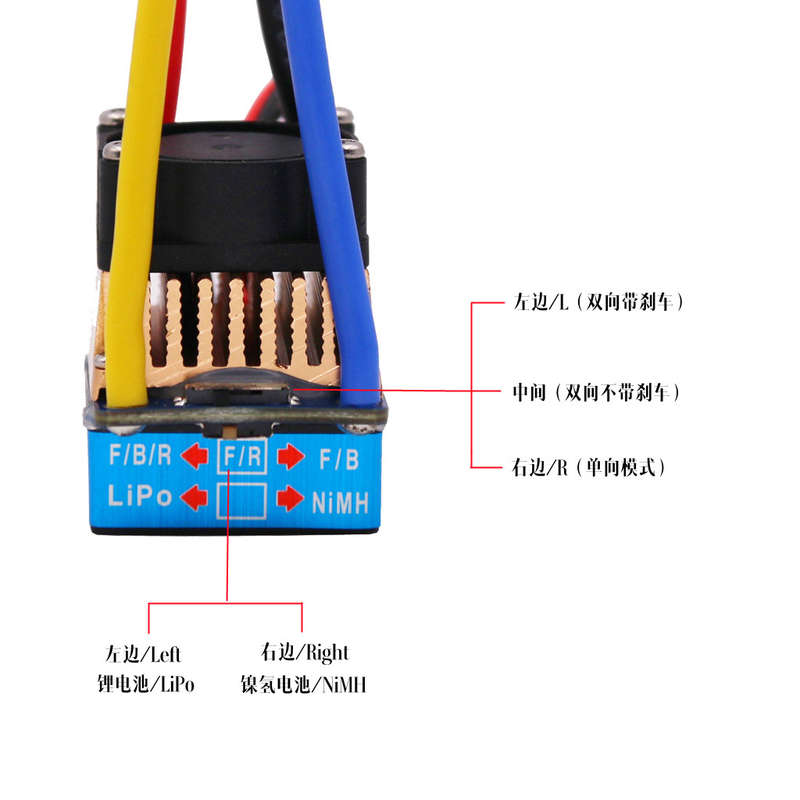

Continuous/instant current: forward 60A/320A; reverse 45A/200A
Adapted motor: 540,550 brushed motor
Battery specifications: 2-3 lithium batteries (Lipo) or 5-9 nickel-metal hydride batteries (NiMH) or 12V batteries;
BEC output: 5V/3A
Internal resistance: 0.0015 ohm
Packaging: carton packaging
Product weight: 57G
Package weight: 75G
Product size: 42*22*36mm
Packing size: 140*45*30mm
Suitable models: 1/10 remote control car climbing car model car, etc. (such as SCX10 90046 90047 TRX4 TRX6 D90 and other models)
Motor speed range:
(1) 2 lithium batteries (Lipo) or 6 nickel-metal hydride batteries (NiMH): 540,775 motor size The motor speed is lower than 20000 rpm;
(2) 3 lithium batteries (Lipo) or 9 nickel-metal hydride batteries (NiMH): 540,775 motor size The motor speed is lower than 15000 rpm;
Package Included:
1x motor
1x ESC
