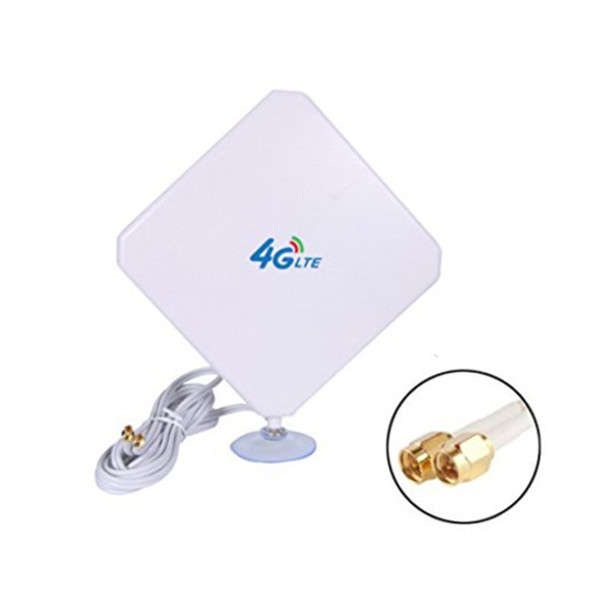

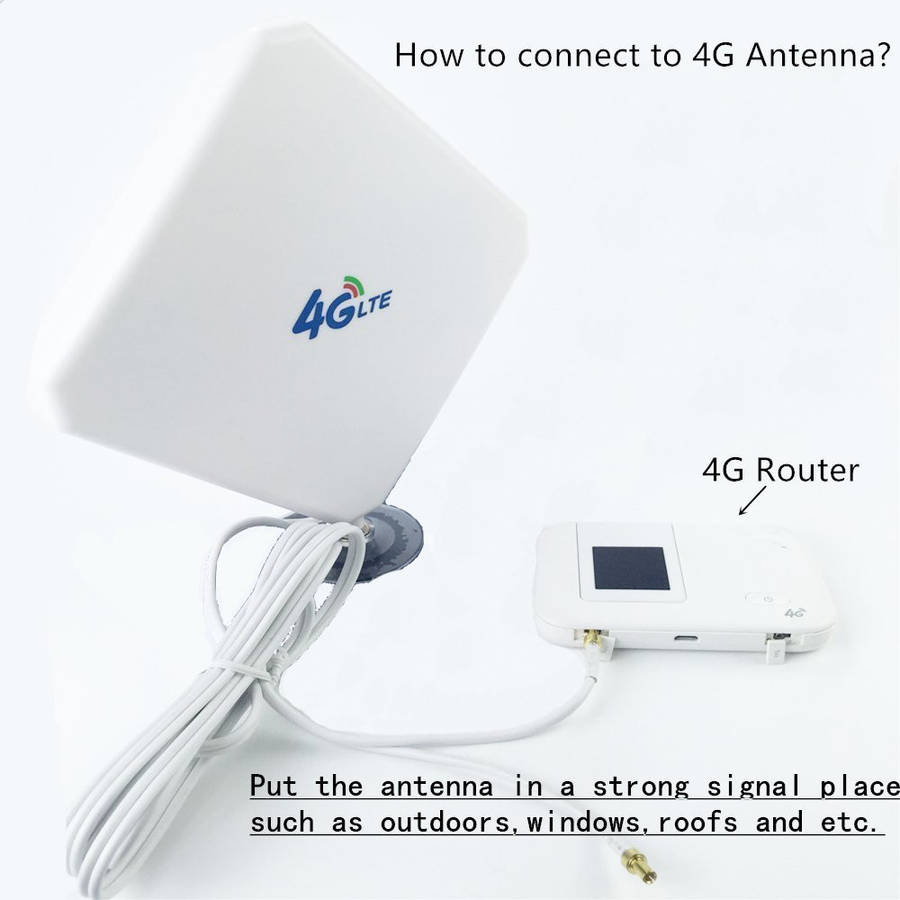

Bakeey 4G LTE Antenna 35dBi High Gain Mobile Signal Booster Amplifier SMA For H



Parameter data
Frequency Range	3G/4G	700--2010MHz  2100-2300MHz  2500-2690 MHz

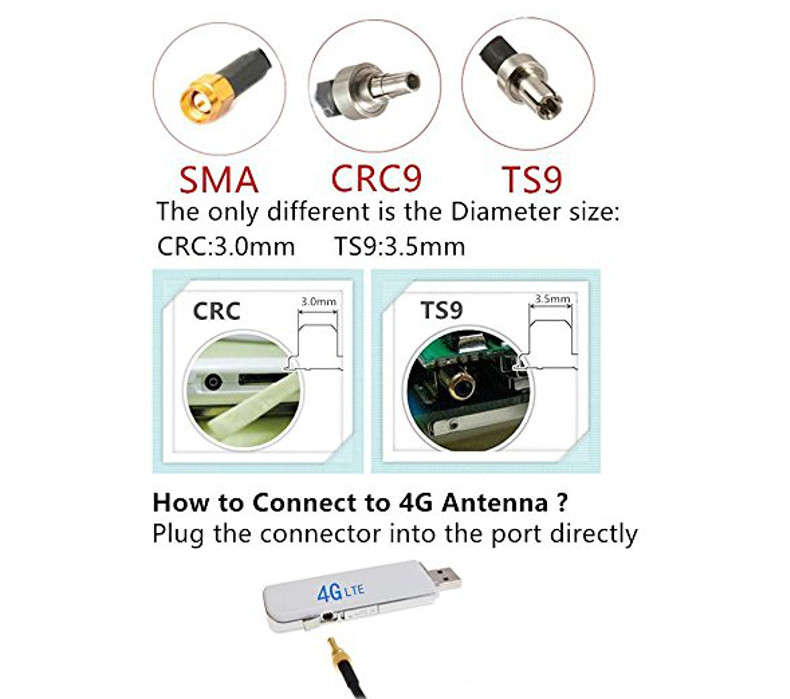

Type	SMA Male
Brand	Bakeey
Electrical Specifications
Polarization Type		Vertical
Gain (dBi)		35dBi
Bandwidth (MHz)		700-2650MHz
Power Capacity (w)		50
Input Impendence (Ω)		50
V.S.W.R		≤1.5
Mechanical Specifications
RF Connector		N-Female N
Dimensions (D*W*H )		14.5*14.5*2.1CM
Cable Length		2M
Radiator		Cuprum
Net weight		290g
Connect Type		TS9
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-40°C ~ 60°C
For Reference		Router of Huawei E5375,E5373
Product included		1* 35dbi 4G Antenna
		1*SMA male antenna
		1*mounting accessories
		1*user manual

If you want the TS9 Plug, please click here:

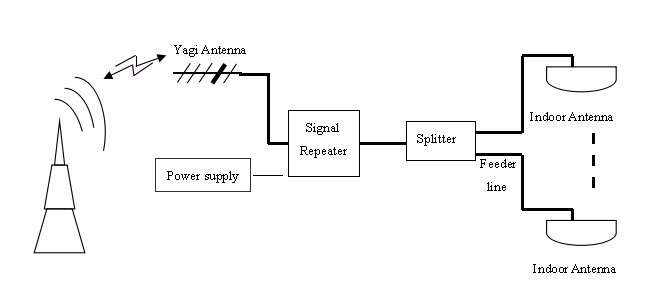

Signal repeater installation diagram:

How to install repeater (very easy and simple):
Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2: Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get the best signal.
Step 3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4: Mount your indoor antenna with signal repeater
step 5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get a satisfied signal.

Note:
It's a 3G/4G Antenna&
