Specifications:
- Input voltage: DC 11-18.0V
AC 100-240V
- charge power: max.50W
- Discharge power: max.5W
- Discharge current range: 0.1~1.0A
- Charge current range: 0.1-5.0A
- Current drain for balancing LiPo: 300mAh/cell
- Data store: max.5 data of batteries
- NiCd/NiMH battery cell count: 1 - 15cells
- LiPo/LiLo/LiFe battery cell count: 1 - 6cells
- Pb battery voltage: 2V~20V

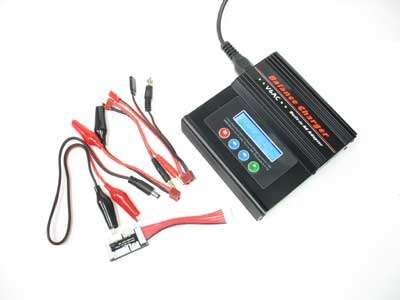

This is the V6AC Battery Manager/Charger, which offers all-in-one charging, discharging, and balancing for not just LiPo's but Ni-CD, Ni-MH, Li-Ion, Li-Fe, and even PB (lead acid) batteries. This charger uses a unique individual cell voltage balancer, which means that an external balancer when charging LiPo's is not required.
Other features include delta-peak detection, fast charge mode, auto charge current limit, capacity limit, 5-slot data storage/recall, temp monitoring, cycling, LCD display, and touch pad keyboard. You can also manage your packs with a PC through the optional USB interface cable (sold separately).
The V6AC charger features an AUTO function that sets the current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's incorrect setting. The V6AC charger can disconnect the circuit automatically and alarm once detecting any malfunction.
The V6AC charger employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging. During the process of discharging, the V6AC charger can monitor and balance each cell of the battery pack individually. Error messages will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
The V6AC charger is adaptable to various types of Lithium batteries, such as Li-ion, Li Po and the new Li-Fe series of batteries. It has fast and storage modes for lithium batteries. 'Fast' charge reduces the duration of charging, while 'Store' state can control the final voltage of your battery, to store for a long time and protect useful life time of the battery.
Features
Charges, Discharges and Balances
For Li-Po, Ni-CD, Ni-MH, Li-Ion and PB Batteries
AC Power Supply Built In
Touch Pad Keyboard
Delta-peak sensitivity
The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your Ni-Cd or Ni-MH battery; especially useful for Ni-MH batteries of low impedance and capacity whenusing the 'AUTO' charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.
Temperature threshold (* Function available with optional temperature probe, which is not included.)
The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated.
Data store/load
A maximum of five batteries' data can be stored for users' convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out this data at any time without any special program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge for battery refreshing and balancing to stimulate the battery's activity
