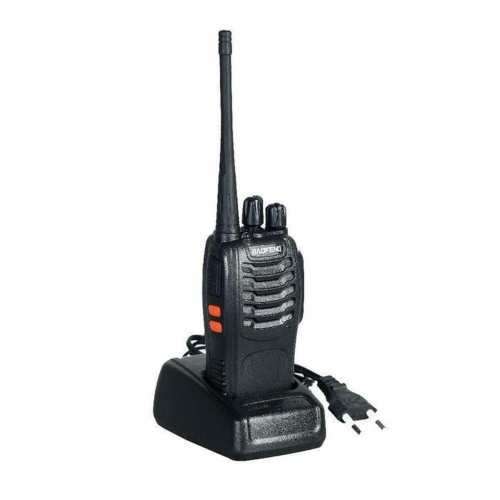

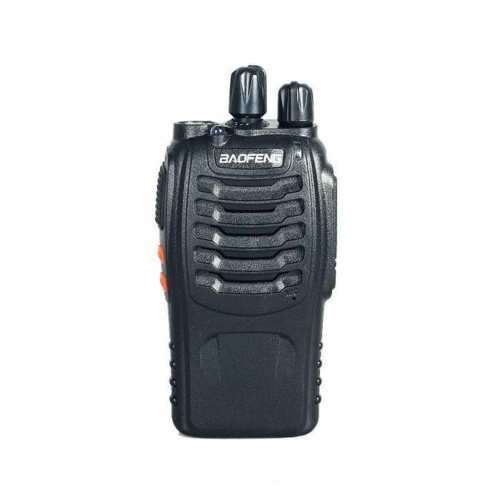

Baofeng Portable Two Way Radio Walkie Talkie

Frequency Uhf400-470 Mhz
Up To 16 Channels
50 Groups CTCSS, 105 Groups Of Standard Dcs
Time-out Timer(Tot)
Broadband/Narrow Band
Battery Saving Function
Busy Channel Lockout (Bcl)
Low Battery Voltage Warning
Programmable By Pc

Function Operation
Squelch Level
The Purpose Of Squelch Is To Mute The Speaker When On Signals Are Present (Squelch Off).
With The Squelch Level Correctly Set, You Will Hear Sound Only While Actually Receiving Signals
(Squelch On). The Squelch Level Can Be Adjusted Via Program Software. The Frequency Of
Squelch Is 0 (On)- 9 (Deep), Steps: 1.

Examining Switch:
When Walkie-talkie Is Set As Scan Via Software, Turn The Channel Selector To Channel 16, After The
5 Sec, The Raolo Will Automatically Detect The Activity Of Scanning Channel From Ch1 To Ch15
Channel (Each Channel Can Be Set Scan Or Not Via Software), When The Signal Is Scanned Channel,
The Radio Will Automatically Stop On The Channel For The Call.
A. Walkie-talkie Will Stay On The Signal Channel When The Signal Disappears And Then After 5 Sec, Keep Scanning The Next Channel.
B. On the off chance that There Are Less Than 2 Channels, It Cannot Scan.
C. On Channel 16, Press And Hold The Ptt And Side Key, It Will Turn On The Scan Or Turn Off TheSweep.
D. On the off chance that The Fm Radio Function Is Activated, It Cannot Scan.

What's in the box

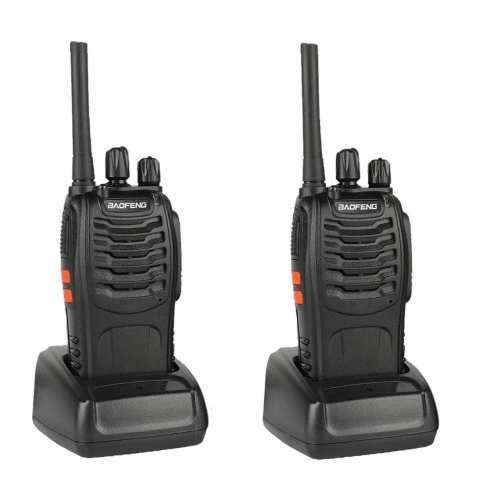

2 x Baofeng Radio
2 x Antenna
1 x Charger
2 x Battery
2 x Earpiece
1 x Users Manual
