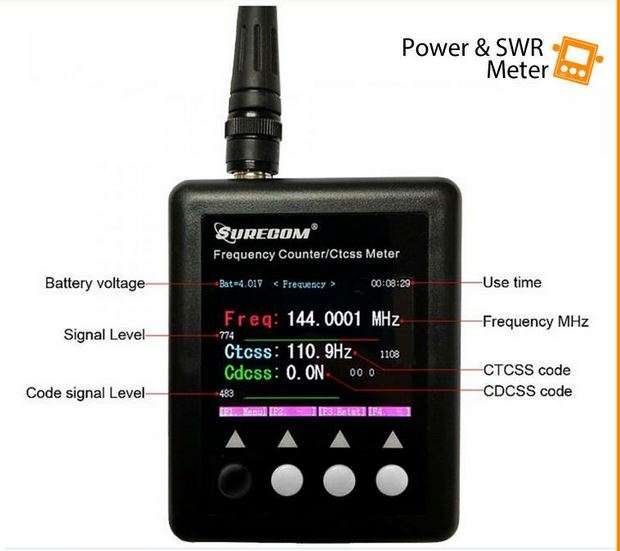

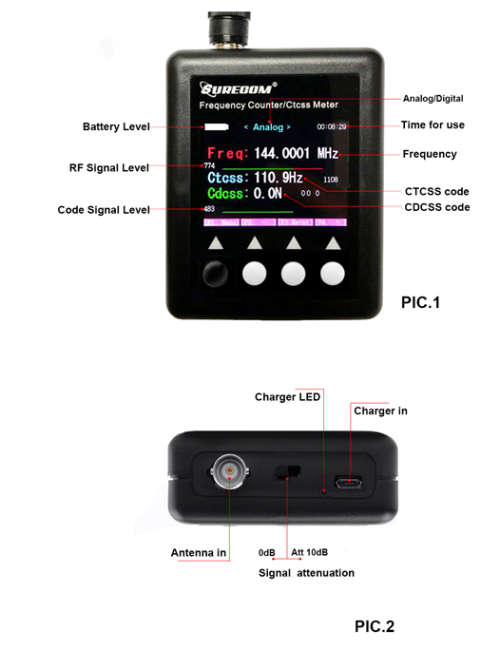

SF401 PLUS Portable Frequency Counter with CTCCSS/CDCS

Feature & Specification:

  Frequency range: 100Mhz-3000Mhz
  Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)
  CTCSS/DCS Decoder
  LCD Dim level setting
  Work by TCXO( Temperature Compensate X'tal (crystal) Oscillator) 2~2.5ppm
  Frequency Response time:  0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)
  TFT Color Display 240 x 320
  Build-in  Li-ion battery
  Net Weight: 113g
  4 buttons control
  Auto power off  1-9minutes
  Charging battery LED indicator


Specifications:

Brand Name: SURECOM HK : SF-401-PLUS

DIGITAL RADIO signal: DMR

Signal  attenuation s.w. -10db

Battery Buily-in level Voltage

TFT LCD: 320 x 240 pixels

Frequency Range:27Mhz -3Ghz

Li-ion Battery build-in : 3.7V 600mah

current consumption: 10ma

TCXO crystal Oscillator : +- 2.5ppm

Changer in: Micro usb +5V

impedance input: 50 Ohm (BNC)

Weight: 113g

Dimensions size :70 x 25 x 90mm
