Brand: Baofeng
Model: UV-5R
Language : English
Frequency Range: 136-174MHZ and 400-520HZ (TX/RX)
Channel No. : 128
Frequency Stability: ±2.5ppm
Antenna: High gain DualBand antenna
Antenna Impedance: 50?
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension(W x H x D): 100 x 52 x 32 mm
Weight: about 560g (including battery, antenna)
Antenna : SMA -Female
Earpiece / mic type : Kenwood Plug type
Battery capacity: 1800mAh
Transmitter
Output power: 4W / 1W (Max 5W)
Modulation Mode: 16k?F3E / 11k?F3E
Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation: 7?W
Adjacent Ch. power: ?-65dB(Wide) / ?-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: ?1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: ?10%
Package included :

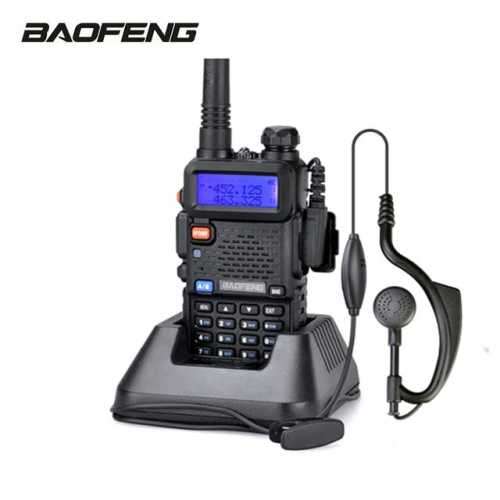

1 x Baofeng UV-5R Dual Band Handheld Radio
1 x 7.4V 1800mah Battery Pack
1 x Band Antenna
1 x Desktop Charger
1 x AC/DC Adapter (100-240V)
