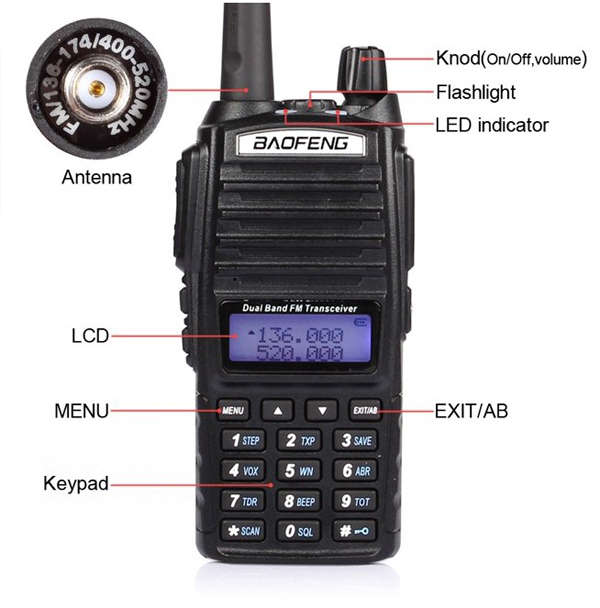

Frequency Range : 136-174 & 400-520MHz
Dual Band, Dual Display, Dual Frequency,Dual Standby
A/B band independent operation
128 groups channels storage
Shortcut menu operation mode
VFO & Memory channels scan
Emergency Alarm
Tri-color background light selectable
0~9 grades VOX selectable

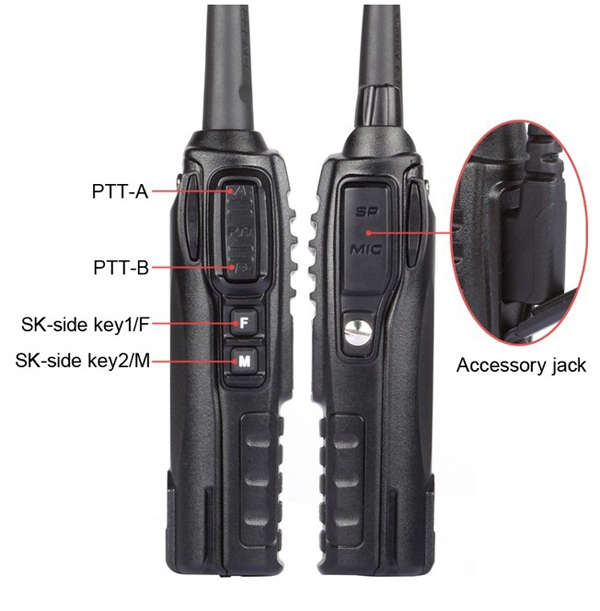

PTT & ANI ID
FM radio and 25 stations storage
1750Hz Brust
Tone Time-out Timer
Channel Monitor
Battery Saver
Keypad Lock
Channel Step : 2.5 / 5 / 6.25 / 10 / 12.5 / 25 KHz
Low Battery Alert
ROGER SET
Emergency Alert
25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz)
Large LCD Display
LED Flashlight
Hight /Low RF Power Switchable
Voice companding
50 CTCSS/ 104DCS coder & tone searching
PC programmable
Wide/Narrow Band(25kHz/12.5kHz)
Transmitter time-out timer(TOT)
High/Low TX power selectable
Specification :
Frequency Range | 65-108MHz(FM Receive only) |
136-174MHZ and 400-520MHZ (TX/RX) | |
Channel No. | 128 |
Frequency Stability | ±2.5ppm |
Antenna | High gain DualBand antenna |
Antenna Impedance | 50 |
Operating Voltage | DC 7.4V |
Mode of operation | Simple or semi-duplex |
Antenna | SMA -Female |

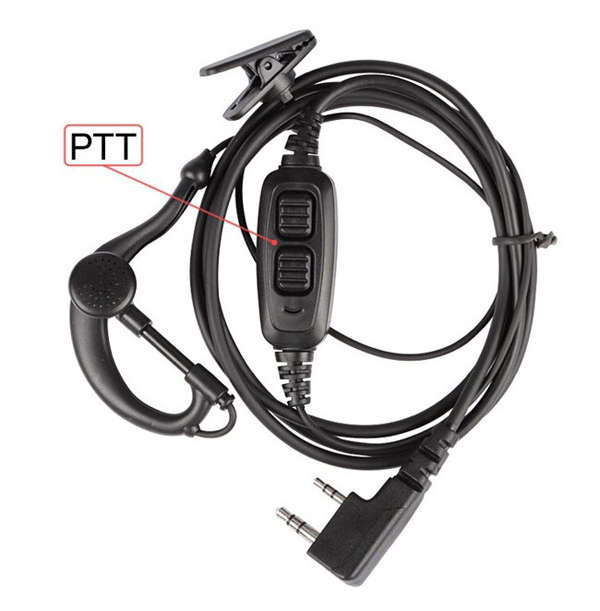

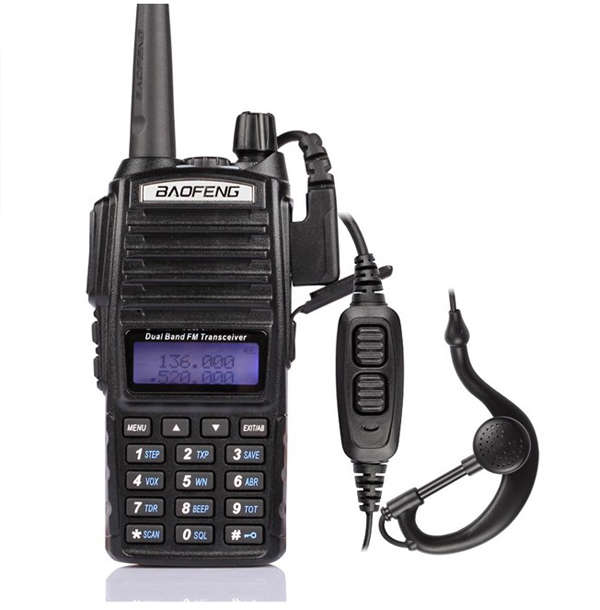

Earpiece / mic type | Kenwood Plug type |

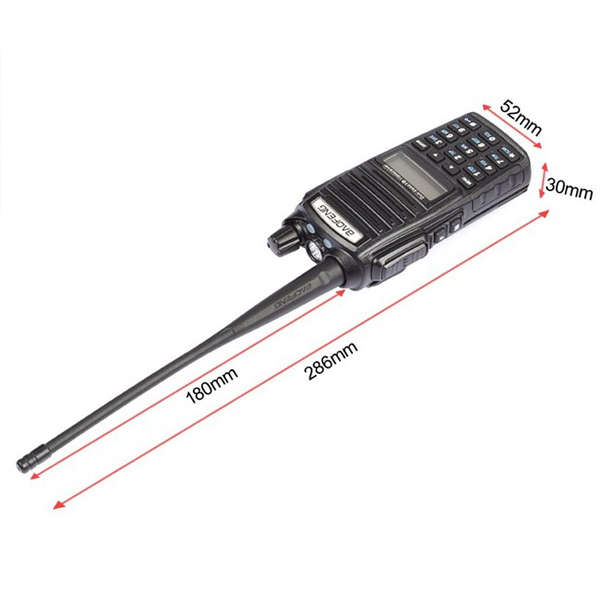

Dimension(W x H x D) | 132 x 60 x 35 mm (not included antenna) |
Weight | 238g(including battery, antenna) |
Power adapter | Input : AC100-240V, 50-60Hz; Output : DC10V/500mA; Plug Type : EU/US plug charger and AU/UK adaptors all available |
Transmitter | |
Output power | 5W / 1W (Max 5W) |
Modulation Mode | 16k F3E / 11k F3E |
Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
Spurious Radiation | 5W |
Adjacent Ch. power | 65dB(Wide) / 60dB(Narrow) |
Pre-emphasis characteristics | 6dB |
Current | 1.6A(5W) |
CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
Intermediation sensitivity | 8-12mv |
Intermediation distortion | 10% |
