Features:
1. Dual-band handheld transceiver with display function menu on the display "LCD".
2. Commercial FM radio receiver (65 MHz~108 MHz).
3. Frequency Mode/Channel Mode.
4. DTMF encoded.
5. Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.
6. CTCSS & DCS Scanning.
7. CTCSS & DCS Direct input.
8. Function "voice operated transmission"
9. Alarm function.
10. Up to 128 memory channels.
11. Broadband(Wide)/Narrowband(Narrow), selectable.
12. High power / low (5 W/1 W) selectable.
13. Display illumination and programmable keyboard.
14. Function "beep" on the keyboard.
15. Dual Standby/dual reception.
16. Crossband reception/transmission.
17. Selectable Frequency Step
12.5/5/6.25/10/12.5/20/25 kHz.
18. Function "OFFSET"(frequency offset for repeater access).
19. Frequency reverse.
20. Battery saving function "SAVE"
21. Timer transmission "TOT" programmable.
22. Selecting the Scan Mode.
23. Function Busy Channel Lock "BCLO"
24. Built-in RX CTCSS/DCS scan.

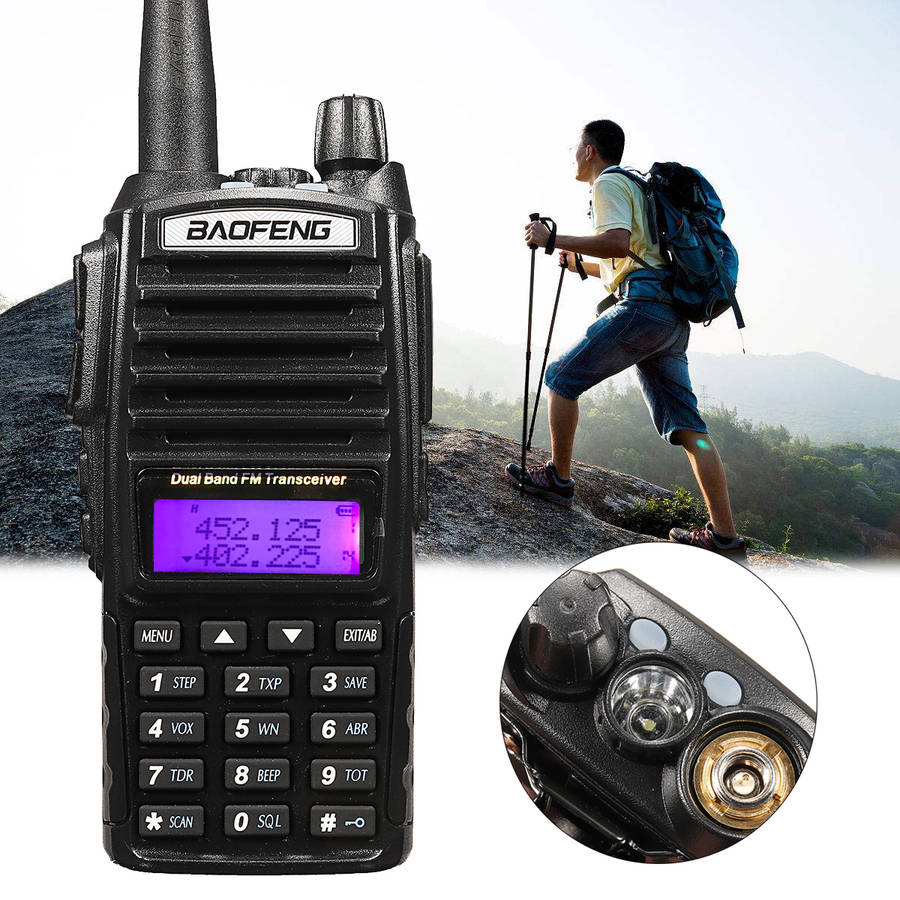

25. Built-in LED flashlight.
26. Programmable by PC.
27. Level Threshold "Squelch" adjustable from 0 to 9.
28. Tone end of transmission.
29. Built-in key lock.
Specifications:
Frequency range:
[RX/TX] VHF: 136 – 174MHz
[RX/TX] UHF: 400 – 520MHz
Memory channels:128 Channels
Channel Spacing : 25KHz (wide band)12.5KHz (narrow band)
Sensitivity : ≤0.25μV (wide band) ≤0.35μV (narrow band)
Operation Voltage : 7.4V DC ±20%
Frequency step : 2.5, 5, 6.25, 10, 12.5, 20, 25KHz
Antenna Impedance: 50Ω
Frequency Stability : 2.5ppm
Audio Power Output : 1000mW/10%
Operating temperature: -20°C to + 60°C
Supply voltage: Rechargeable Lithium-Ion mAh 7.4V/1800
Consumption in standby: 380mA
Consumption in transmission: ≤1.4A
Mode of operation: Simplex or semi-duplex
Duty cycle: 03/03/54 min.(Rx / Tx / Standby).
Transmitter:
RF power: 7W/5W/1W
Type of modulation: FM
Emission class: 16KΦF3E/11KΦF3E(W/N)
Maximum deviation: ≤±5 kHz/±2.5 kHz(W/N)
Spurious emissions: <-60 dB
Receiver:
Receiver sensitivity: 0.2μV(at 12 dB SINAD)
Intermodulation: 60 dB.
Audio output: 1W
Maximum deviation: ≤±5 kHz/±2.5 kHz(W/N)
Spurious Radiation: ☒65dB

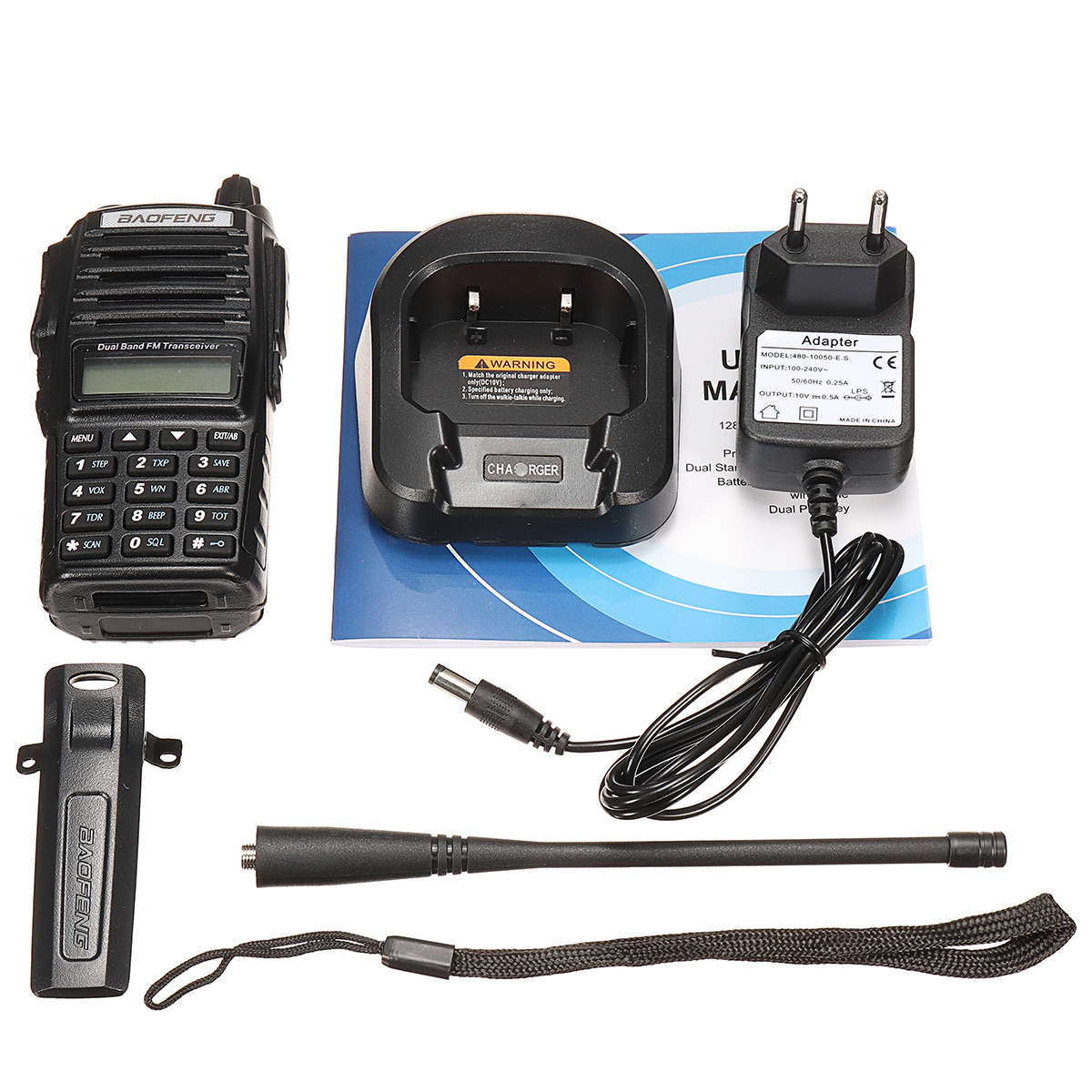

Package Included:
1 x Transceiver Unit
1 x Battery Pack
1 x Antenna

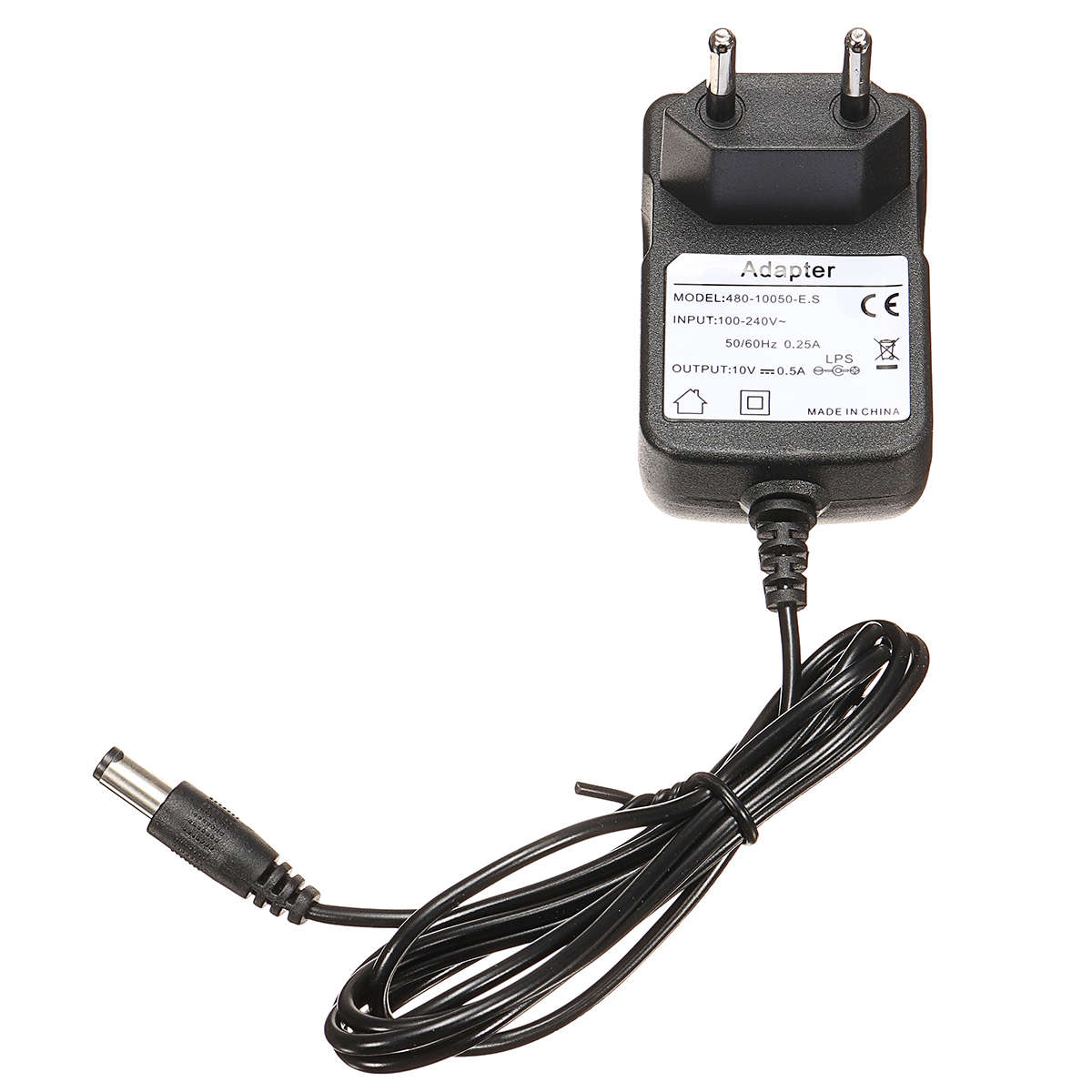

1 x Power Adapter(We will send you a plug adapter according to your country.)

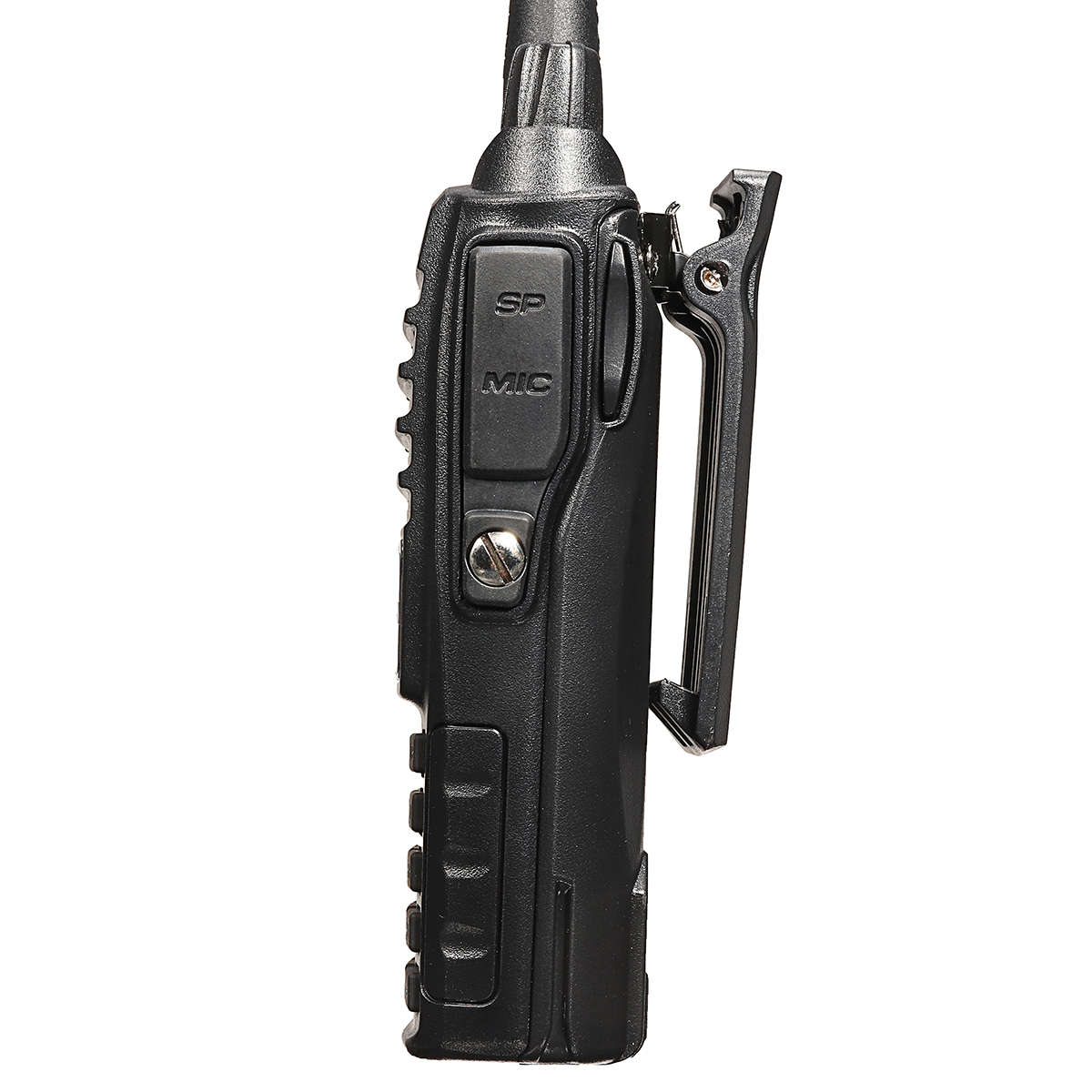

1 x Belt Clip
1 x Hand Strap
1 x Drop-in Charging Tray

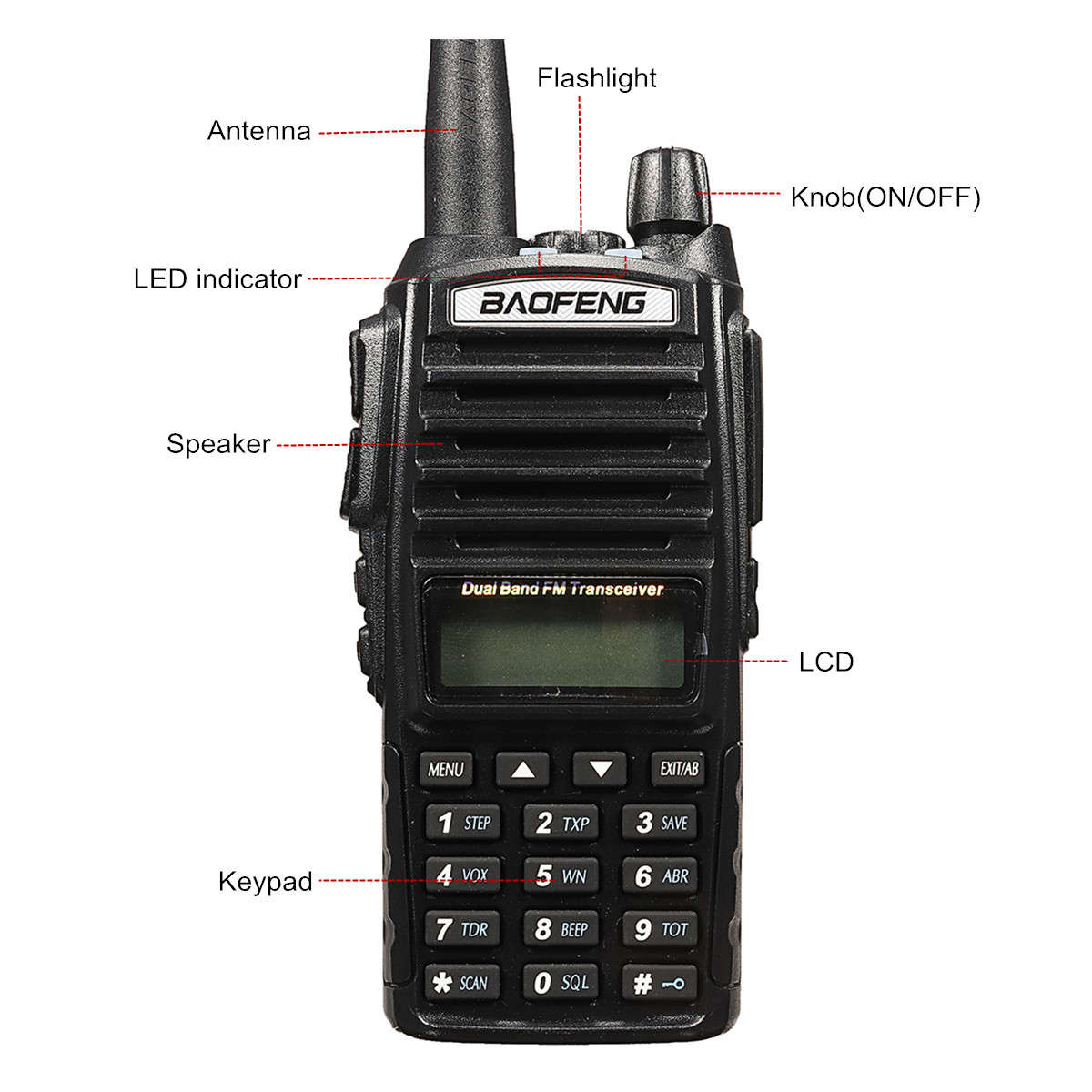

1 x User ManualDetail Pictures:
