VHF 136-174 (RX/TX) UHF 400-470MHz (RX/TX) dual band
. Mode: VFO, Channel Mode
. DTMF tone of transmitting code
. Lithium-ion battery with high capacity
. Commercial FM radio receiver (65 MHz ~ 108MHz)
. Incorporates 104 codes "DCS" and 50 privacy codes "CTCSS" programmable
. CTCSS and DCS setting in different MENUs
. Priority Channel Scanning
. Noise Reduction
. Function "VOX" (voice operated transmission)
. Auto LCD illumination
. Channel mode display (Name, Frequency, Channel#)
. Scan resume method (TO/CO/SE)
.PTT-ID (Press or release the PTT to transmit code; Press and release the PTT to transmit code)
. Under frequency mode, band shift setting for accessing repeater
. Offset frequency range 0-69.9875 MHz
. Direct entering numerical key to select MENU
. Channel capacity 99
. Reverse function
. Audio commanding
. PC programming
. Emergency Alarm function
. Frequency step 5/6.25/10/12.5/20/25kHz
. Battery saving function
. Low battery warning
. Transmitter transmission (TOT)
Specification:
General
Frequency Range: VHF 136-174 MHz (Rx/Tx). UHF 400-470MHz (Rx/Tx);
65MHz ~ 108MHz (Only commercial FM radio reception)
Memory channels: Up to 99 channels
Frequency stability: 2.5ppm
Frequency step: 5KHz/6.25KHz/10KHz/12.5KHz/20KHz/25KHz
Antenna impedance: 50
Operating temperature: -20 centigrade to +60 centigrade
Supply voltage: Rechargeable Lithium-ion 7.4V/2000mAh
Mode of Operation: Simple or semi-duplex
Duty cycle: 03/03/54 min (Rx/Tx/Standby)
Dimension: 120x58x35 mm
Weight: 210g (included battery+ antenna)
Transmitter
RF power: 5W/1W
Type of modulation: F3E
Maximum deviation: ≤ ±5kHz / ≤ ±2.5kHz(W/N)
Dock Battery charger
Input: AC220V, 50-60Hz; Output: DC10V/500mA; Plug Type: US
Contains:

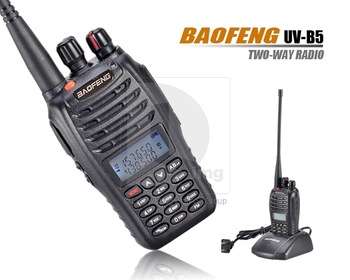

1x BAOFENG UV-B5 FM Two-Way Radio Body (not included battery)
1x 7.4V/2000mAh Battery
1x Antenna
1x Belt Clip
1x Battery Charger
1x Hand Strap
User Manual
