Features:
1. Dual-band handheld transceiver with display function menu on the display ldquoLCDrdquo.
2. DTMF encoded.
3. Lithium-ion battery with high capacity.
4. Commercial FM radio receiver (65MHz~108MHz).
5. Incorporates 105 codes ldquoDCSrdquo and 50privacy codes ldquoCTCSSrdquo programmable.
6. Function ldquoVOXrdquo(voice operated transmission).
7. Alarm function.
8. Up to 128 memory channels.
9. Broadband (Wide)/Narrowband (Narrow), selectable.
10. High/low power selectable.
11. Display illumination and programmable keyboard.
12. Function ldquobeeprdquo on the keyboard.
13. Dual Watch/dual reception.
14. Selectable Frequency Step.
15. Function ldquoOFFSETrdquo (frequency offset for repeater access).
16. Battery saving function.
17. Timer transmission ldquoTOTrdquo programmable.
18. Selecting the Scan Mode.
19. Busy Channel Lock.
20. Built-in RX CTCSS/DCS scan.
21. Built-in LED flashlight.
22. Programmable by PC.
23. Level Threshold ldquoSquelchrdquo adjustable from 0 to 9.
24. Cross band reception.
25. Tone end of transmission.
26. Built-in key lock.
Specification:| General |
| Frequency scope | VHF: 136MHz-174MHz (Rx/Tx)
UHF: 400MHz-520MHz (Rx/Tx)
65MHz-108MHz (Qnly commercial FM radio reception) |
| Memory channels | Up to 128 channels |
| Frequency stability | 2.5ppm |
| Frequency step | 2.5/5/6.25/10/12.5/25KHz |
| Antenna impedance | 50 OHM |
| Operating temperature | -20degC-60degC |
| Supply voltage | Rechargeable Lithium-Ion 7.4V |
| Battery Capacity | 2800mAh |
| Consumption in standby | <=75mA |
| Consumption in reception | 380mA |
| Consumption in transmission | <=1.4A |
| Mode of operation | Simplex or semi-duplex |
| Dimensions | 110 x 58 x 32mm |
| Weight | 130g (approximate) |
| Transmitter |
| RF power | 8W/1W |
| Modulation type | FM |
| Emission class | 16K oslashF3E/11KoslashF3E(W/N) |
| Maximum deviation | <=plusmn5KHz/<=plusmn2.5KHz(W/N) |
| Spurious emission | <-60dB |
| Receiver |
| Receiver sensitivity | 0.2microV (at 12 dB SINAD) |
| Inter modulation | 60dB |
| Audio output | 1000mW |
| Adjacent channel selectivity | 65/60dB |
Package included:
1 x Portable radio
1 x Inductively loaded antenna
1 x 2800mAh Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x The Sling
1 x User's manual
1 x USB Cable

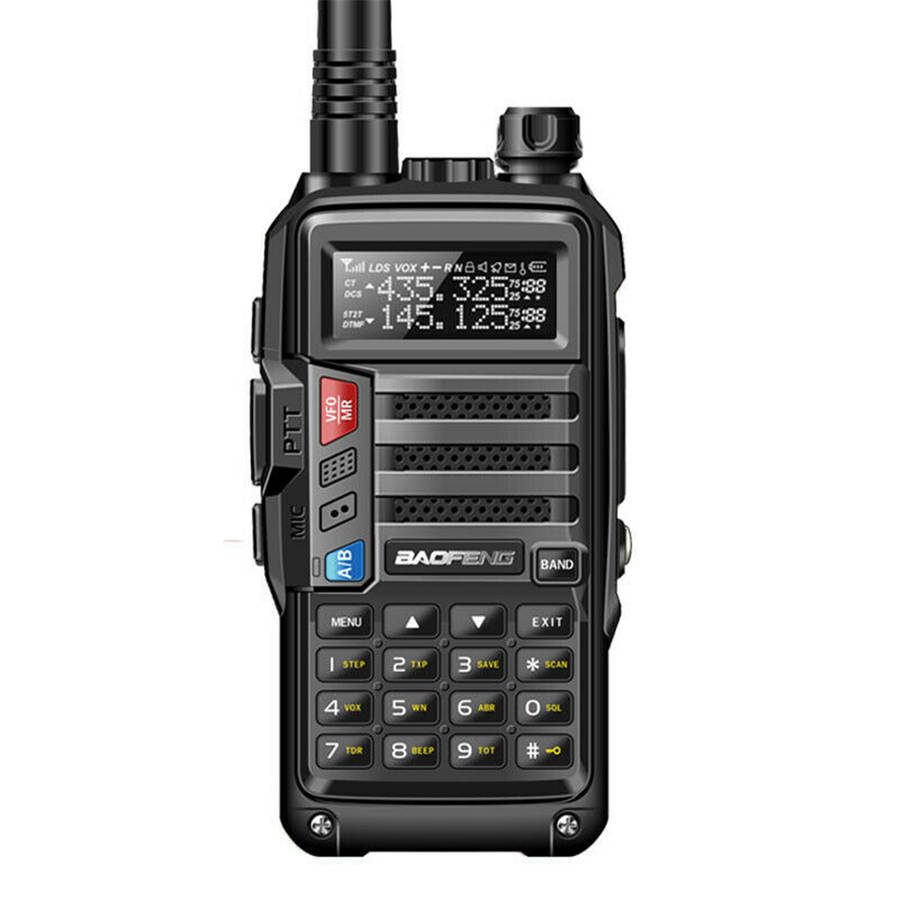

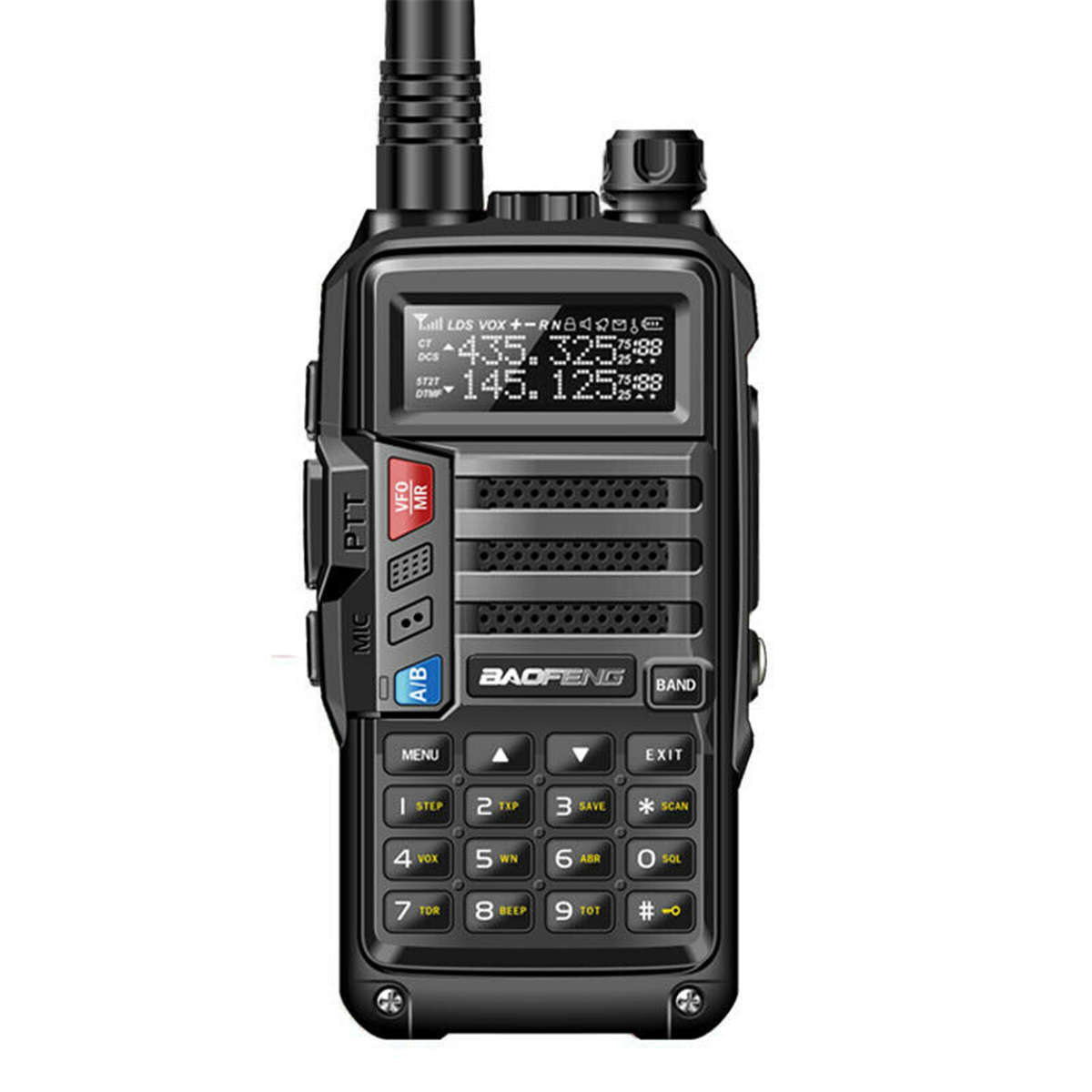

Detail Pictures:
