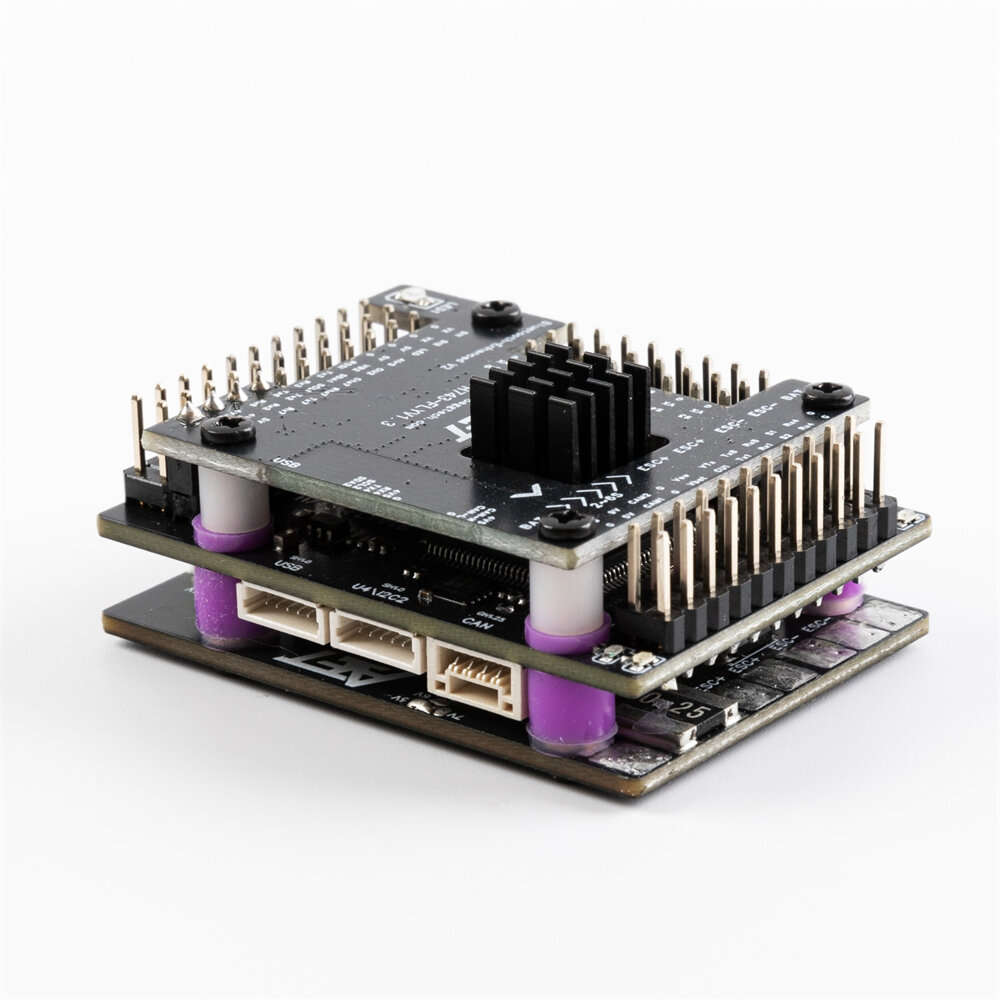

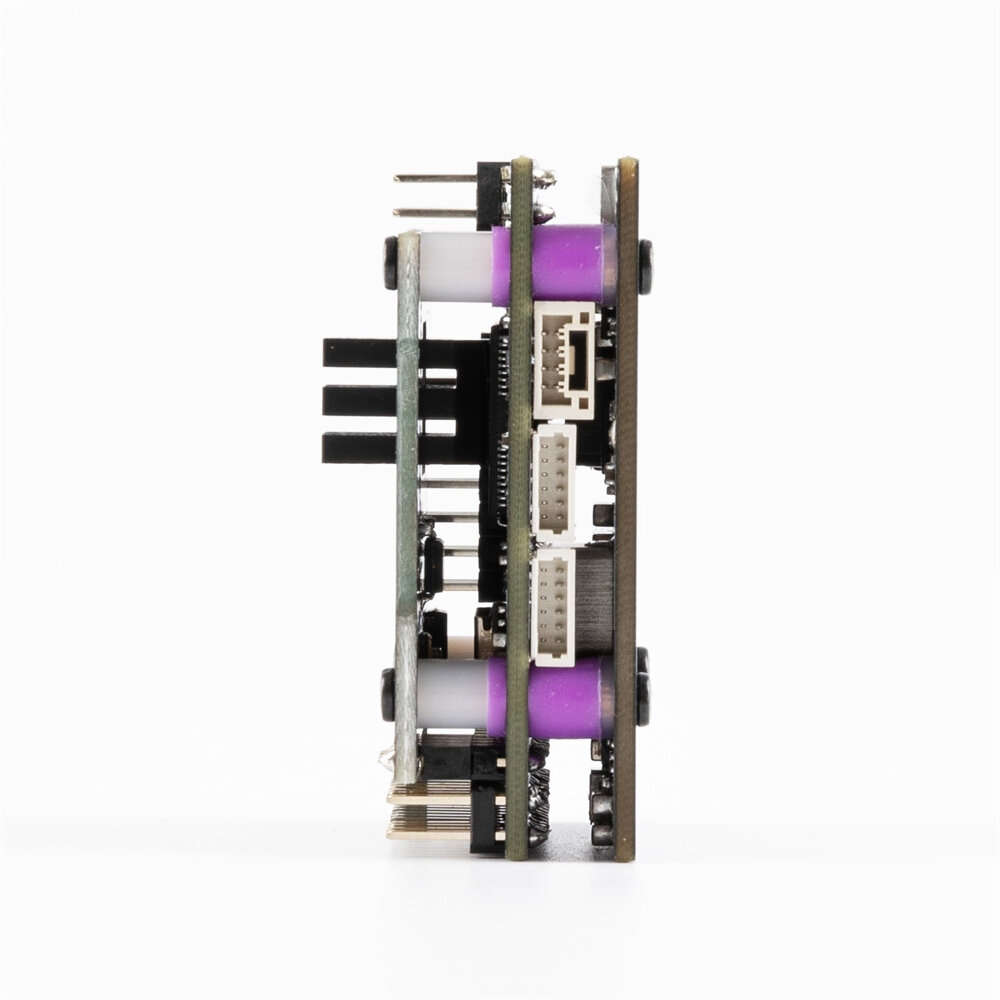

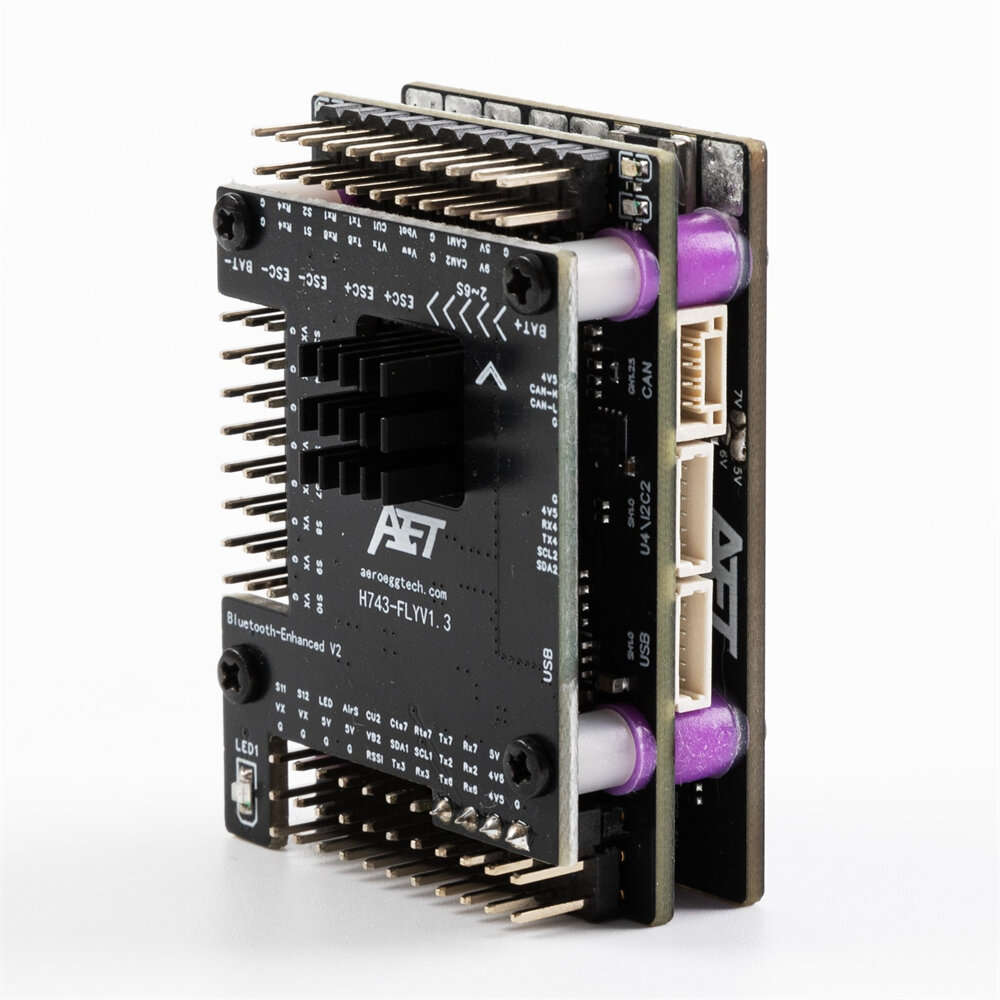

Name: Basic Flight Controller+GPS+Airspeed Meter Combo - AET H743 Basic Automation Flight Controller Suppo
SKU: 2032549-POA11421755
Price: 2720.51 ZAR
Availability: InStock

Basic Flight Controller+GPS+Airspeed Meter Combo - AET H743 Basic Automation Flight Controller Suppo

New

1 available

Indicative market price: R4,194.55

Only 1 left – grab it before it’s gone!

R2,720.51

35% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10362

95.68 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

2032549-POA11421755

Bob Shop ID

679088083

Features:
- STM32H743 microcontroller
- Dual ICM42688P IMUs
- 13s PWM / Dshot outputs (13th is setup for serial LED)
- 8s UARTs, one with CTS/RTS flow control pins
- 1s CAN
- Dedicated USB board
- DPS310 or SPL06 barometer
- 5V/6V/7V 10A Servo rail BEC
- 9V 2A BEC for VTX, GPIO controlled
- 5V 4A BEC
- MicroSD Card Slot
- Selectable dual camera input
- AT7456E OSD
- 2x I2Cs
- Integrated power monitor

Specification:
Model: The AET-H743-Basic Flight Controller
Dimensions: 36 x 47 x 17 mm
Weight: 45g
Main Control Model: STM32H743VIT6
IMU0: ICM-42688-P
IMU1: ICM-42688-P
Barometer: SPL06
OSD Chip: AT7456E
UART Interface: 8 channels UART
I2C Interface:2 channels
ADC Interface: 1 channel voltage measurement/2 channels current measurement/1 channel airspeed measurement
PWM Interface: 12 channels universal/1 channel LED
Flight Status Indicator Light: 1 Green/1 Red/1 Blue
RSSI Input: 1 channel
Power Supply: 7-36V (2-6S Lithium battery)
Voltage Detection: Internal
Current Detection: Internal
VX Adjustable Power Supply: 5/6/7V adjustable, up to 10A
9V Fixed Power Supply: Up to 2A
5V Fixed Power Supply: Up to 4A

Package included:
AET-H743-Basic Combo:
1x AET H743 Basic Flight Controller

AET-H743-Basic+Airspeed Meter Combo:
1x AET H743 Basic Flight Controller
1x Airspeed Meter

AET-H743-Basic+GPS Combo:
1x AET H743 Basic Flight Controller
1x GPS

AET-H743-Basic+GPS+Airspeed Meter Combo:
1x AET H743 Basic Flight Controller
1x Airspeed Meter
1x GPS
