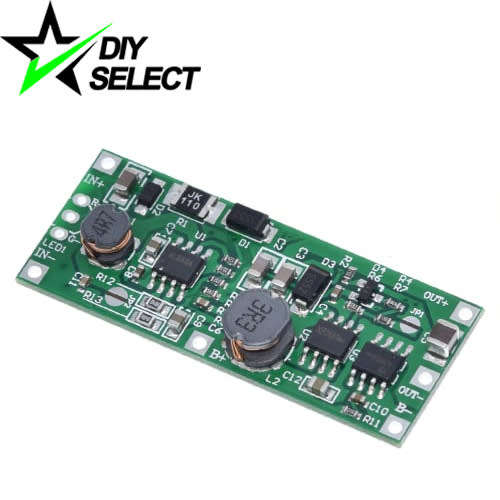

Battery 18650 1S Step Up UPS Module 5-12V to 12V **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Step Up UPS Module 5-12V to 12V:
Specifications:
Properties: UPS Voltage Converter Module
Working Voltage: DC 5-12V
Output Voltage: DC 9/12V
Output Power: 9W/12W
Support Battery: 3.7V Lithium or polymer battery 15Ah(Max)
Working Temperature Range: -40 to 85
Working Humidity Range: 0%-95% RH
Size: 50 x 20 x 6.3mm
1. Connect right input voltage at input terminal
2. Check output voltage by voltmeter and ammeter
3. Connect battery at B+ and B-
Note:
Its max output current is 1A and can not keep output 1A.
The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
Users can install a common anode Red-Blue LED by yourself as charging indicators. Blue light indicates whether there is a load at output. Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
Due to the large current, it is recommended to use a thicker wire. Wire cross-section greater than 1.5 square millimeters.
Application:
Ordinary power supply; Battery charger; Mobile power; Power conversion; Infrared alarm; Camera. Network equipment such as switches; Router; Battery car modification
