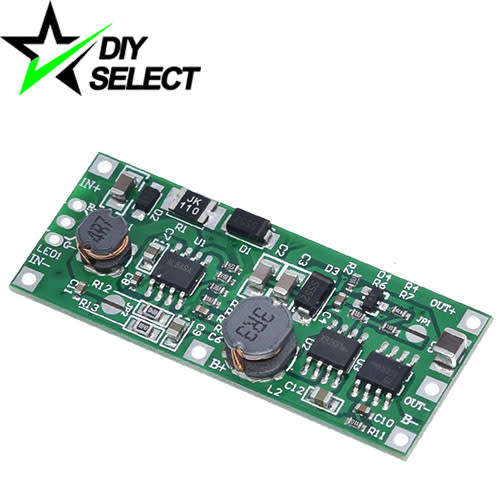

Name: Battery 18650 1S Step Up UPS Module 5-12V to 12V **LOCAL STOCK**
SKU: BAT433
Price: 79.00 ZAR
Availability: SoldOut

Battery 18650 1S Step Up UPS Module 5-12V to 12V **LOCAL STOCK**

3 were available / new

R79.00

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8469

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

BAT433

Bob Shop ID

579388350

Step Up UPS Module 5-12V to 12V:

Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337

Specifications:

Properties: UPS Voltage Converter Module
Working Voltage: 5-12V DC
Output Voltage: 9/12V DC
Output Power: 9W/12W
Support Battery: 3.7V Lithium or polymer battery 15Ah(Max)
Working Temperature Range: -40 to 85
Working Humidity Range: 0%-95% RH
Size: 50 x 20 x 6.3mm

Instructions:

1. Connect right input voltage at input terminal
2. Check output voltage by voltmeter and ammeter
3. Connect battery at B+ and B-

Please note to change from default 12V to 9V output you must unsolder the JP1 connection on the board.
Please note to change from default 0.5A to 1A charging current you must solder the JP2 connection on the board.

Note:

Its max output current is 1A and can not keep output 1A.
The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
Users can install a common anode Red-Blue LED by yourself as charging indicators. Blue light indicates whether there is a load at output. Keep Red is charging. There is no battery if Red flashing. Red OFF if charged.
Due to the large current, it is recommended to use a thicker wire. Wire cross-section greater than 1.5 square millimeters.

Application:

Ordinary power supply; Battery charger; Mobile power; Power conversion; Infrared alarm; Camera. Network equipment such as switches; Router; Battery car modification
