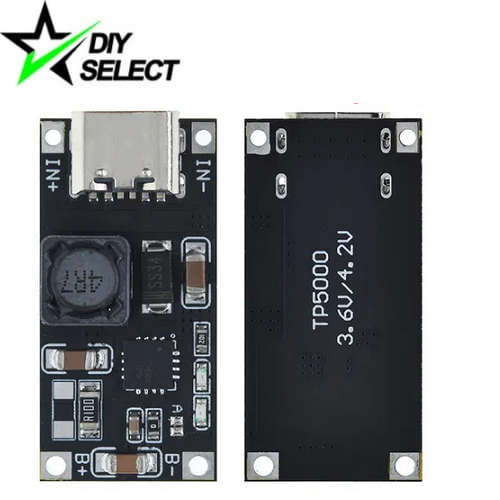

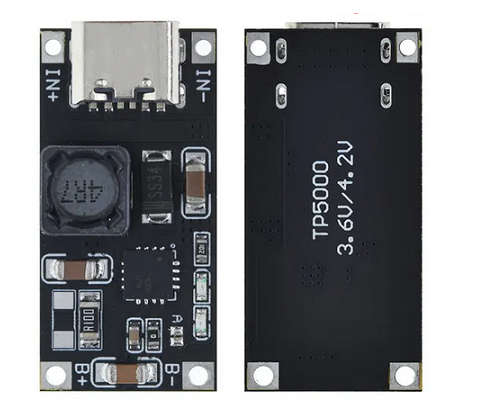

Battery 18650 Charger 3.6V or 4.2V 1s 1A TP5000 Black Type-C USB:
Specifications:
Input Voltage: 4.5 - 7V (Recommended not to exceed 7V)
Output Voltage: 3.6V / 4.2V DC (Default 3.6V)
Charge Current: 1A (Default max)
Size: 30 x 15 x 4.2mm
LED Indicator: Charging-Red, Charged-Green
Features:
Charging for Lithium battery(4.2V) and Lithium iron phosphate battery (3.6V)

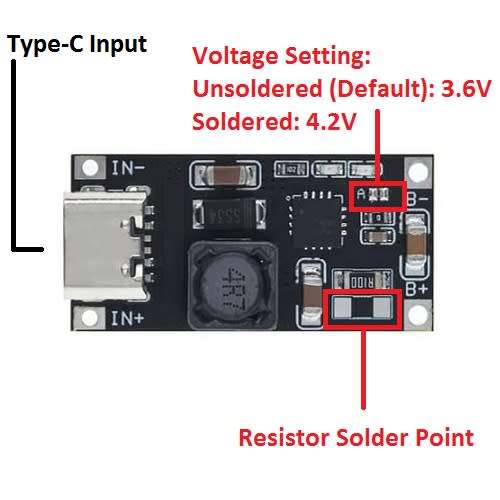

Switch mode:
1. A Welding point OFF for Lithium iron phosphate battery with output 3.6V (Default)
2. A Welding point ON for Lithium iron phosphate battery with output of 4.2V
Adjust output current (need to modify two resistance value on mark):
1. Default welded 1pcs R100(0.1ohm) resistor with output 1A (max)
2. Welding 1pcs 0.2ohm resistor next to R100 for output 1.5A (max)
3. Welding 1pcs 0.1ohm resistor next to R100 for output 2A (max)
4. Removed R100 and welding 1pcs 0.2ohm resistor on its place and output 0.5A
5. It requires additional heat sink if output current more than 1A.
