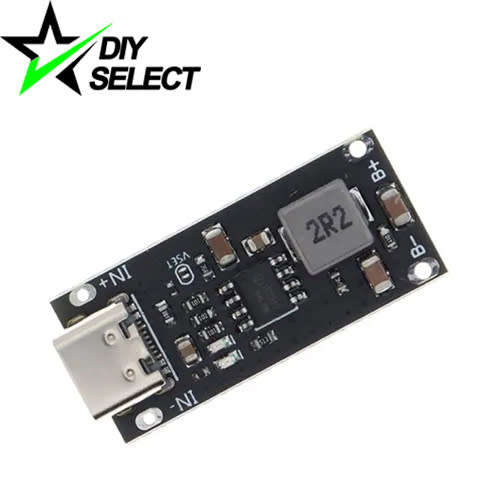

Name: Battery 18650 Fast Charger Board Type C Input IP2312 **LOCAL STOCK**
SKU: BAT456
Price: 27.00 ZAR
Availability: SoldOut

Battery 18650 Fast Charger Board Type C Input IP2312 **LOCAL STOCK**

5 were available / new

R27.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8400

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

BAT456

Bob Shop ID

618044707

Battery 18650 Fast Charger Board Type C Input:

Specifications:

Input Voltage Range: 4.5 - 5.5V (USB Type C input)
Charging Current: Default 3A, remove resistor to convert to 2A. For 1A output add a 135K Resistor
Charging Cut-off Voltage: 4.2V Default (Can be changed to 4.35V by soldering the small older points together on the board)
Led Indicator: Red: Charging; Blue: Full
Size: 32 x 15mm

IP2312 Chip adopts the complete CC/CV charging mode
When the battery voltage is lower than 3V, it enters trickle charging mode and charges the battery with a charging current of 100mA.
When the battery voltage is greater than 3V, it enters the constant current charging mode to charge the battery with the set constant current charging current.
When the battery voltage is close to 4.2V and the charging current is less than 300mA, the battery enters the constant voltage charging mode. After entering the constant voltage mode, stop charging every 4 minutes and check whether the battery voltage is higher than 4.15V. If it is higher than 4.15V, stop charging; Otherwise, continue to charge, and then check after another 4 minutes.
When the battery is fully charged, if it detecteds that the battery voltage is lower than 4.1V, it will start to charge the battery again.

Note that this unit is not suitable for 3.2V lithium iron phosphate battery. There is no battery protection function.
