Battery 18650 Balance Board 7s 4.2V:
Category: 1100312645 / 1104312645 - Battery 18650
Specifications:
Balance Voltage for each single cell: 4.2V
Balance Current for each single cell: 66mA
Size: 37 x 26mm
Balancer is just a Auxiliary function, the balancing means when the battery charging, each series battery needs the same voltage. When ONE cell voltage get 4.2V , the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.

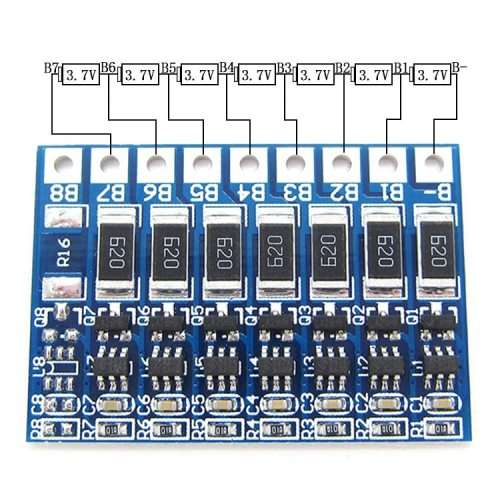

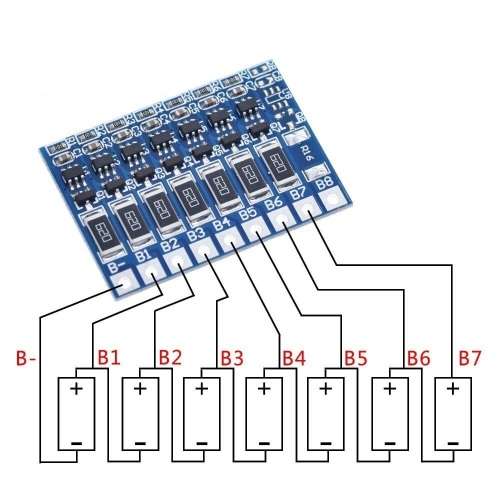

Welding Points:
B7 : Connect battery positive
B6 : Connect the point between battery 6 and battery 7
B5 : Connect the point between battery 5 and battery 6
B4 : Connect the point between battery 4 and battery 5
B3 : Connect the point between battery 3 and battery 4
B2 : Connect the point between battery 2 and battery 3
B1 : Connect the point between battery 1 and battery 2
B- : Connect battery negative
