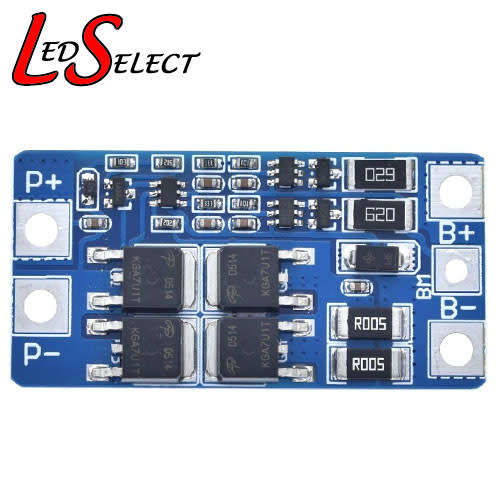

Battery 18650 Protection and Balance Board 2s 10A:
Category Code: 1100312645 / 1106312645 - Battery 18650
Specifications:
Model: HX-2S-JH20
Overcharging Range: 4.25 - 4.35V
Over Voltage Range: 2.5 - 3V
Maximum Working Current: 10A
Maximum Instantaneous Current: 20A
Static Current: less than 10uA
Resistance: less than 300 m Ω
Charging Voltage: 8.4 - 9V
Size: 46.7 x 23 x 3.15mm
Welding point description:
B + battery anode
B - connect battery negative terminal
MMB connect battery 1 to battery 2
P + charging/discharge correct poles (charging end/discharge end sharing)
P - charging/discharge terminal negative terminal (charging end/discharge end sharing)
