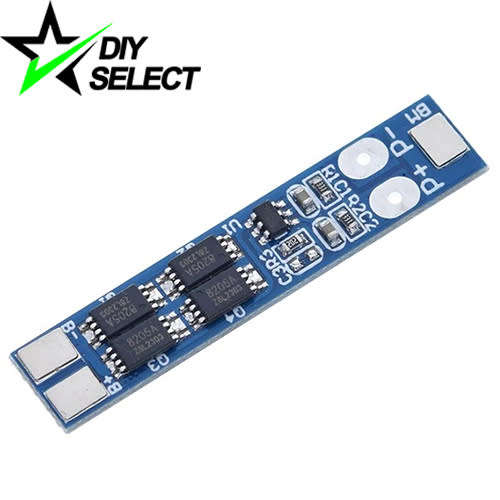

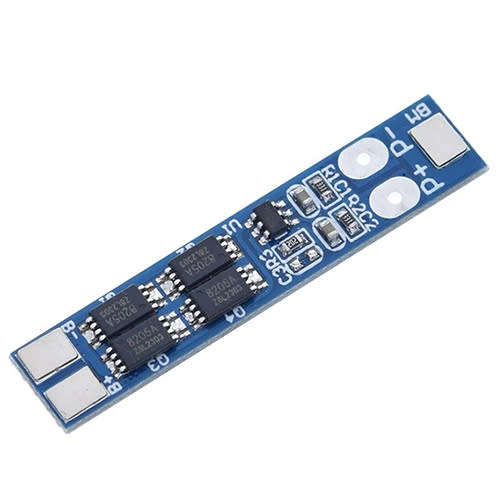

Battery 18650 Protection and Balance Board 2s 8A:
Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:
Model: HX-2S-A10
Maximum Working Current: 8A
Maximum Instantaneous Current: 16A
Static Current: less than 10uA
Resistance: less than 300 m
Charging Voltage: 8.4 - 9V
Overcharging Range: 4.25 - 4.35V
Over Voltage Range: 2.5 - 3V
Short Circuit Protection: to protect and restore must charge
Size: 41 x 8 x 2.2 mm

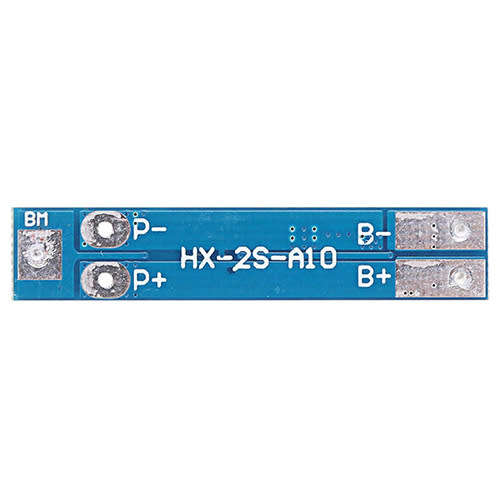

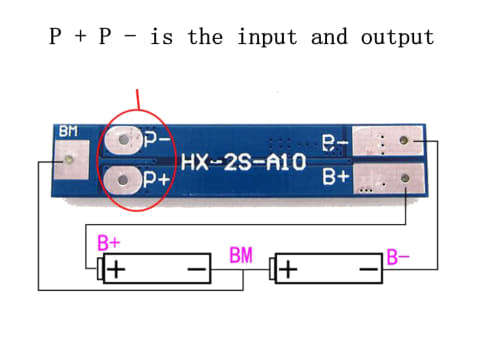

Welding point description:
B + battery anode
B - connect battery negative terminal
BM connect battery 1 to battery 2
P + charging/discharge correct poles (charging end/discharge end sharing)
P - charging/discharge terminal negative terminal (charging end/discharge end sharing)
