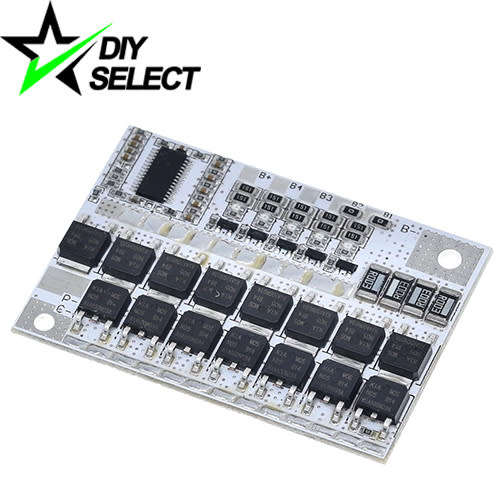

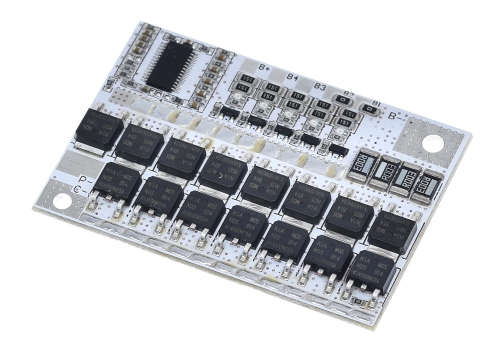

Battery 18650 Li-ion Protection and Balance Board 3s 12.6V 100A **LOCAL STOCK**

Battery 18650 Protection Board 3s 12V 100A:

Specifications:

Single Cell Battery Overcharge Protect Voltage: 4.21 - 4.29V
Single Cell Battery Overcharge Protect Recover Voltage: 4.14 - 4.24V
Overcharge Protect Delay: 1.5 - 2.5S
Single Cell Battery Over-discharge Protect Voltage: 2.72 - 2.88V
Single Cell Battery Over-discharge Protect Recover Voltage: 2.9 - 3.1V
Over Charge Protective Current: 100A
Over Discharge Protective Current: 100A
Over Discharge Protect Delay: 0.5-1.5S
Temperature Protect: Yes,have Temperature control interface
Disconnect Protect: Yes
Shortage Protect: Yes
Shortage Delay: 100-600 uS
Shortage Protect Recover Mode: Off load release
Contact Discharge Current: 80A
Synopline Discharge Current: 60A
Charging Current: 60A
Balance Function: Yes
Ampere Balance (Current): 60MA
Current Balance Accuracy: 3.355-3.455V
Size: 60 x 42 x 3.9mm

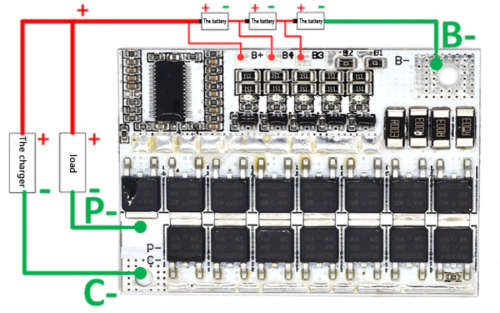

P-: Load negative electrode C-: Charger negative electrode B-: Battery negative electrode

Please note that this module is for 3S Li-ion battery pack and the charging voltage is 12.6V (4.2V x 3 = 12.6V)
