Battery 18650 Li-ion Protection and Balance Board 4s 16.8V 8A LOCAL STOCK

Name: Battery 18650 Li-ion Protection and Balance Board 4s 16.8V 8A **LOCAL STOCK**
SKU: BAT280
Price: 42.00 ZAR
Availability: InStock

5 available / new

Only 5 left – grab it before it’s gone!

R42.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8499

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

BAT280

Bob Shop ID

645246182

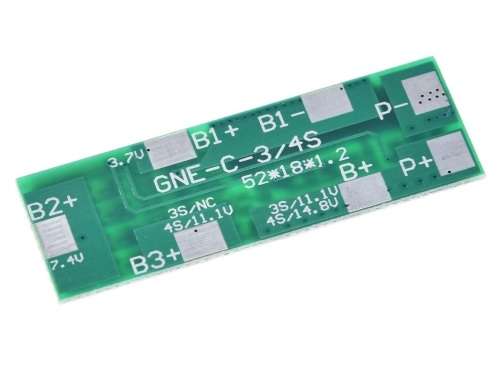

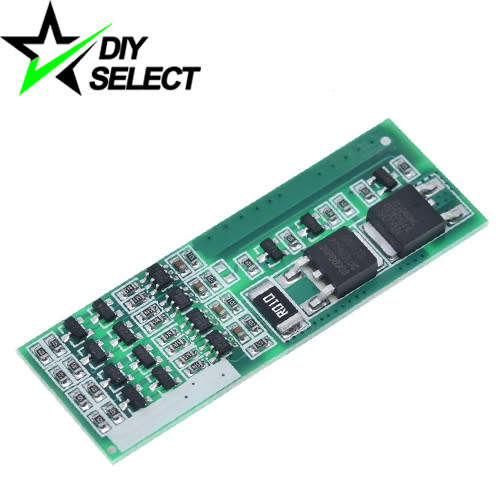

Battery 18650 Protection and Balance Board 4s 16.8V 8A:

Specifications:

Overcharging Protection Voltage: 4.2V
Overdischarge Protection Voltage: 2.5V
Charge Voltage: 12 - 16V DC
Max Charging Current: 8A

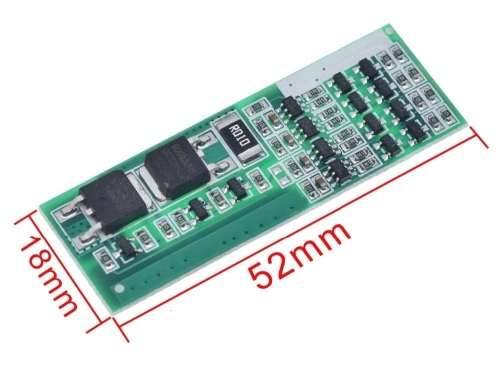

Size: 52 x 18 x 3mm

The Balancer is just an Auxiliary function. The balancing means when the battery is charging, each series battery needs the same voltage, when one cell voltage reaches 4.2V, the first cell voltage will discharge to wait for the other cells to reach the same level.

Soldering Instructions:

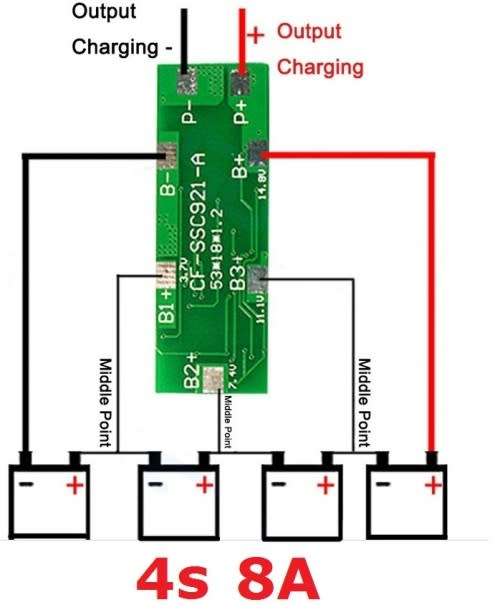

1. First solder B-, then solder B1+, to B2+, then B3+, and finally solder B+
2. When soldering wires to protection board the touch time between soldering iron and protection board should not be longer than 1.5 seconds otherwise you could damage the board
