Battery 18650 Li-ion Protection Board 1S 4A + Cap **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Battery 18650 Protection Board 1s 4A:
Category: 1100312645 / 1104312645 - Battery 18650
Specifications:
Overcharge Voltage: 2.5 - 4.2V
Over Discharge Voltage: 2.5 - 4.2V
Working Current: 4A
Size: 16mm dia

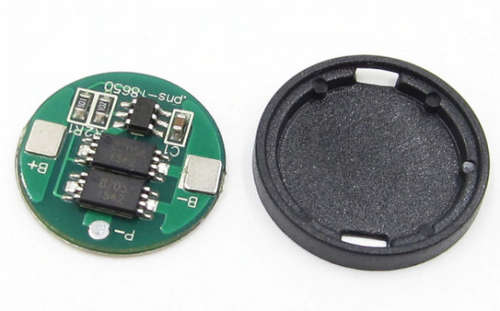

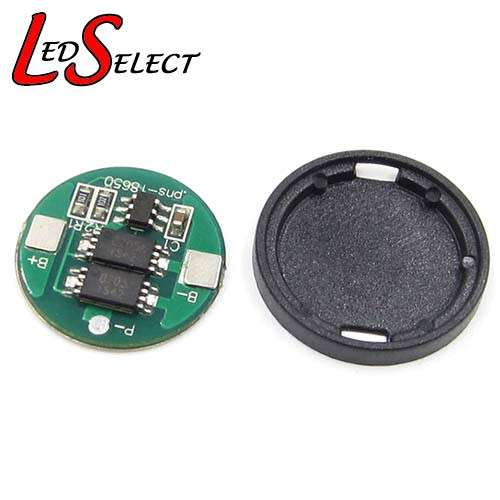

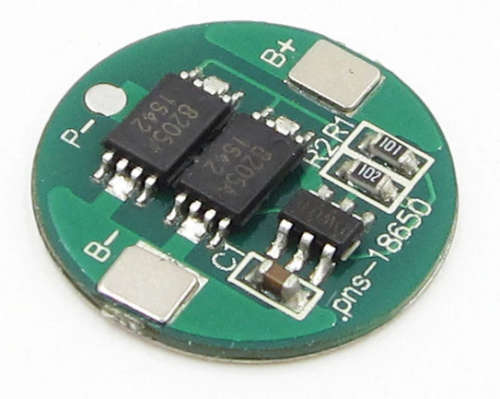

Soldering Point Layout:
B+ connects to the positive battery
B- connect the negative battery.
P- connector/discharger negative electrode (common for charge/discharge)
The back of the board (steel sheet) is P-
- Built-in high-precision voltage detection circuit
- High withstand voltage devices are used for the terminals connected to the charger
- Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit)
- The charge and discharge of the battery can be controlled through the MOS tube
- Wide Operating Temperature Range −40°C to 50°C
- Low current consumption
