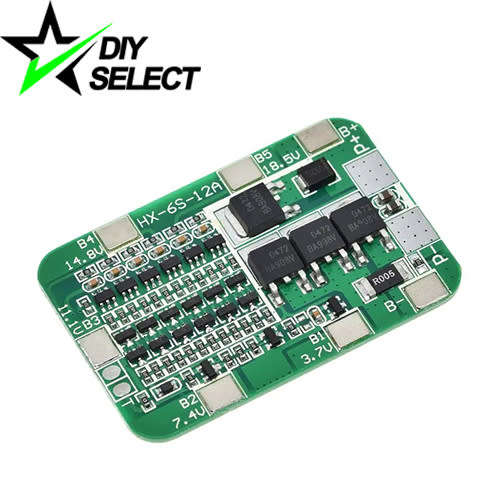

Battery 18650 Li-ion Protection Board 6s 12A **LOCAL STOCK**

Battery 18650 Protection Board 6S 25.2V 12A:

Specifications:

Continuous Current: 12A
Overcharge Protection Voltage: 4.25
Over Discharge Protection Voltage: 2.45 - 2.9V
Charging Voltage: 25.6V
Short Circuit Protection: Yes
Balancing: None

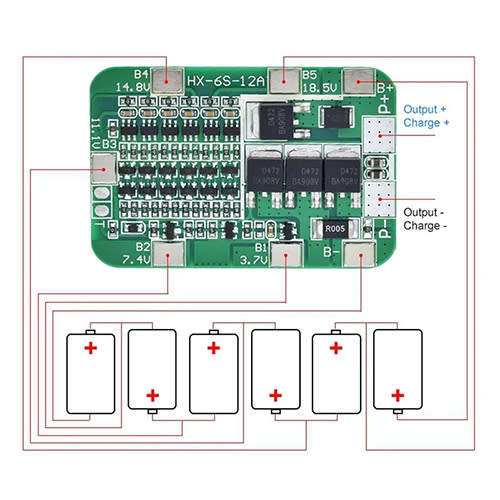

Soldering Order:

1. First solder wires to the P- and P+
2. Then connect the batteries, Weld B, then B1, B2, B3, B4, B5
3. When welding please ensure to contact time with iron is no longer than 1.5 seconds to prevent damage to the board. Using solder flux will help with this.

Not following above method can result in protective plate burning out.

Please note that this module is for 6S Li-ion battery pack and the charging voltage is 25.2V (4.2V x 6 = 25.2V)
