Battery 18650 Protection and Balance Board 4s 10A 16.8V **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Battery 18650 Protection and Balance Board 4s 10A 16.8V:
Category: 1100312645 / 1104312645 - Battery 18650
Specifications:
Over Charging Voltage: 4.25-4.35V
Over Discharge Voltage: 2.3 - 3.0V
Max Working Current: 10A
Peak Working Current: 20A
Size: 35 x 35mm

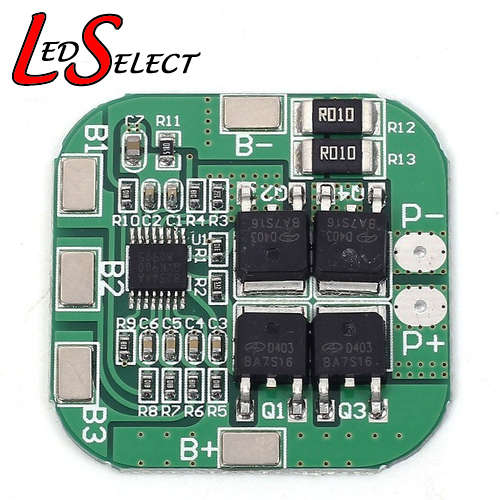

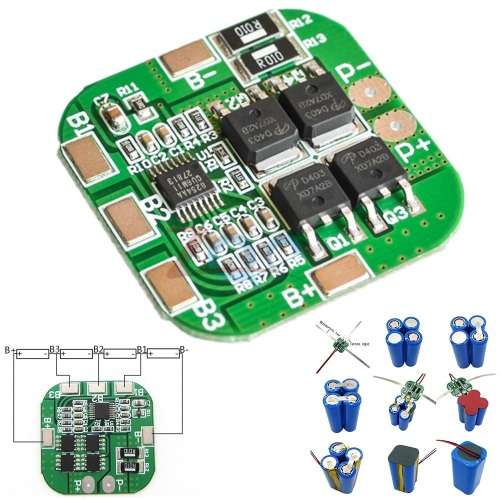

Soldering Point Layout:
B+ connected battery positive;
B1 the connect point between battery 1 and battery 2
B2 connect the point between battery2 and battery 3
B3 Connect the point between battery 3 and battery 4
B- connect to battery negative end
P- + connection charge / discharge positive
P- connection charge / discharge negative
